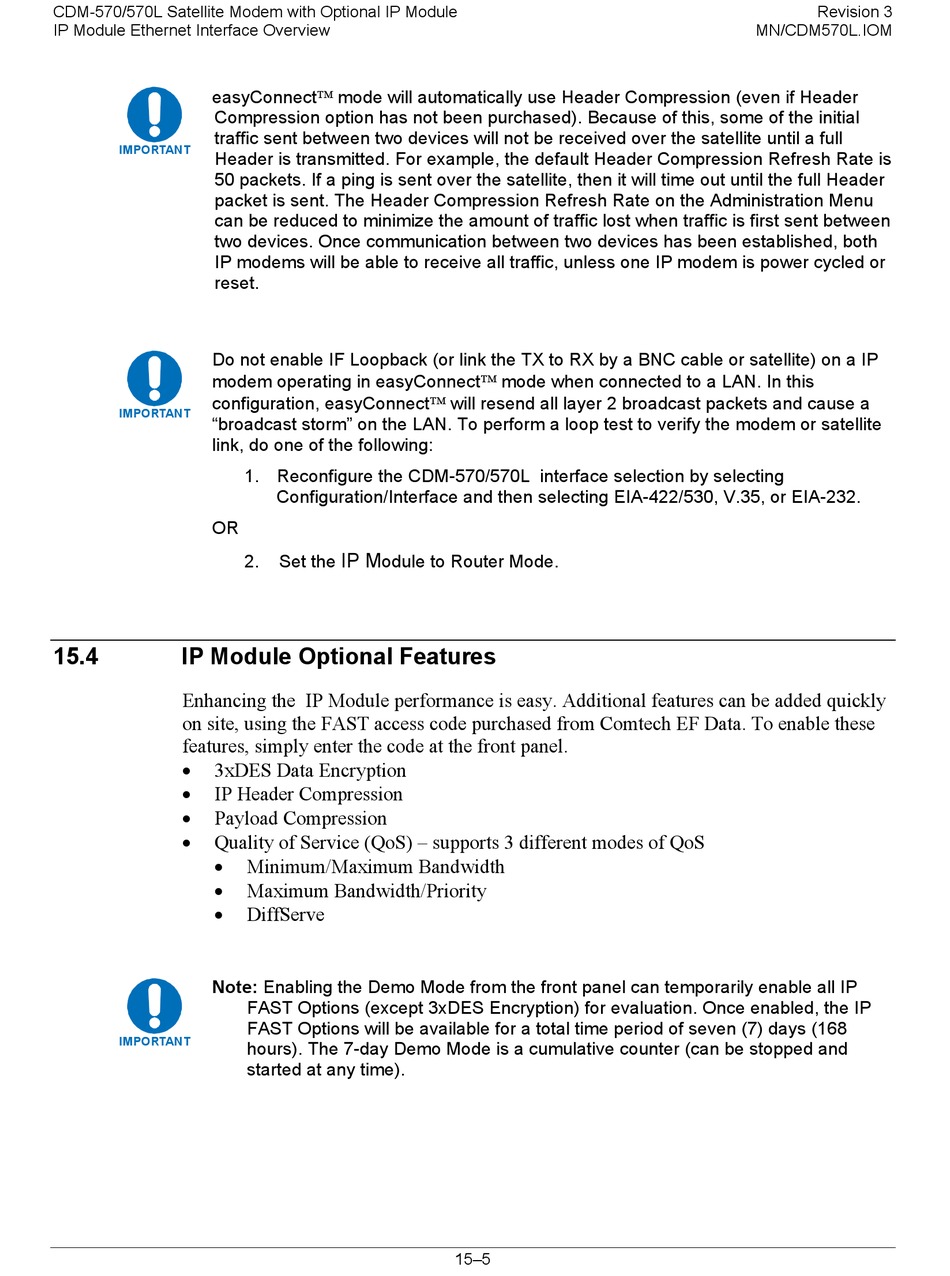

IP Module Ethernet Interface Overview
easyConnect mode will automatically use Header Compression (even if Header
Compression option has not been purchased). Because of this, some of the initial
traffic sent between two devices will not be received over the satellite until a full
IMPORTANT
Header is transmitted. For example, the default Header Compression Refresh Rate is
50 packets. If a ping is sent over the satellite, then it will time out until the full Header
packet is sent. The Header Compression Refresh Rate on the Administration Menu
can be reduced to minimize the amount of traffic lost when traffic is first sent between
two devices. Once communication between two devices has been established, both
IP modems will be able to receive all traffic, unless one IP modem is power cycled or
reset.
Do not enable IF Loopback (or link the TX to RX by a BNC cable or satellite) on a IP
modem operating in easyConnect mode when connected to a LAN. In this
configuration, easyConnect will resend all layer 2 broadcast packets and cause a
IMPORTANT
"broadcast storm" on the LAN. To perform a loop test to verify the modem or satellite
link, do one of the following:
OR
15.4

IP Module Optional Features

Enhancing the IP Module performance is easy. Additional features can be added quickly
on site, using the FAST access code purchased from Comtech EF Data. To enable these
features, simply enter the code at the front panel.
•
3xDES Data Encryption
•
IP Header Compression
•
Payload Compression
•
Quality of Service (QoS) – supports 3 different modes of QoS
•
•
•
Note: Enabling the Demo Mode from the front panel can temporarily enable all IP
IMPORTANT
1. Reconfigure the CDM-570/570L interface selection by selecting
Configuration/Interface and then selecting EIA-422/530, V.35, or EIA-232.
IP M
2. Set the odule to Router Mode.
Minimum/Maximum Bandwidth
Maximum Bandwidth/Priority
DiffServe
FAST Options (except 3xDES Encryption) for evaluation. Once enabled, the IP
FAST Options will be available for a total time period of seven (7) days (168
hours). The 7-day Demo Mode is a cumulative counter (can be stopped and
started at any time).
15–5
Revision 3
