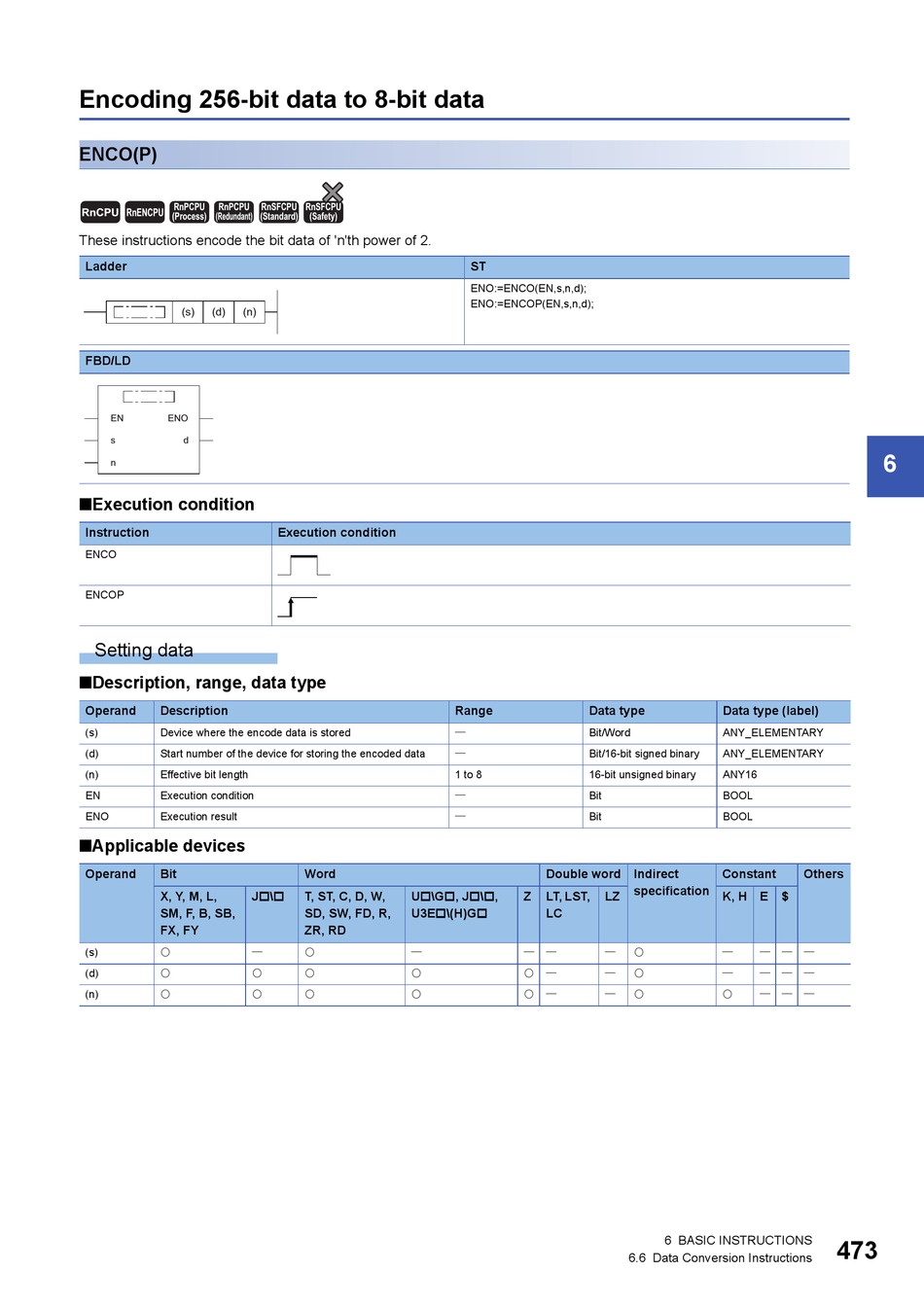

Encoding 256-bit data to 8-bit data

ENCO(P)
RnPCPU RnPCPU
RnCPU RnENCPU
(Process) (Redundant)
These instructions encode the bit data of 'n'th power of 2.
Ladder
(s) (d) (n)
FBD/LD
EN ENO
s d
n
■Execution condition
Instruction
ENCO
ENCOP
Setting data
■Description, range, data type
Operand Description
(s) Device where the encode data is stored
(d) Start number of the device for storing the encoded data
(n) Effective bit length
EN Execution condition
ENO Execution result
■Applicable devices
Operand Bit
X, Y, M, L, J\
SM, F, B, SB,
FX, FY
 
(s)
 
(d)
 
(n)
RnSFCPU RnSFCPU
(Standard) (Safety)
Execution condition
Word
T, ST, C, D, W, U\G, J\,
SD, SW, FD, R, U3E\(H)G
ZR, RD
 
 
 
ST
ENO:=ENCO(EN,s,n,d);
ENO:=ENCOP(EN,s,n,d);
Range Data type

Bit/Word
 Bit/16-bit signed binary
1 to 8 16-bit unsigned binary
 Bit

Bit
Double word Indirect
Z LT, LST, LZ
LC
  
  
  
6.6 Data Conversion Instructions
Data type (label)
ANY_ELEMENTARY
ANY_ELEMENTARY
ANY16
BOOL
BOOL
Constant Others
specification
K, H E $
    
    
    
