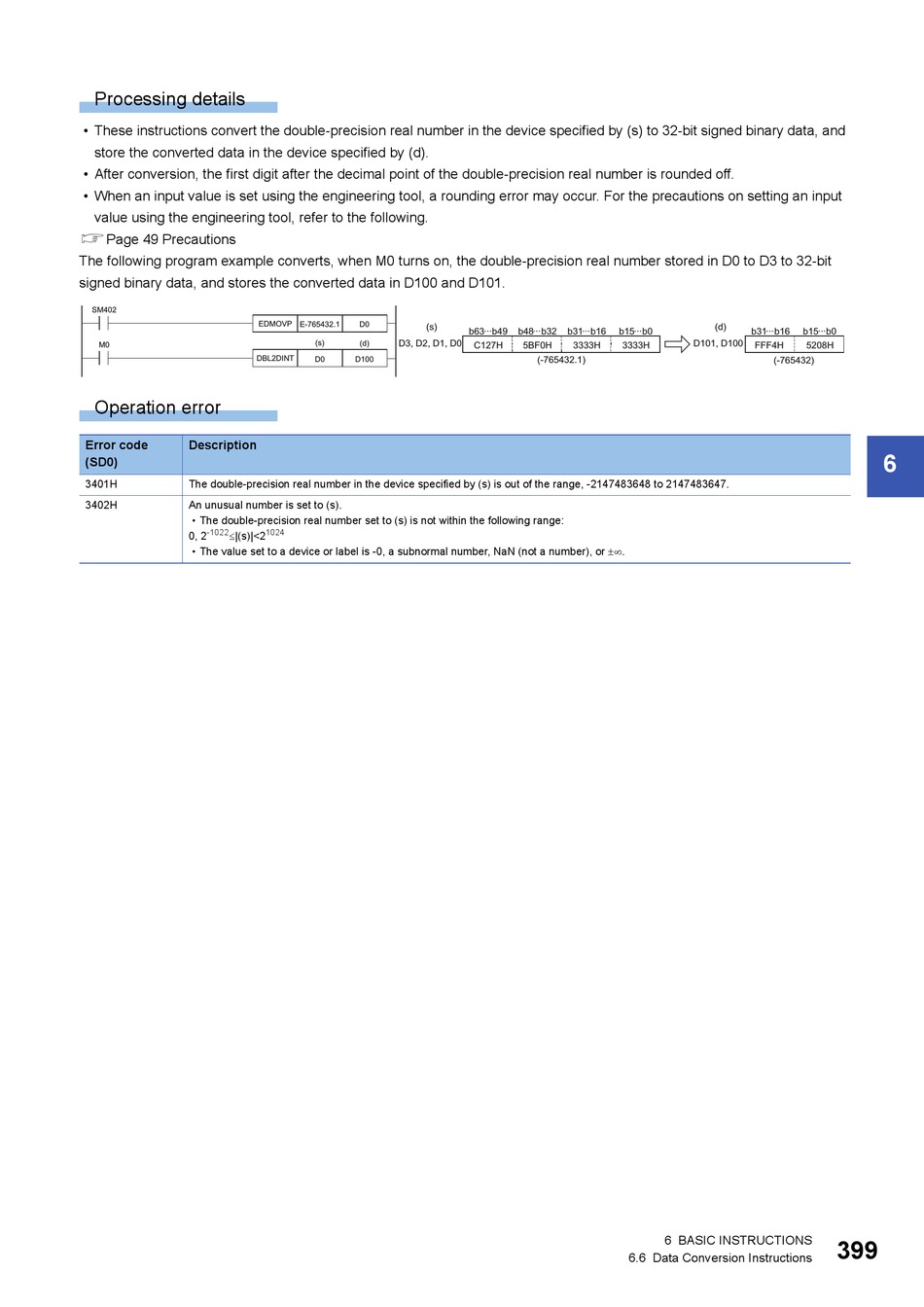

Processing details
• These instructions convert the double-precision real number in the device specified by (s) to 32-bit signed binary data, and
store the converted data in the device specified by (d).
• After conversion, the first digit after the decimal point of the double-precision real number is rounded off.
• When an input value is set using the engineering tool, a rounding error may occur. For the precautions on setting an input
value using the engineering tool, refer to the following.
Page 49 Precautions
The following program example converts, when M0 turns on, the double-precision real number stored in D0 to D3 to 32-bit
signed binary data, and stores the converted data in D100 and D101.
SM402
M0
Operation error
Error code Description
(SD0)
3401H The double-precision real number in the device specified by (s) is out of the range, -2147483648 to 2147483647.
3402H An unusual number is set to (s).
• The double-precision real number set to (s) is not within the following range:
-1022
|(s)|<2
0, 2
• The value set to a device or label is -0, a subnormal number, NaN (not a number), or .
EDMOVP E-765432.1 D0
(s)
(s) D3, D2, D1, D0
(d)
DBL2DINT
D0 D100
1024
b63 b49 ∙∙∙ b48 b32 ∙∙∙ b31 b16 ∙∙∙ b15 b0 ∙∙∙
C127H 5BF0H 3333H 3333H
(-765432.1)
6.6 Data Conversion Instructions
(d)
b31 b16 ∙∙∙ b15 b0 ∙∙∙
D101, D100
FFF4H 5208H
(-765432)
