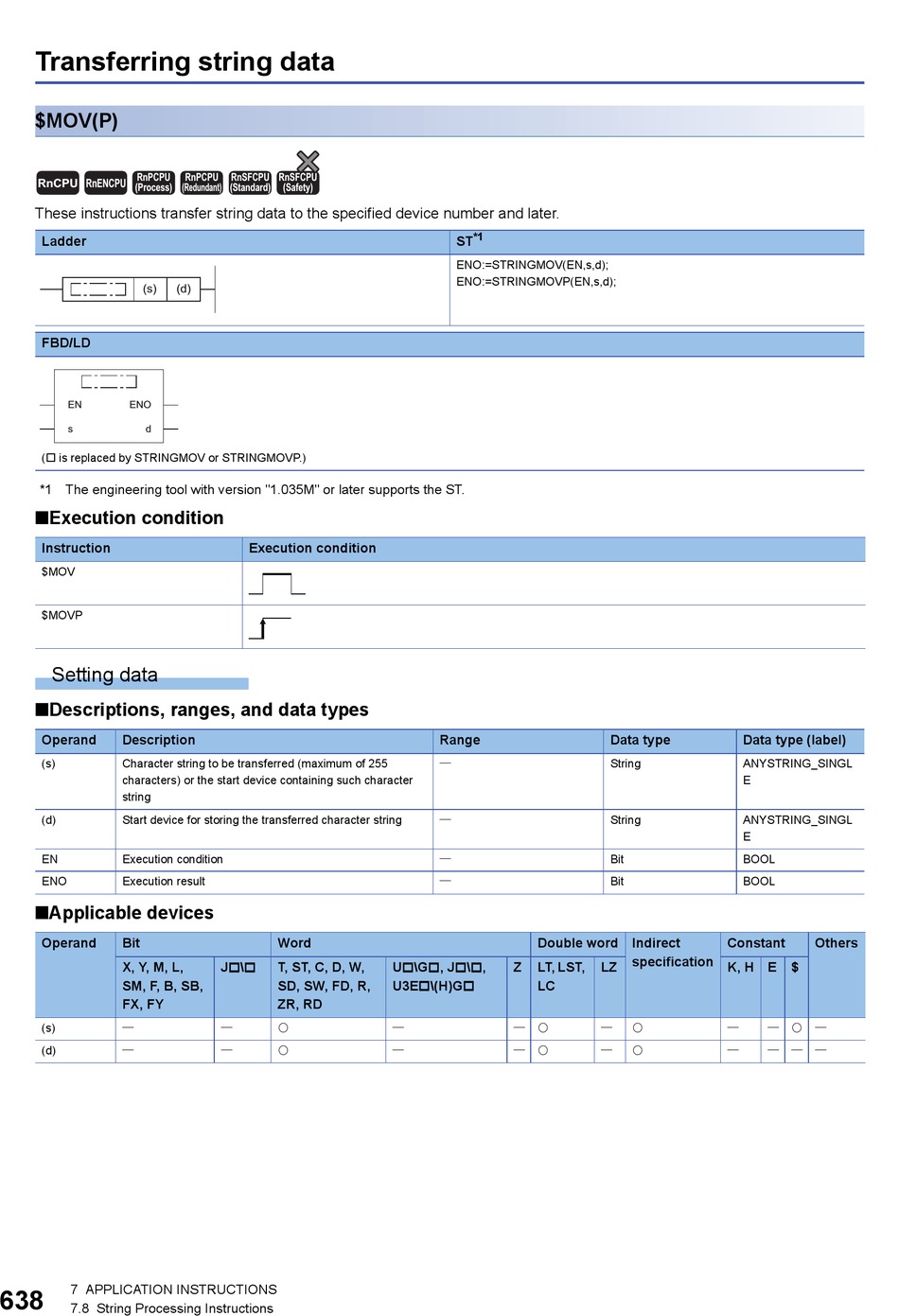

Transferring string data

$MOV(P)
RnPCPU
RnCPU RnENCPU
(Process)
These instructions transfer string data to the specified device number and later.
Ladder
(s)
FBD/LD
EN ENO
s d
( is replaced by STRINGMOV or STRINGMOVP.)
*1 The engineering tool with version "1.035M" or later supports the ST.
■Execution condition
Instruction
$MOV
$MOVP
Setting data
■Descriptions, ranges, and data types
Operand Description
(s) Character string to be transferred (maximum of 255
characters) or the start device containing such character
string
(d) Start device for storing the transferred character string
EN Execution condition
ENO Execution result
■Applicable devices
Operand Bit
X, Y, M, L,
SM, F, B, SB,
FX, FY

(s)

(d)
7 APPLICATION INSTRUCTIONS
638
7.8 String Processing Instructions
RnPCPU RnSFCPU RnSFCPU
(Redundant) (Standard) (Safety)
(d)
Execution condition
Word
J\ T, ST, C, D, W,
SD, SW, FD, R,
ZR, RD
 
 
*1
ST
ENO:=STRINGMOV(EN,s,d);
ENO:=STRINGMOVP(EN,s,d);
Range




Double word Indirect
U\G, J\, Z LT, LST,
U3E\(H)G LC
  
  
Data type Data type (label)
String ANYSTRING_SINGL
E
String ANYSTRING_SINGL
E
Bit BOOL
Bit BOOL
Constant
specification
LZ K, H E
   
   
Others
$
 
 
