Chapter 3: Understanding the User Interface
Operator Panel
26

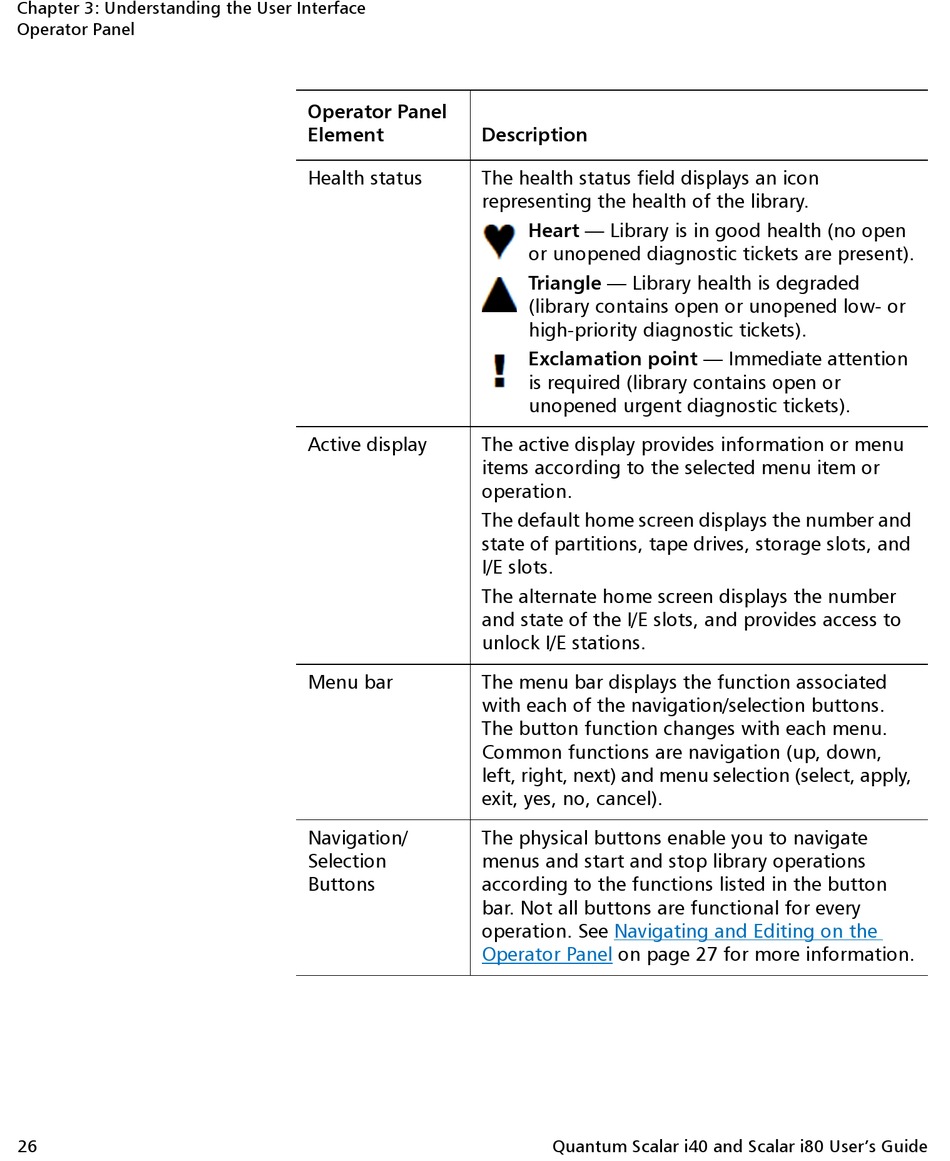

Operator Panel
Element Description
Health status The health status field displays an icon
representing the health of the library.
Active display The active display provides information or menu
items according to the selected menu item or
operation.
The default home screen displays the number and
state of partitions, tape drives, storage slots, and 
I/E slots.
The alternate home screen displays the number
and state of the I/E slots, and provides access to
unlock I/E stations.
Menu bar The menu bar displays the function associated
with each of the navigation/selection buttons.
The button function changes with each menu.
Common functions are navigation (up, down,
left, right, next) and menu selection (select, apply,
exit, yes, no, cancel).
Navigation/ The physical buttons enable you to navigate
Selection menus and start and stop library operations
Buttons according to the functions listed in the button
bar. Not all buttons are functional for every
operation. See
Operator Panel
Heart — Library is in good health (no open
or unopened diagnostic tickets are present).
Triangle — Library health is degraded
(library contains open or unopened low- or
high-priority diagnostic tickets).
Exclamation point — Immediate attention
is required (library contains open or
unopened urgent diagnostic tickets).
Navigating and Editing on the
on page 27 for more information.
Quantum Scalar i40 and Scalar i80 User's Guide
