System Control Board
LEDs

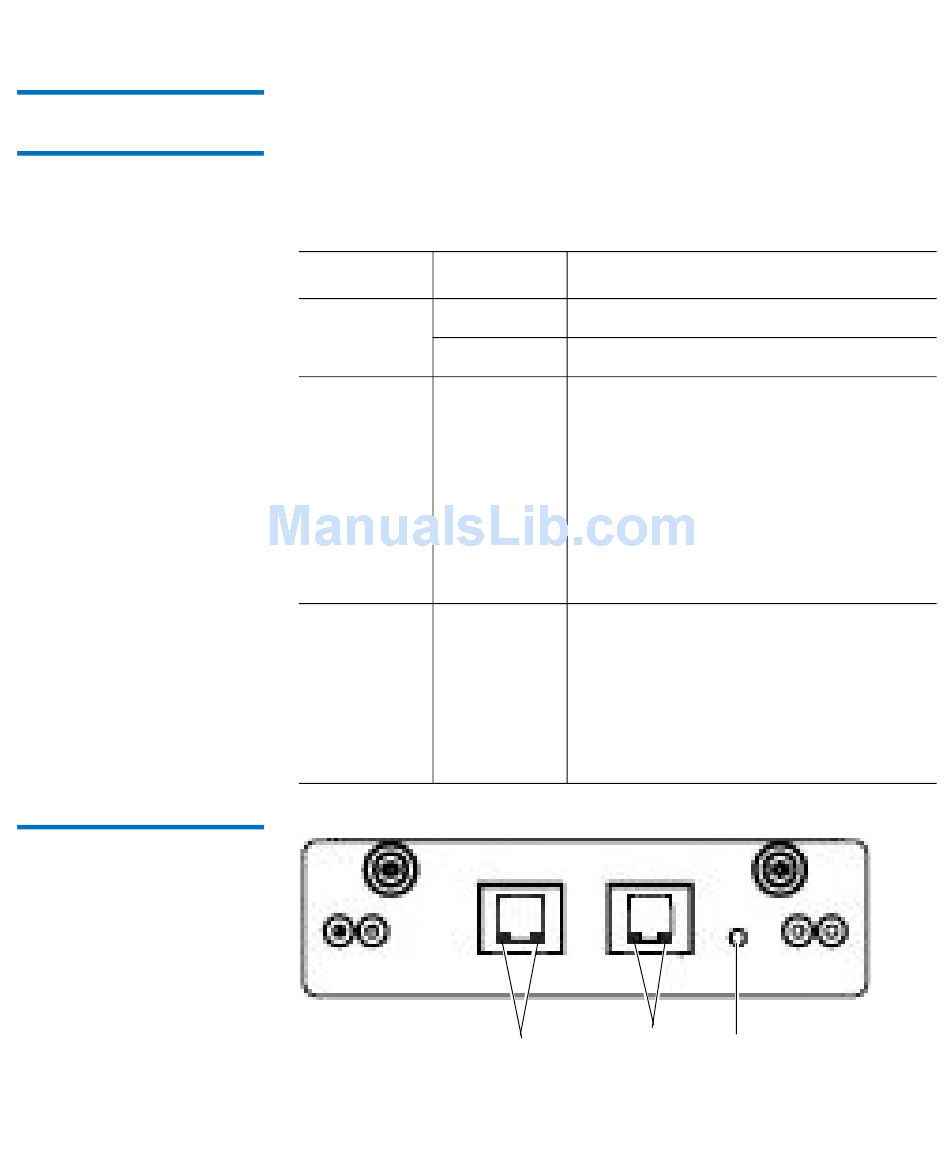

Figure 48 System Control
Board LEDs
Quantum Scalar i40 and Scalar i80 User's Guide
The SCB has one health status LED. In addition, each Ethernet port
contains two LEDs, a green "activity indicator" and an amber "link
indicator." The Ethernet port closest to the center of the library is for
customer use. The Ethernet port farthest from the center of the library is
for service use only.
LED Color
SCB Health Green
Status LED
Red
Ethernet Green
Port Green
LED (Activity
Indicator)
Ethernet Amber
Port Amber
LED (Link
Indicator)
Customer Ethernet
Indicates
Healthy and operational.
Failure. Replacement required.
This LED illuminates when actual
"traffic" is being sent over the Ethernet
cable. The LED may be blinking or on
solid; it blinks more rapidly the more
traffic is being sent over the
connection. When the LED is lit,
communications are in process and
when the LED is off no communication
is occurring.
This LED illuminates solidly when a
"link" is established, and will be off
when no "link" is present. "Link"
means an Ethernet cable is connected
and the other end of the cable is also
connected to another powered-up and
operational Ethernet device.
Service Ethernet
port LEDs
port LEDs
Chapter 10: Troubleshooting
Interpreting LEDs
Health status LED
