Power supply replacement

Figure 1 Single Power Supply

System

Scalar, DXi, StorageCare, StorNext, GoProtect, and Vision are registered trademarks of Quantum Corporation and its affiliates

in the United States and/or other countries. All other trademarks are the property of their respective owners. Quantum

specifications are subject to change.

6-66559-02 Rev C, February 2014

Scalar i40 and Scalar i80:

Power Supply Replacement

The Scalar

i40 contains one power supply. The Scalar i80 can have up to two

power supplies for redundancy purposes.

An unused power supply slot must be covered by a filler plate.

Scalar i40, single power

supply

Scalar i80, single power

supply installed in top slot

Filler plate covers empty

power supply slot

*6-66559-02*

Table of Contents

Need help?

Do you have a question about the Scalar i40 and is the answer not in the manual?

Page 1 © 2014 Quantum Corporation. All rights reserved. Quantum, the Quantum logo, DLT, DLTtape, the DLTtape logo, SuperLoader, Scalar, DXi, StorageCare, StorNext, GoProtect, and Vision are registered trademarks of Quantum Corporation and its affiliates in the United States and/or other countries. All other trademarks are the property of their respective owners. Quantum specifications are subject to change.
Page 2 Quantum Scalar i40 and Scalar i80:Power Supply Replacement 6-66559-02 Rev C February 2014 Figure 2 Redundant Power Supply System Scalar i80, dual power supplies for redundancy To replace the power supply, refer to the following sections: • Removing a Power Supply on page 2 •...
Page 3 4 Using the handle, slowly pull the power supply straight out of the library. Replacing a Power Supply Note: If you have a single power supply in a Scalar i80, Quantum recommends that you install it in the upper slot, to provide better...
Page 4 Quantum Scalar i40 and Scalar i80:Power Supply Replacement 6-66559-02 Rev C February 2014 status of the power supply’s LED: the power supply LED should turn green immediately to indicate the library is turned on. Replacing a Power Supply with a Filler Plate These instructions explain how to replace a power supply with a filler plate.

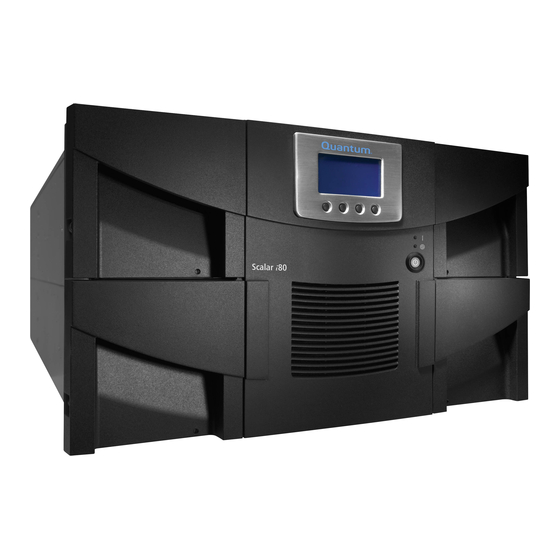

Scalar i80
