Chapter 8: Getting Information About the Library
Viewing the Location of the Robot
218
Note: The operator panel does not update the left side graphical
display until the motion is complete (success or failed)
On the operator panel, do the following:
Note: If you are viewing the alternate home screen, select Menu to
return to default home screen.

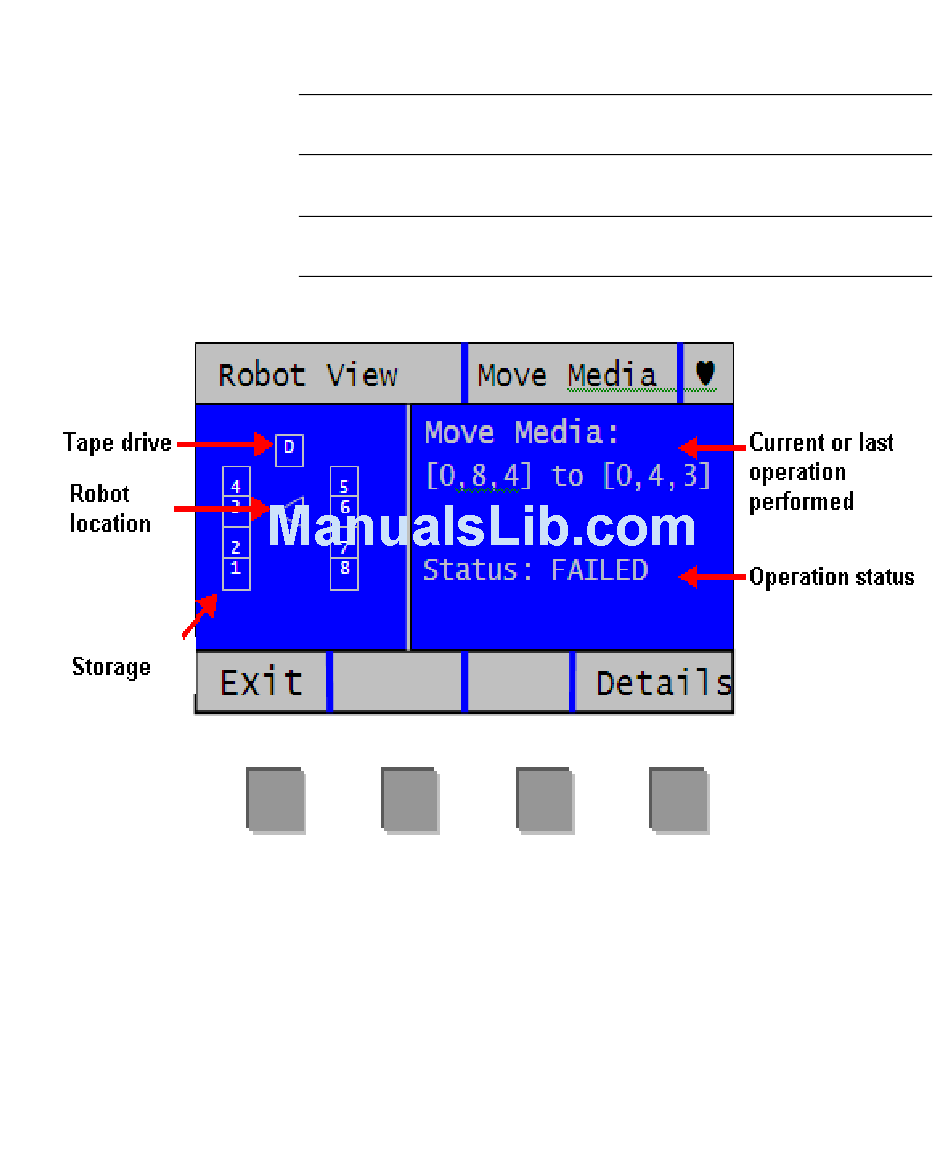

1 Select Tools > Robotic View.
The left graphical section depicts the top-down current location of
the robot on the X axis.
• The numbers indicate the storage column.
• The 'D' designates the tape drive column.
• The triangle represents the robot. If it is filled in, then the robot
contains the media, otherwise the robot is empty. The direction
the triangle points to indicates its location.
The right information section provides the following:
