Chapter 3 Setting Up a Design
You cannot assign a net to more than one group. Therefore, nets that are already
Note
assigned to another bus group do not appear in the Assign Nets list.
NI Ultiboard User Manual
7. Click checkboxes beside the desired nets in the Assign Nets list and
click Apply to add them to the group.
8. Click OK to close the Edit Groups dialog box.
Complete the following steps to edit a bus group:

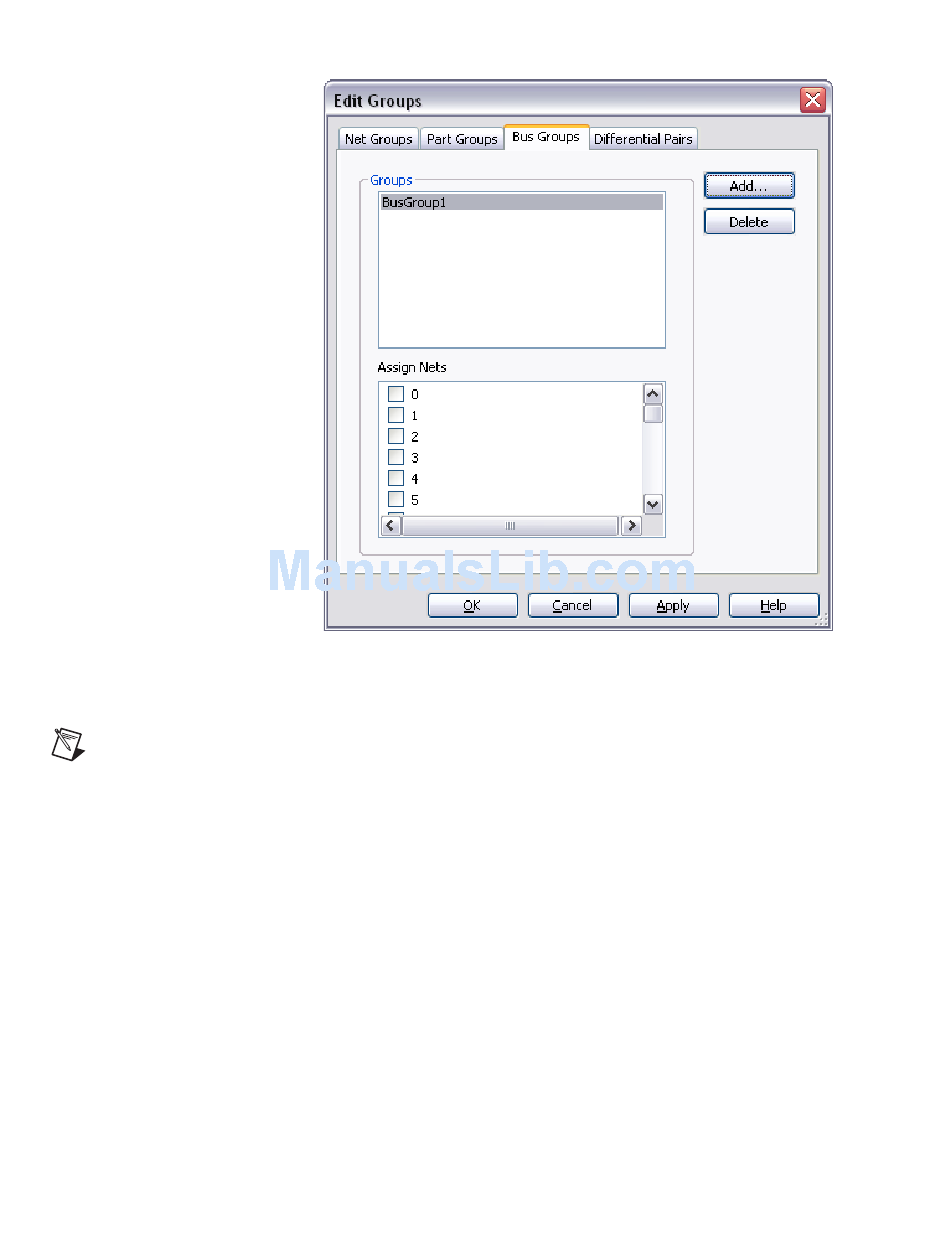

1. Select Tools»Group Editor to display the Edit Groups dialog box.
2. Select the Bus Groups tab.
3. Highlight the desired group in the Groups list.
4. Change the net assignments as desired and click Apply.
Complete the following steps to delete a group:
1. Select Tools»Group Editor to display the Edit Groups dialog box.
2. Select the Bus Groups tab.
3. Highlight the desired group in the Groups list and click Delete.
