Enter coordinate dialog box

If you do not have a part selected and you press the * key or <Shift-8>, the dialog is
Note
populated with the coordinates of the mouse. Click OK to center the screen to these
coordinates. If you have a part selected when you press the * key or <Shift-8>, the dialog
is still populated with the coordinates of the mouse. Click OK to move the selected part to
that position.
© National Instruments Corporation

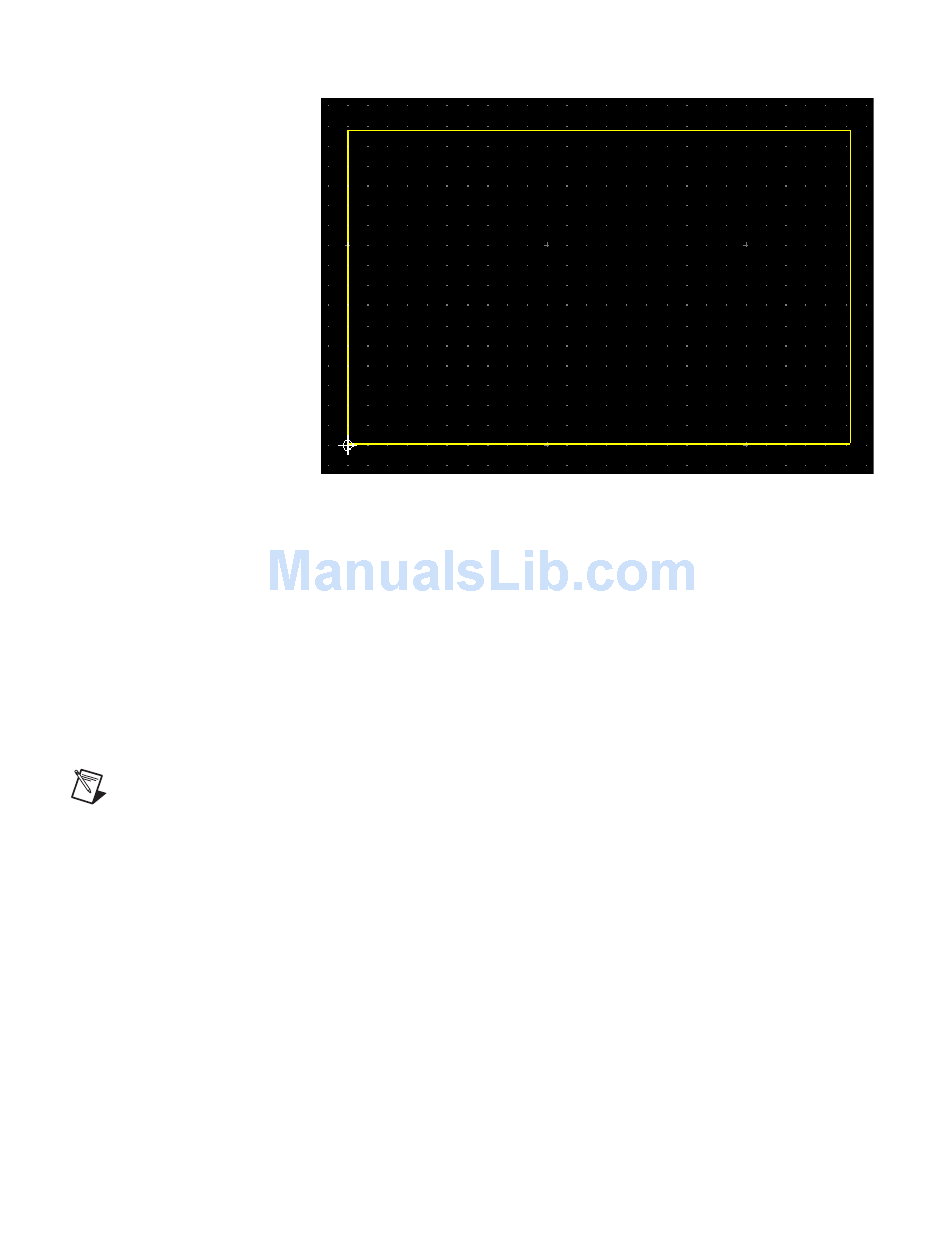

Complete the following steps to set the reference point at precise X, Y
coordinates:
1. Press the asterisk key (*) or <Shift-8> to display the Enter coordinate
dialog box.
2. Enter the X and Y coordinates and the desired units of measure.
3. Optionally, select Snap to grid to have the reference point snap to the
closest grid on the workspace.
3-9
