Chapter 6 PCB Calculators

Centered Stripline Trace Calculations

NI Ultiboard User Manual
Embedded Microstrip Equations
The equations used to perform the embedded microstrip calculations are:
Z0 = 56*ln(5.98*H/(0.8*W+T))/sqrt(Er*(1-exp(-1.55*H1/H)))
Tpd = 84.66667*sqrt(Er*(1-exp(-1.55*H1/H)))
C0 = Tpd/Z0
L0 = C0*Z0*Z0
Complete the following steps to perform centered stripline trace
calculations:
1. Select Tools»PCB Transmission Line Calculator.
2. Select Centered Stripline in the Type drop-down list.
3. In the Input Data area, edit the following fields as desired:
• Input Length Unit—Select mils or millimeters.

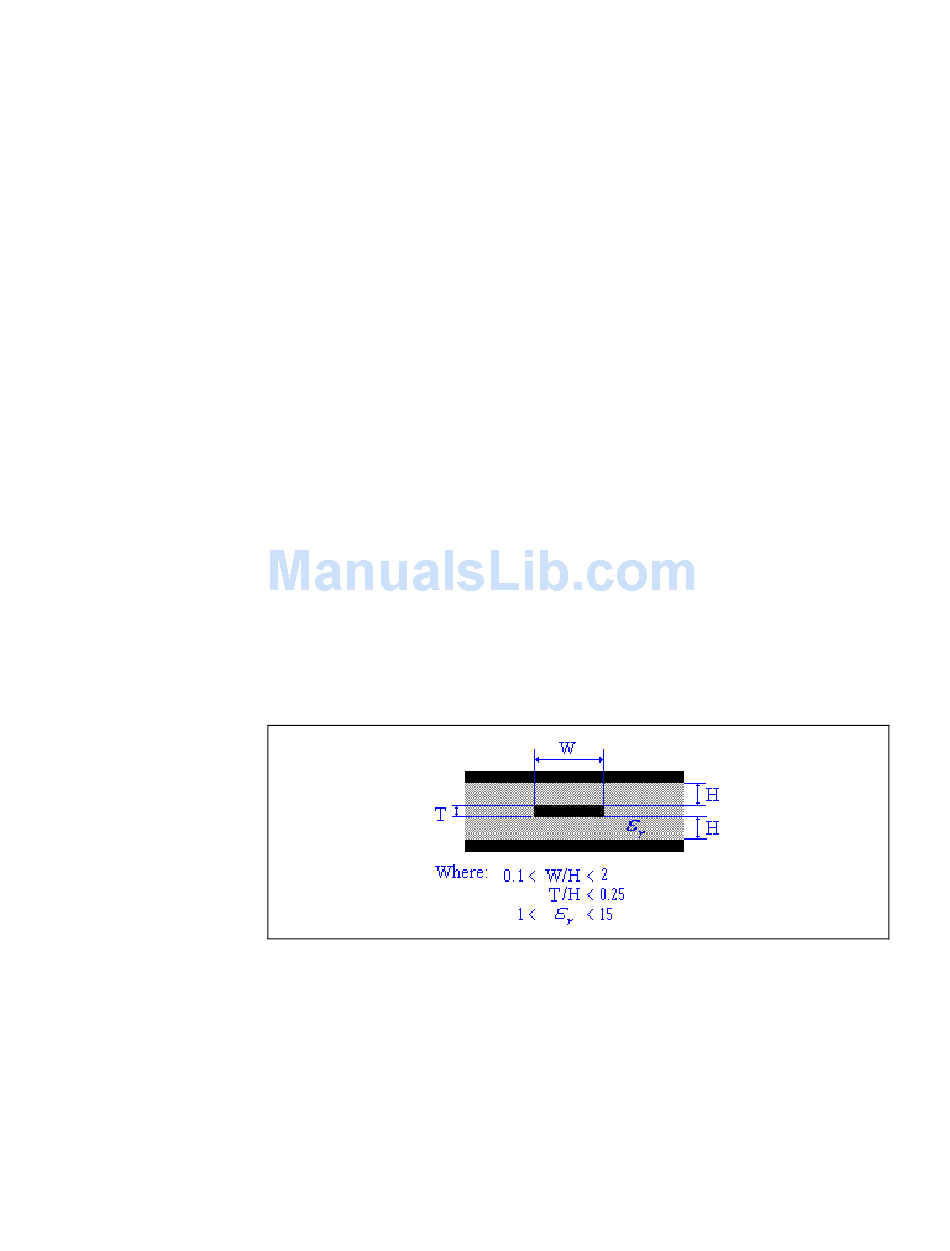

• Dielectric Thickness (H)—Refer to the figure below.
• Trace Thickness (T)—Refer to the figure below.
• Trace Width (W)—Refer to the figure below.
• Relative Permittivity (epsilon r)—Refer to the figure below.
4. Click Calculate. Results of the calculation appear in the Calculation
Results area. They also appear in the Results tab of the Spreadsheet
View.
5. Click Close to close the PCB Transmission Line Calculator.
6-4 ni.com
