Note
There is no deletion confirmation. To cancel the deletion before you click Delete,
click Close.
© National Instruments Corporation
net, then the pin below the reference point will become the source.

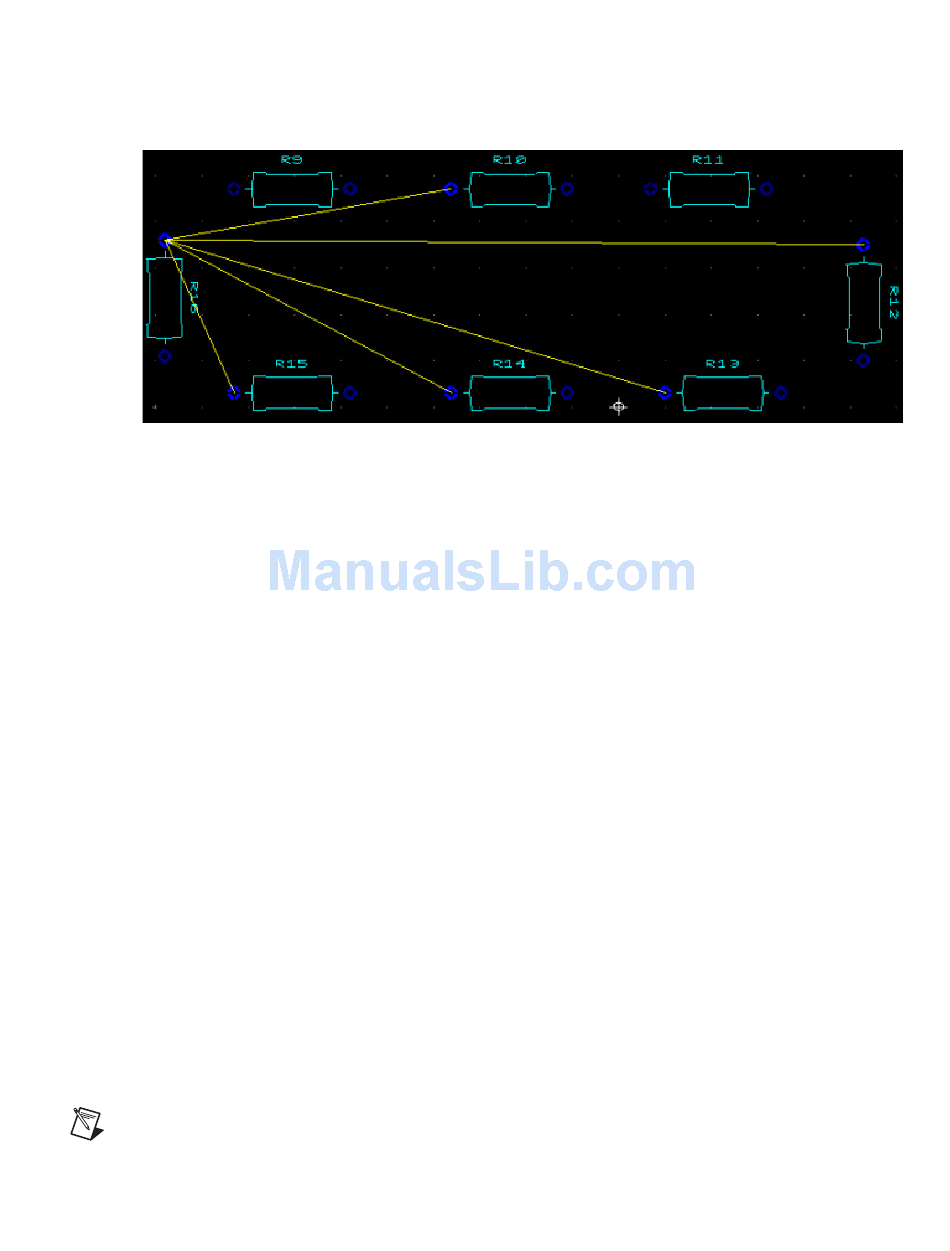

Refer to the figure below for an example.
Renaming a Net
Complete the following steps to rename a net:
1.
Select Tools»Netlist Editor and select the desired net from the Net
drop-down list in the Net edit dialog box.
2.
Click Rename in the Net edit dialog box. You are prompted for the
new net name.
3.
Type a name for the net.
4.
Click OK to save the new name.
The new net name appears in the Net drop-down list in the Net edit
dialog box, and in the Nets tab in the Spreadsheet View.
Deleting a Net
Complete the following steps to delete a net:
1.
Select Tools»Netlist Editor and click Delete in the Net edit dialog
box. The Select the net to delete dialog box appears.
2.
Select the net to be deleted.
3.
Click Delete to delete the net. The Select the net to delete dialog box
closes, and the net no longer appears in the Net drop-down list of the
Net edit dialog box, or the Nets tab in the Spreadsheet View. The net
is also removed from the board, but while the net disappears, the traces
stay on the board.
Chapter 5
5-25
Working with Traces and Copper
NI Ultiboard User Manual
