© National Instruments Corporation
7.

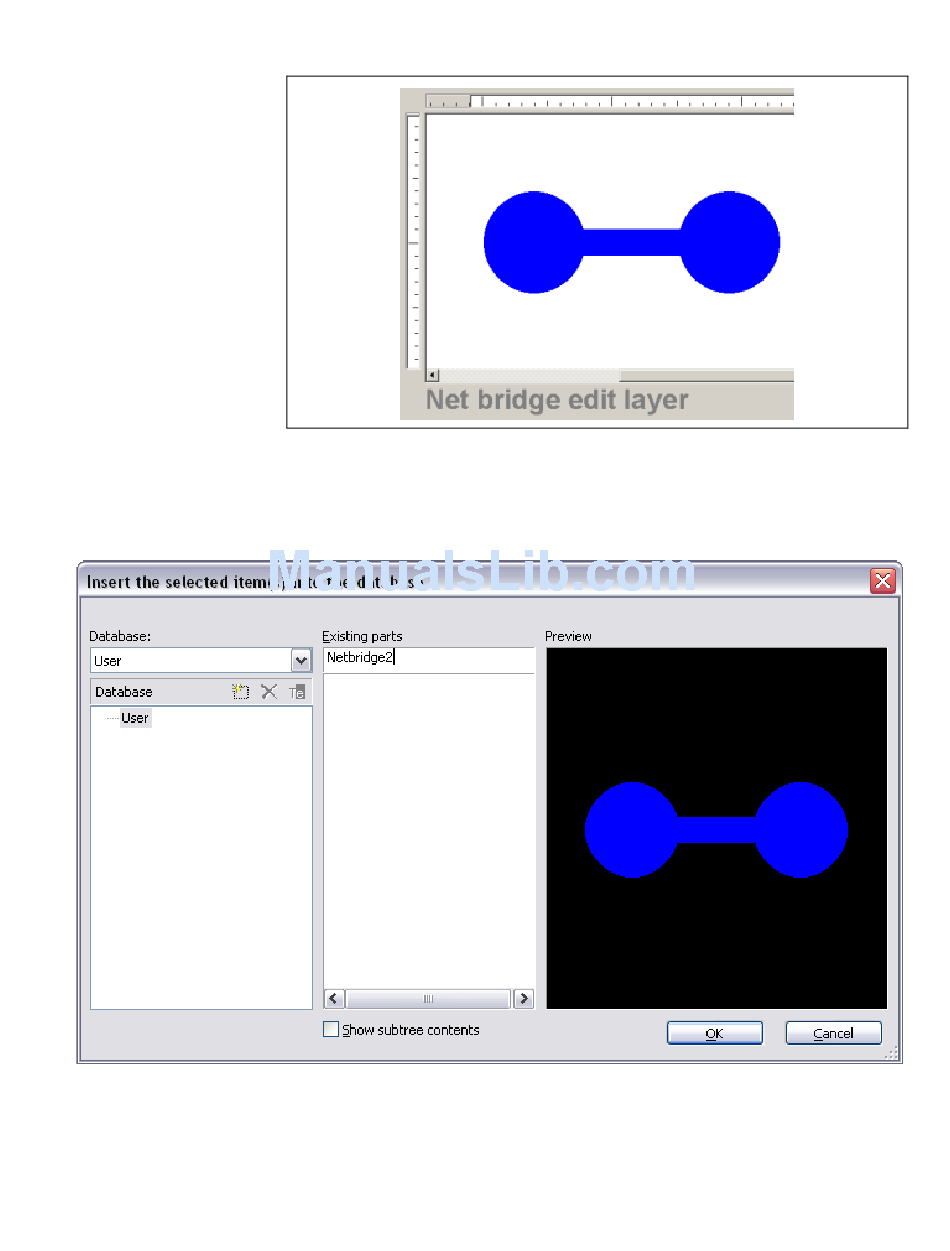

Close the Net Bridge Edit Layer, and when prompted, Click Save.
8.
The following dialog box appears. Enter the name for the new
netbridge (Netbridge2 in the following example):
9.
Click OK.
Chapter 5
5-31
Working with Traces and Copper
NI Ultiboard User Manual
