Internal View options are set in the 3D Options tab of the Preferences dialog box.
Note
Refer to the

Exporting to 3D DXF

© National Instruments Corporation

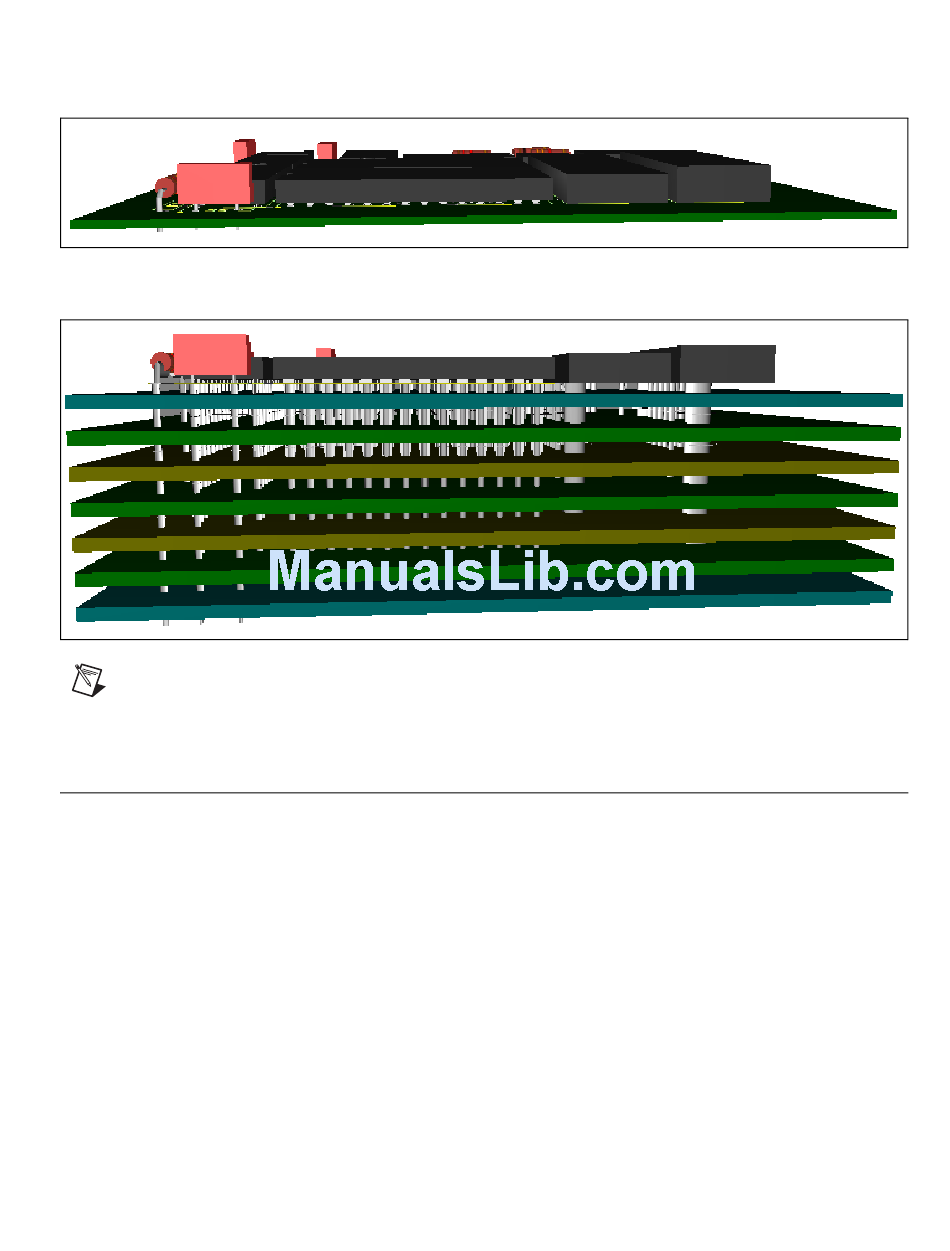

The figure below shows the normal 3D view of a sample PCB.
The figure below shows the internal 3D view of the same PCB.
3D Options Tab section of Chapter 1,
Ultiboard can export a 3D DXF file for your design.
Complete the following steps to export a design's 3D properties:
1. Select File»Export to display the Export dialog box.
2. Highlight 3D DXF and click Properties. The DXF export settings
dialog box appears.
3. Select the desired parameters to export and click OK. You are returned
to the Export dialog box.
4. Click Export. A standard Windows Save dialog appears.
5. Select the desired filepath and enter the 3D DXF filename (the file
extension must be
6. Click Save.
User Interface, for more information.
).
.DXF
