Use <Ctrl-Shift-W/N> to widen/narrow the trace. You can also change the trace width
Tip
during routing by typing the desired value in the Draw Settings toolbar. Otherwise, trace
size is determined from the net settings. If you attempt to change to a net width that is too
big (DRC errors appear), the trace width will not change.
Placing a Bus
© National Instruments Corporation

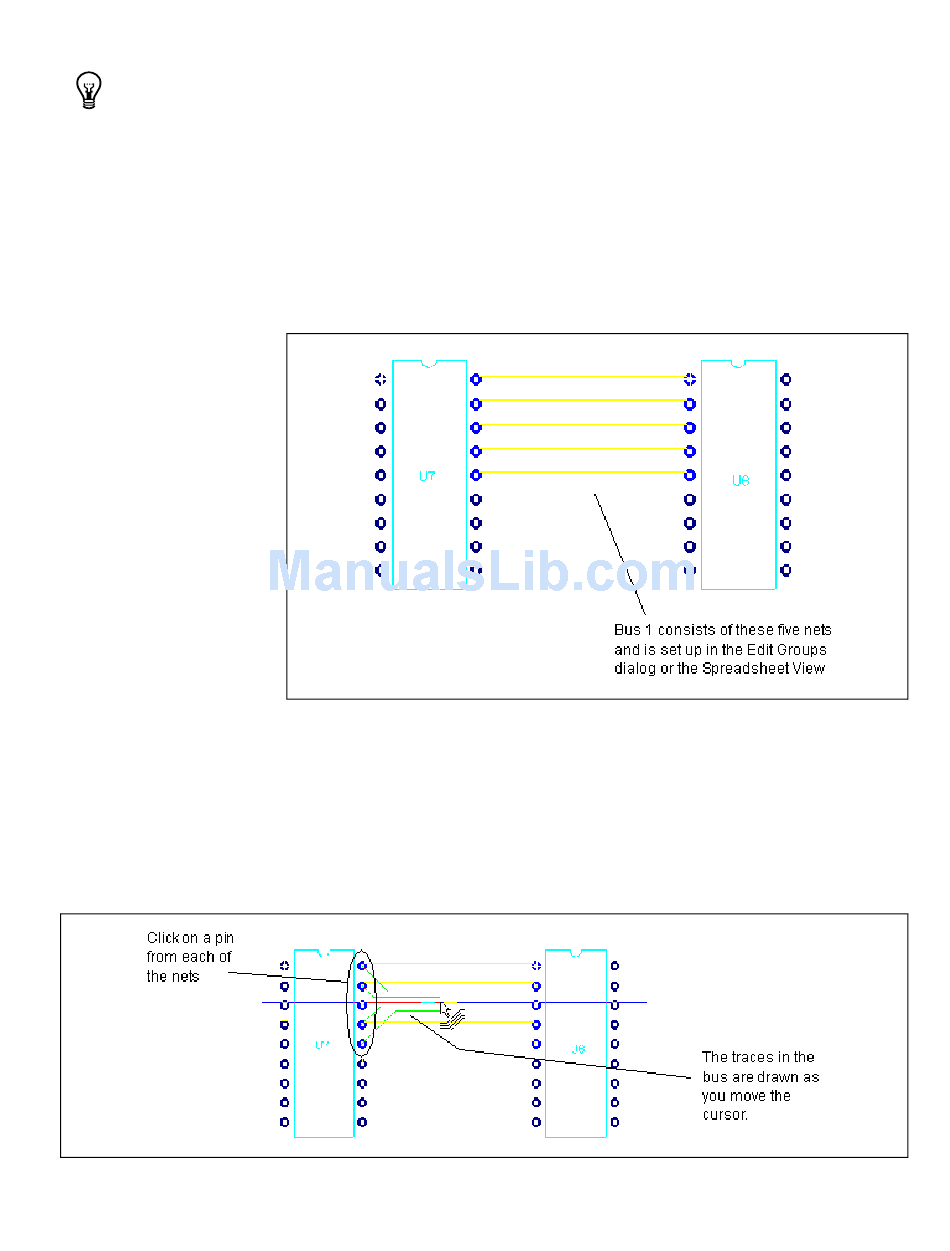

Use to connect multiple traces between multi-pinned devices such as ICs.
The procedure below uses the following example.
Complete the following steps to place the copper for the bus in the above
example:
1.
Be sure that you have not selected any pins.
2.
Select Place»Bus. The cursor changes to a bus symbol. Click on a pin
on each of the nets that you wish to place in the bus and then move the
cursor towards the target IC.
Chapter 5
5-5
Working with Traces and Copper
NI Ultiboard User Manual
