Chapter 3 Setting Up a Design
Note You cannot assign a part to more than one group. Therefore, parts that are already
assigned to another group do not appear in the Assign Nets list.
When adding parts to a Part Group, you can select parts on the workspace and then
Tip
click Add Selected in the Part Groups tab—the selected parts are added to the group.
NI Ultiboard User Manual
6. Click OK to return to the Part Groups tab. The newly created group
appears in the Groups list.

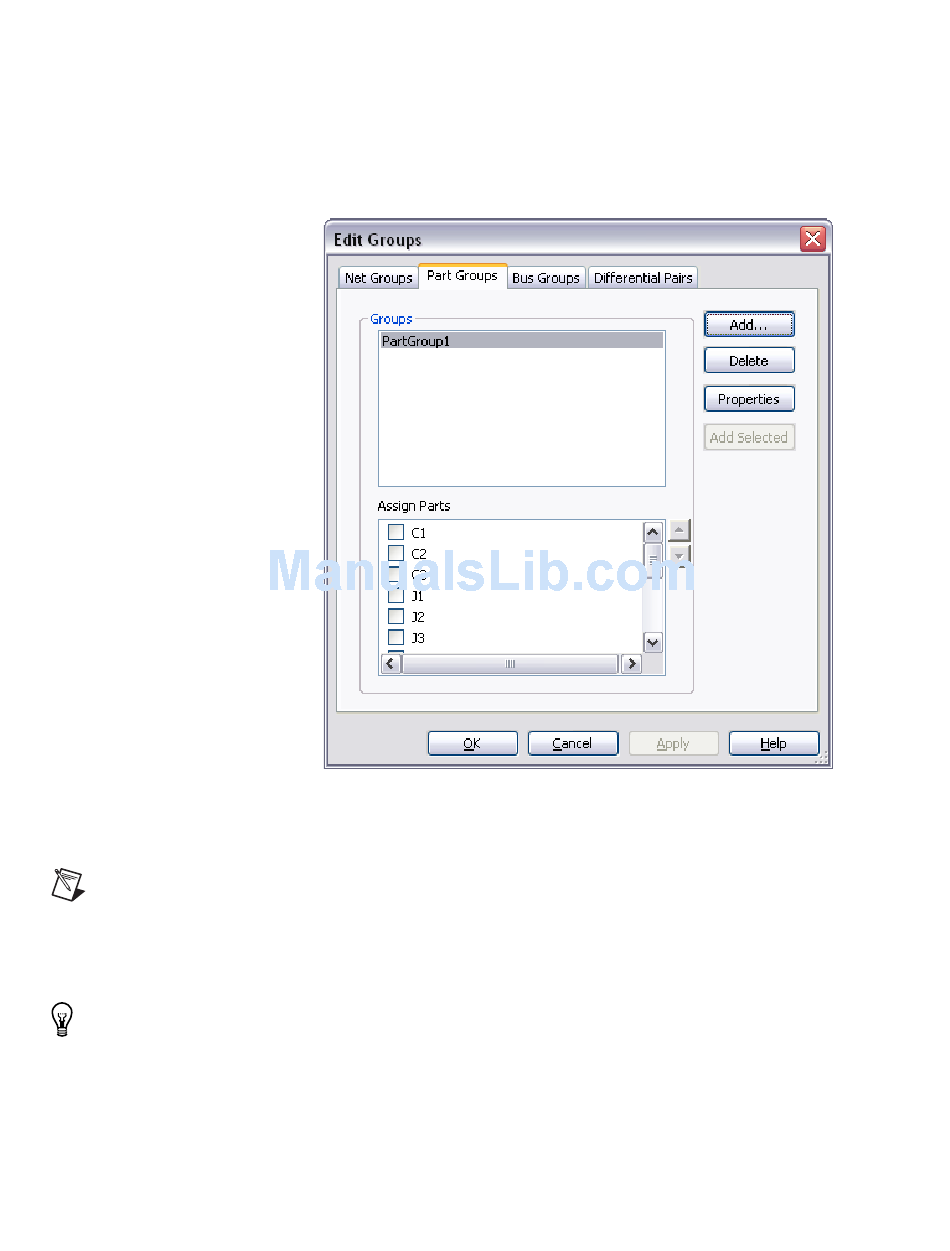

7. Highlight the new group to display a list of parts you can add to the
group in the Assign Parts list, as shown in the example below.
8. Click checkboxes beside the desired parts in the Assign Parts list and
click Apply to add them to the group.
9. Click OK to close the Edit Groups dialog box.
3-14 ni.com
