Note Error messages will display if the selected pins cannot be swapped, or if there is no
PINGROUP information for a pin.

Swapping Gates

© National Instruments Corporation

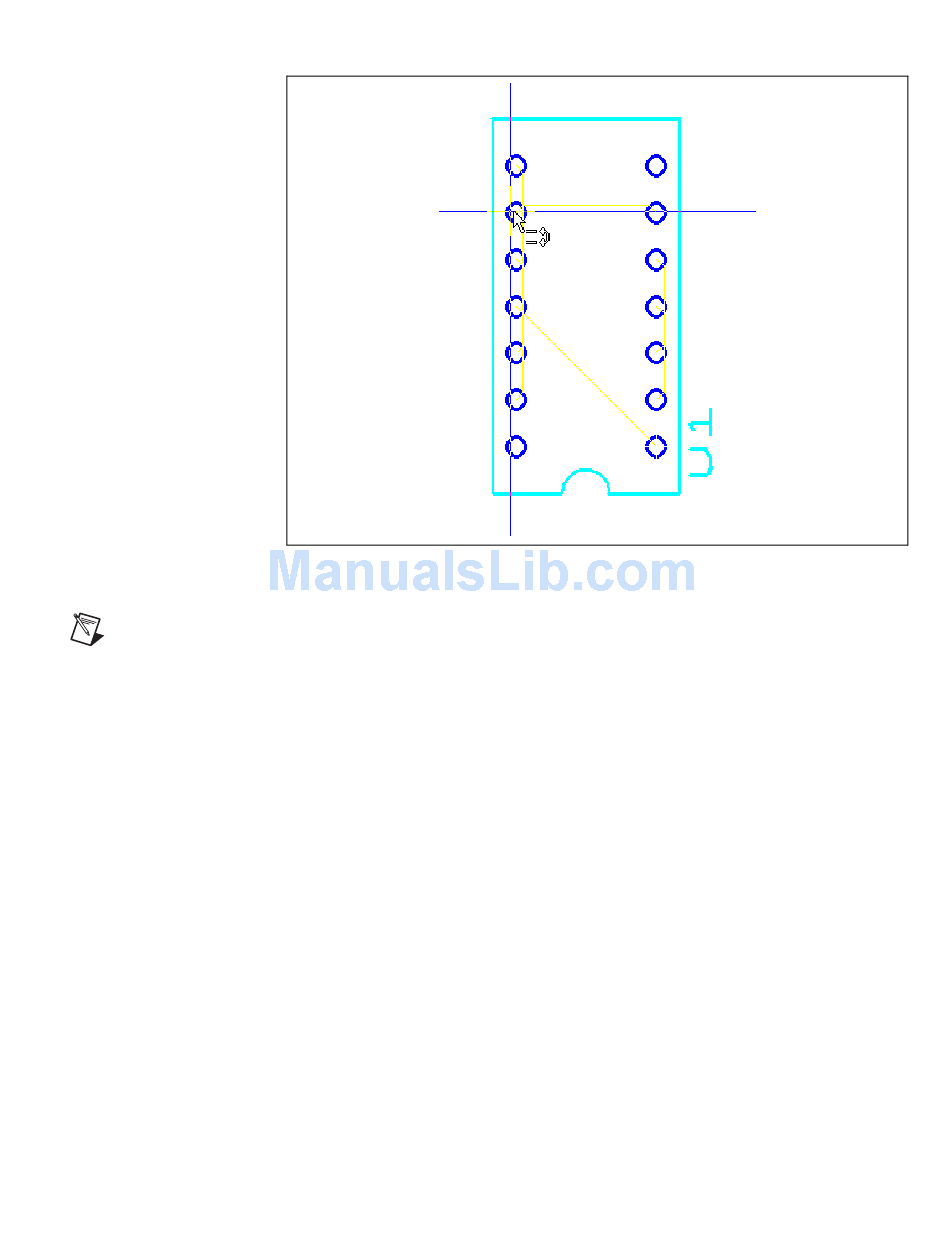

3. Click on the second pin to complete the action.
This feature allows you to swap similar gates, and works for the following,
which are set in the Pin & Gate Swapping Settings area of the Design
Rules tab of the PCB Properties dialog box:
• Internal Gates Only—Allows gate swapping in the same IC only.
• Advanced Swapping—Allows gate swapping internally and between
similar ICs.
Group settings for swappable gates can be set into part groups in Ultiboard.
Each new part group will have its own swapping information, which
Ultiboard will follow.
