Chapter 4 Working with Parts
You can save your edited part in the database for future use. Refer to the
Note
Parts using the Add Selection to Database Command

Editing a Polygon

NI Ultiboard User Manual

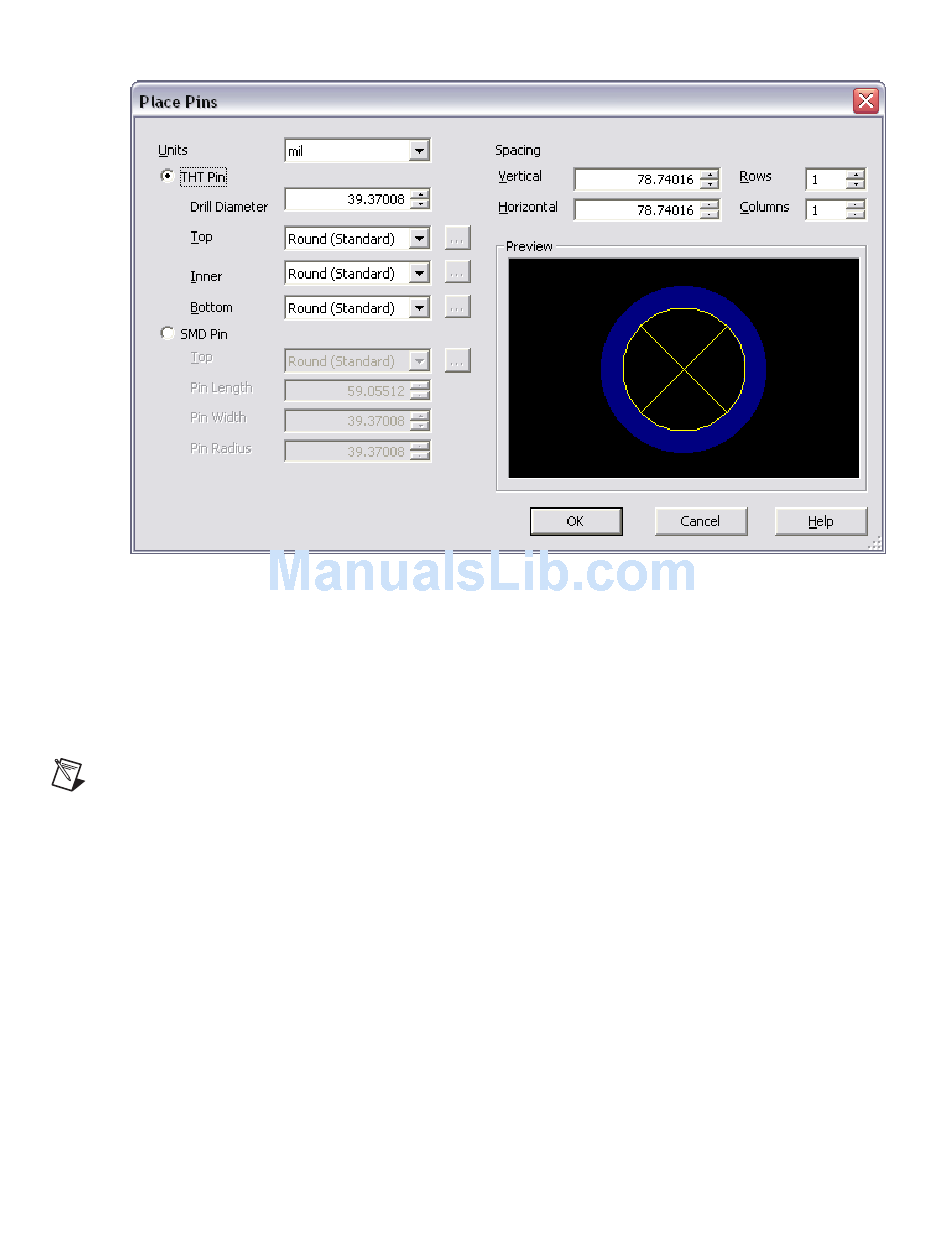

4. Indicate the pad type (THT or SMD) and its dimensions and spacing.
Changes appear in the Preview panel. When you have made the
necessary settings, click OK. The pad is attached to the pointer. Click
on the part to place it.
5. When finished, choose Edit»In-Place Part Edit again to end the
In-Place Edit function. The part appears with its changes.
A vertex is a point of a polygon. You can add or remove vertices from
polygons, whether copper or non-copper.
section for more information.
4-30
Adding
