Chapter 5
Working with Traces and Copper
NI Ultiboard User Manual

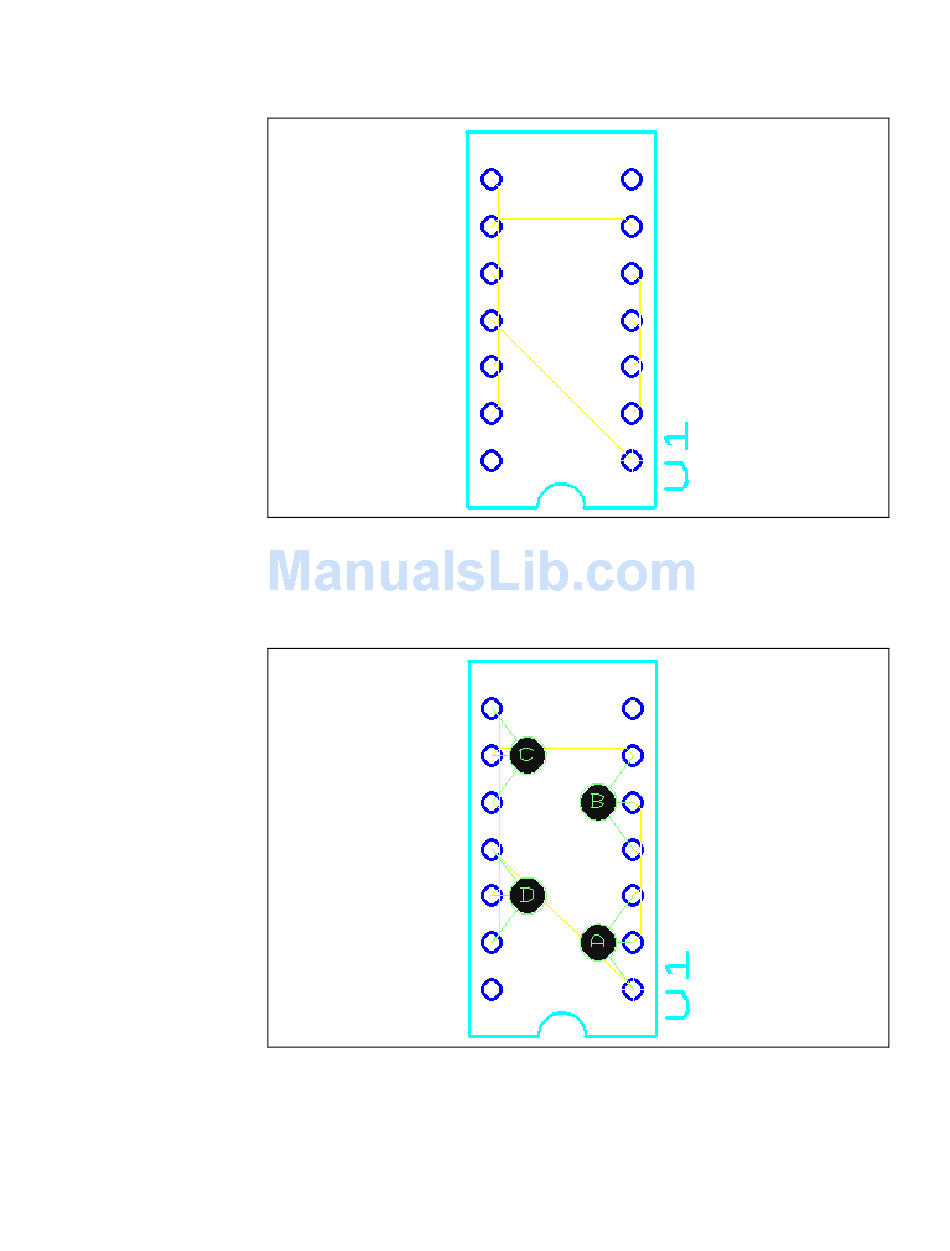

The following design is used in this example:
Complete the following steps to swap gates between parts:
1.
Select Design»Swap Gates. The workspace changes to reflect the
gates.
2.
Select the first gate that you wish to swap by clicking on the
corresponding letter.
5-36
ni.com
