Routing Options: Bus Autorouting Tab

To autoroute buses, the topology for the nets, as set in the Net edit dialog
box, or the Spreadsheet View, must be set to either Daisy chain or Star
and the nets must be part of a Bus Group as set in the Edit Groups dialog
box. You can also add new Bus Groups from the Bus Autorouting tab in
the Routing Options dialog box.
Complete the following steps to set Ultiboard bus routing options:
1. Select the Bus autorouting tab in the Routing Options dialog box.
2. Select the desired buses to route in the Defined bus groups area. Click
Select All to select all available buses for routing or Clear All if you
wish to clear all of the checkboxes in the Defined bus groups area.
3. If you wish to add or delete bus groups, or change a bus group's
Assigned Nets, click Edit. The Bus Groups tab of the Edit Groups
dialog box appears where you can Add or Delete bus groups. You can
also change the nets assigned to a specific bus group from here by
selecting or de-selecting the group's checkbox in the Assign Nets list.

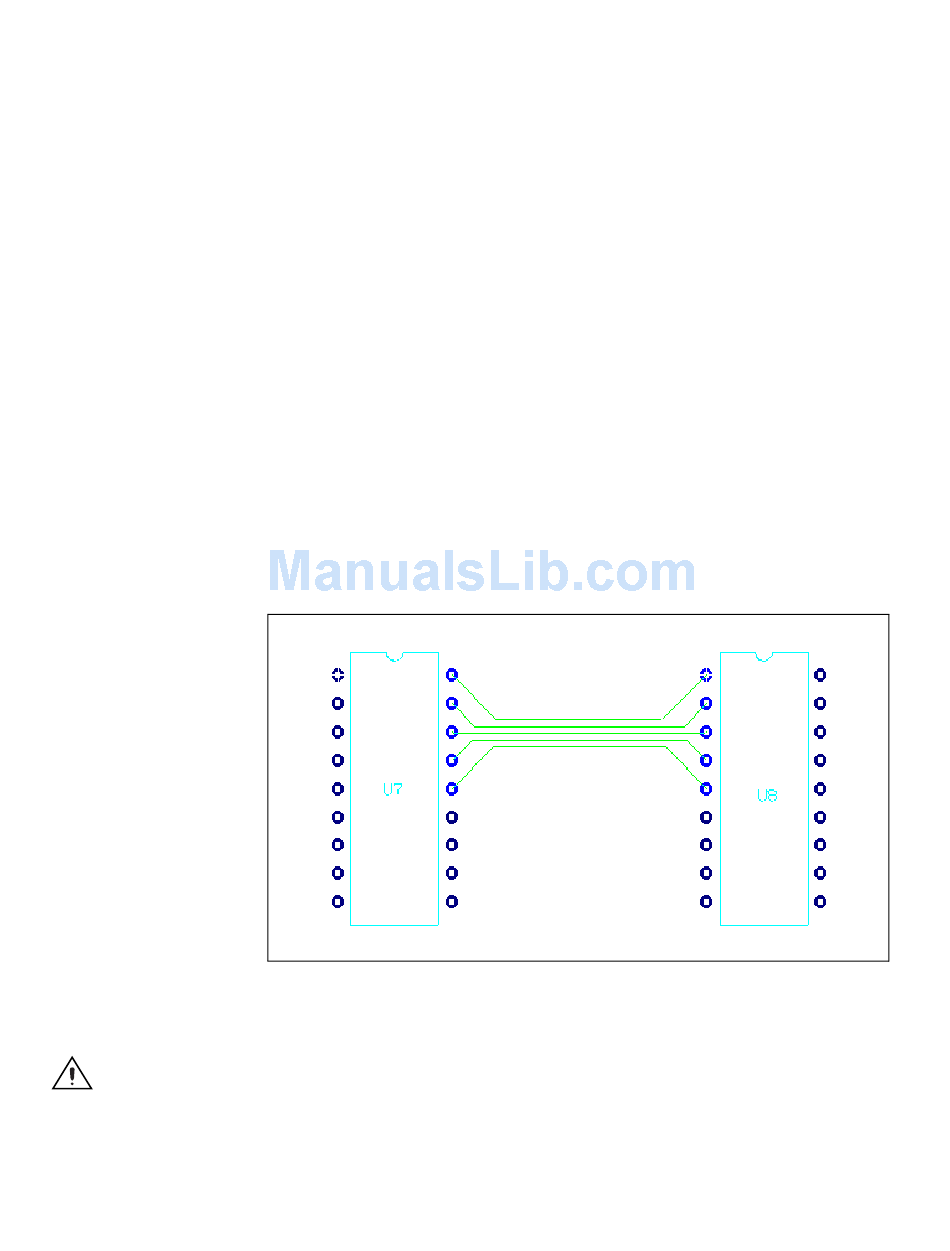

4. When you start autorouting, the buses are routed as in the following
example.
5. If you wish to return the values to the default settings for Ultiboard,
click Default.
