Equi-Spacing Traces
The selected traces must be between two objects (that is, two pins, two traces); initial
Note
spacing between traces must not be equal; traces must belong to a net in the same layer.
Rubber-banding does not work with this feature, hence some traces may become
disconnected.
Deleting a Trace
Depending on your setting in the PCB Design tab of the Preferences dialog box,
Note
vias associated with a trace will be deleted when that trace is deleted.
© National Instruments Corporation
This option lets you set the spacing between traces to be equal.
Complete the following steps to equi-space traces:
1.

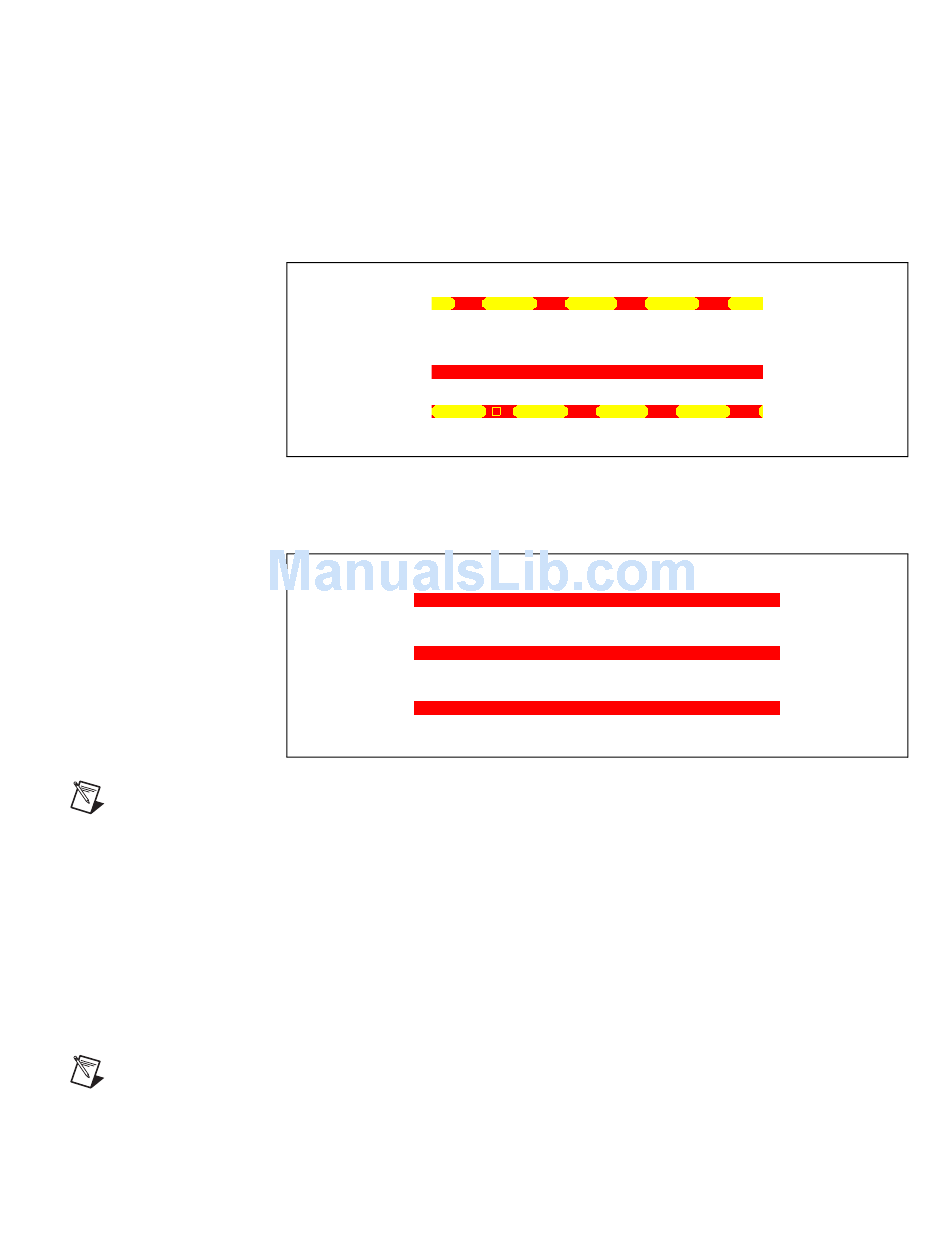

Select two traces that surround at least one other trace, as shown in the
figure below.
2.
Select Tools»Equi-space Traces. The spacing between the traces is
made equal, as shown in the example in the figure below.
Traces can be deleted like other objects. When you delete a trace, you are
not asked to confirm the deletion, but you can undo the deletion by
choosing Edit»Undo immediately after making the deletion.
