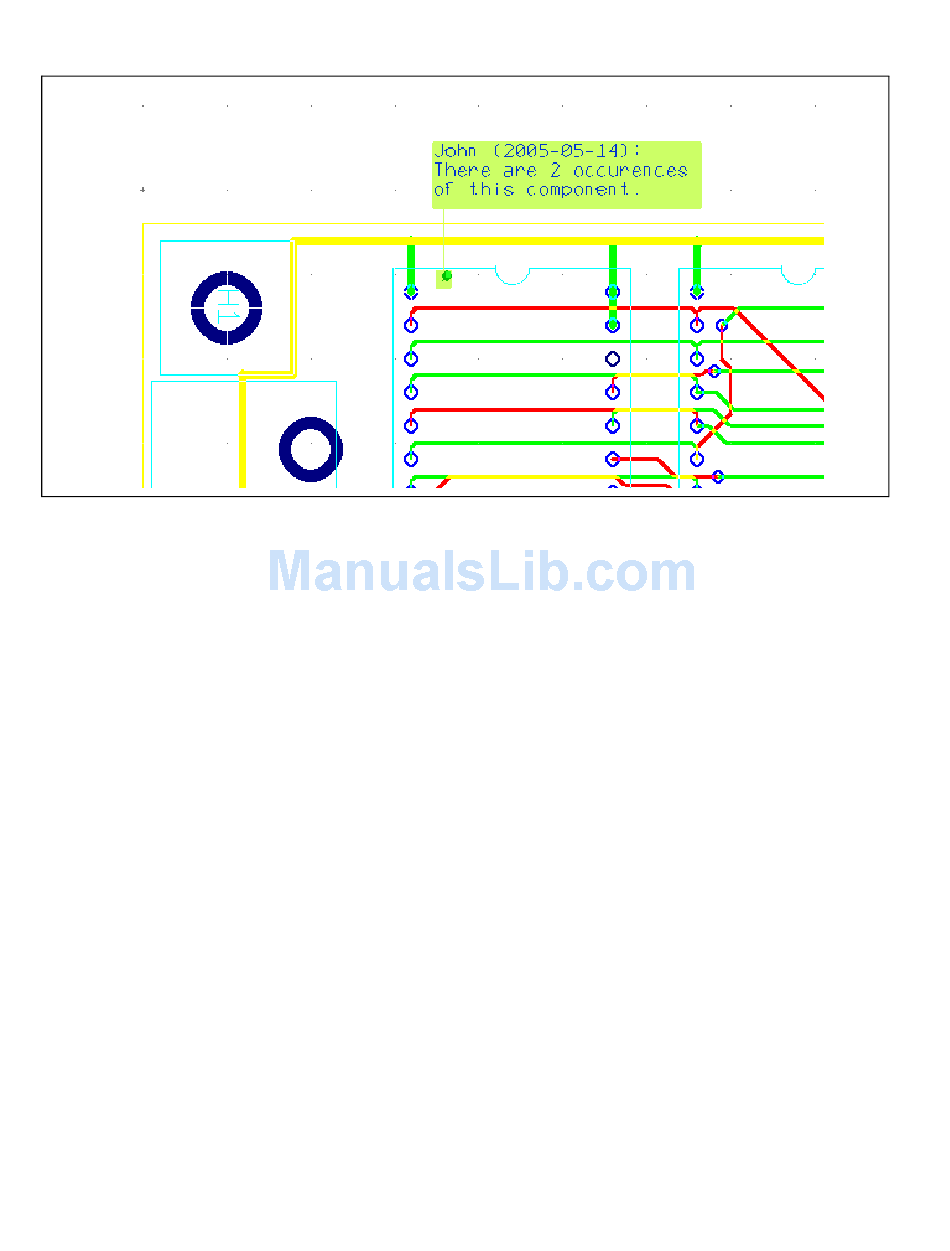

Complete the following steps to pin a comment to a part or the workspace:
1. Double-click on the Comment layer in the Design Toolbox to make it
the active layer.
2. Select Place»Comment. The Comment dialog box appears.
3. If desired, enable the Show Comment checkbox to show the contents
of the comment on the design.
4. Type the comment in the area below the Show Comment checkbox.
5. Optionally, modify the information in the Color box:
• Background—Click to change the color of the placed comment's
background.
• Text—Click to change the color of the placed comment's text.
When you click either Background or Text, the Select color dialog
box displays.
Enable the Use named color checkbox and select an element from the
Name drop-down list.
Or
Disable the Use named color checkbox and select a color from the
Colors pallette.
Click OK to return to the Comment dialog box.
