Setting Preferences

General Tab

© National Instruments Corporation

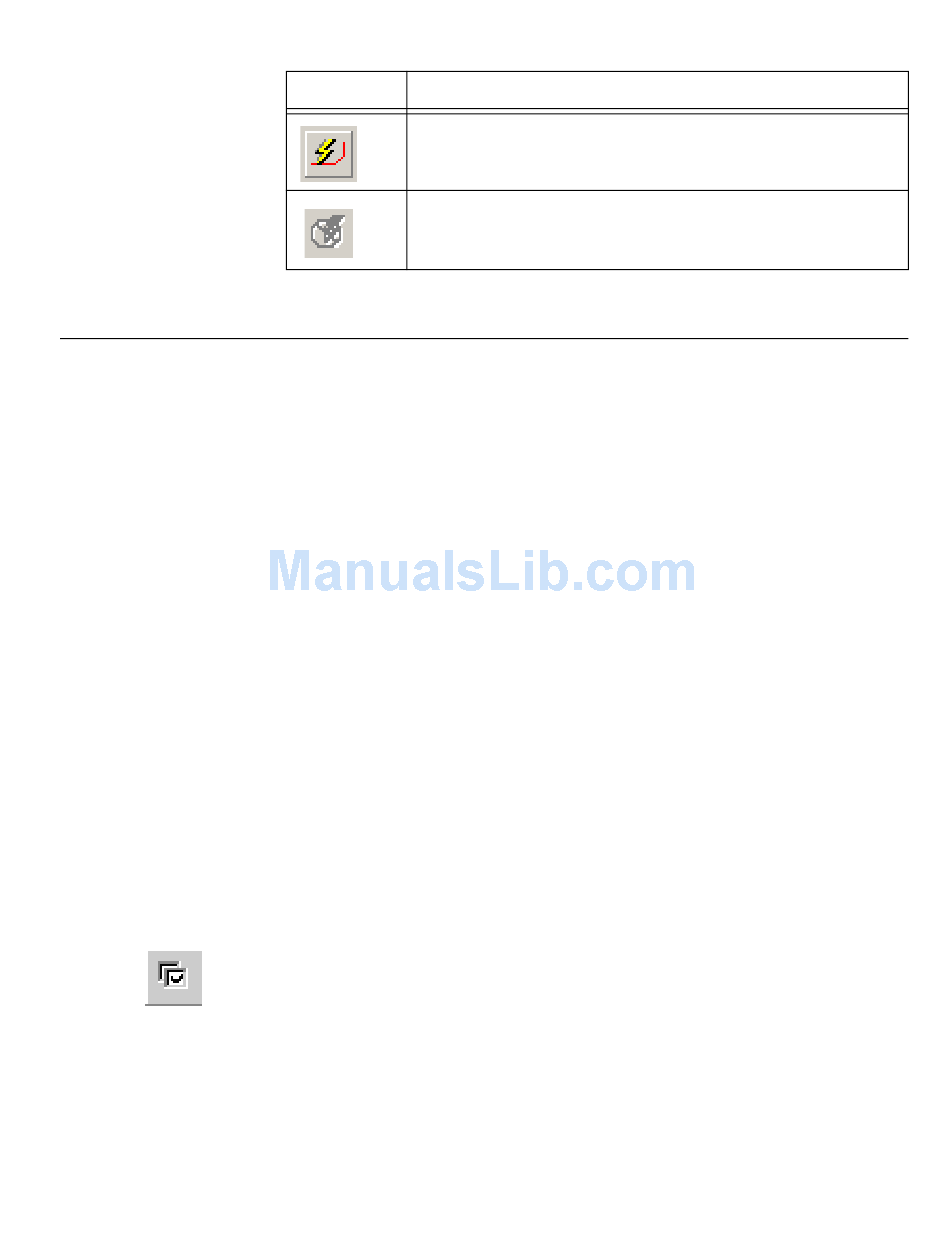

Button
Start/Resume Autorouting button. Starts automatically
placing traces.
Stop/Pause Autorouter button.
This section explains general procedures for setting preferences. The
following sections describe details of setting specific options.
Complete the following steps to set your user preferences:
1. Choose Options»Global Preferences. The Preferences dialog box
appears, offering you the following tabs:
• General Tab
• Paths Tab
• Colors Tab
• PCB Design Tab
• Dimensions Tab
• 3D Options Tab
2. Select the desired tab.
3. Set the desired customization options. The specific options and
settings available in the tabs are described in the following sections.
4. Click OK to save your changes.
Complete the following steps to change workspace options:
1. Choose Options»Global Preferences and select the General tab.
2. Set the Fullscreen mode, View, Crosshair and Mouse wheel
behavior settings as desired.
3. Set the following as desired:
• Auto save settings—Enable to have changes automatically saved
(at the specified Time interval).
• Minimum control point size—The size of the contol points on
vertices and other objects.
Description
