Chapter 1 User Interface

Align Toolbar

NI Ultiboard User Manual
The Align toolbar contains the functions used to align and space design
elements. Refer to the
Parts sections of Chapter 4,

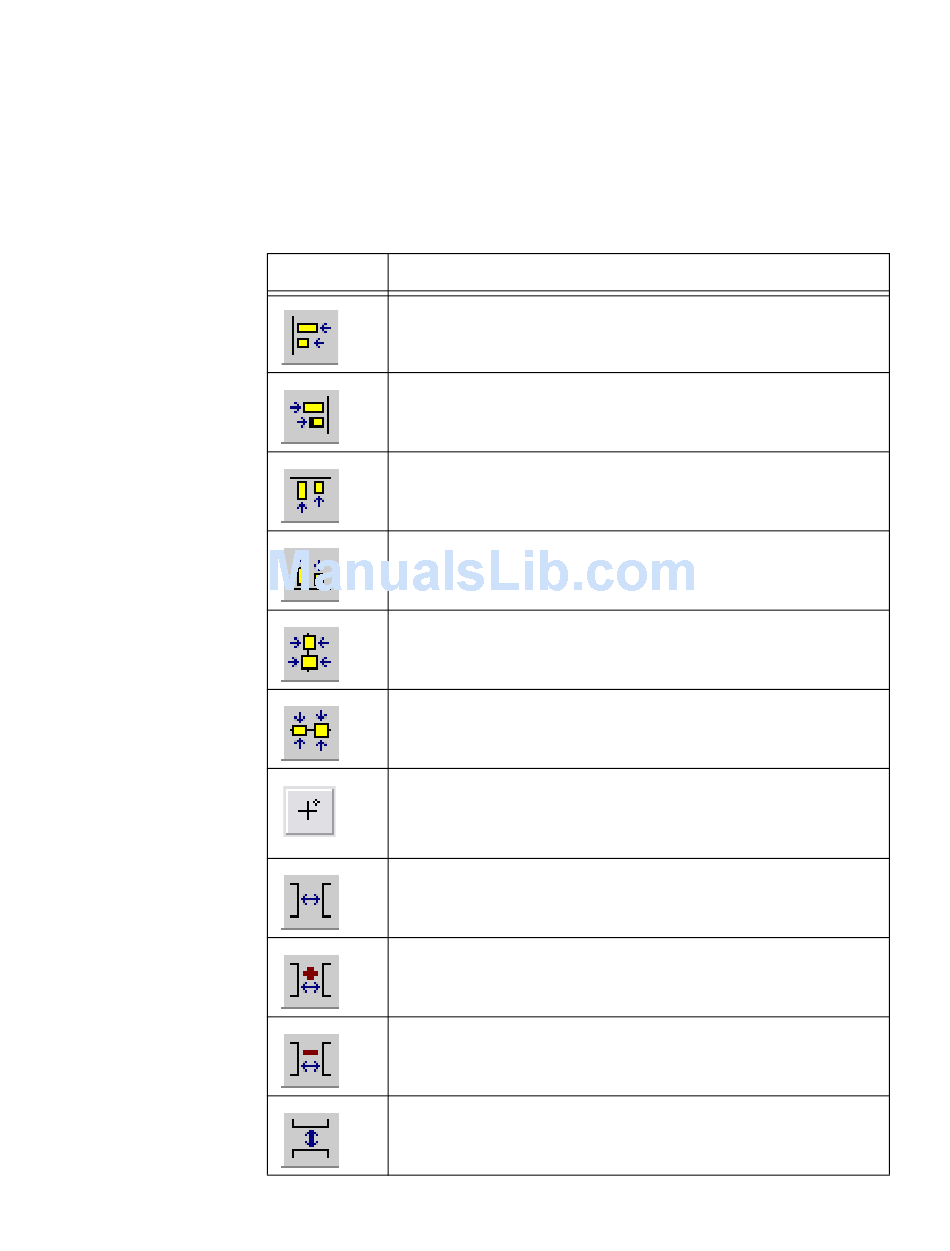

The Align toolbar buttons are explained in the table below.
Button
Align Left button. Aligns the left sides of the selected
parts.
Align Right button. Aligns the right sides of the selected
parts.
Align Top button. Aligns the top edges of the selected
parts.
Align Bottom button. Aligns the bottom edges of the
selected parts.
Align Center Horizontal button. Shifts the selected
elements horizontally so their centers are aligned.
Align Center Vertical button. Shifts the selected
elements vertically so their centers are aligned.
Align to Coordinate button. Displays the Enter
coordinate dialog box where you enter new coordinates
for the selected element.
Space Across button. Spaces three or more objects beside
each other evenly.
Space Across Plus button. Increases horizontal space
between two or more objects.
Space Across Min button. Decreases horizontal space
between two or more objects.
Space Down button. Spaces three or more objects above
each other evenly.
Aligning Shapes and
Working with Parts, for more information.
Description
1-8
Partsand Spacing Shapes and
