Chapter 3 Setting Up a Design

Working with Net Groups

Refer to the
Note
more information.
NI Ultiboard User Manual
Complete the following steps to create a net group:
1. Select Tools»Group Editor to display the Edit Groups dialog box.
2. Click the Net Groups tab.
3. Click Add. The Add group dialog box appears.
4. Enter the desired name and click OK. The Change group settings
dialog box appears.
5. Change the settings in the Group Settings area as desired.
Change Group Settings dialog box
6. Click OK to return to the Net Groups tab. The newly created group
appears in the Groups list.

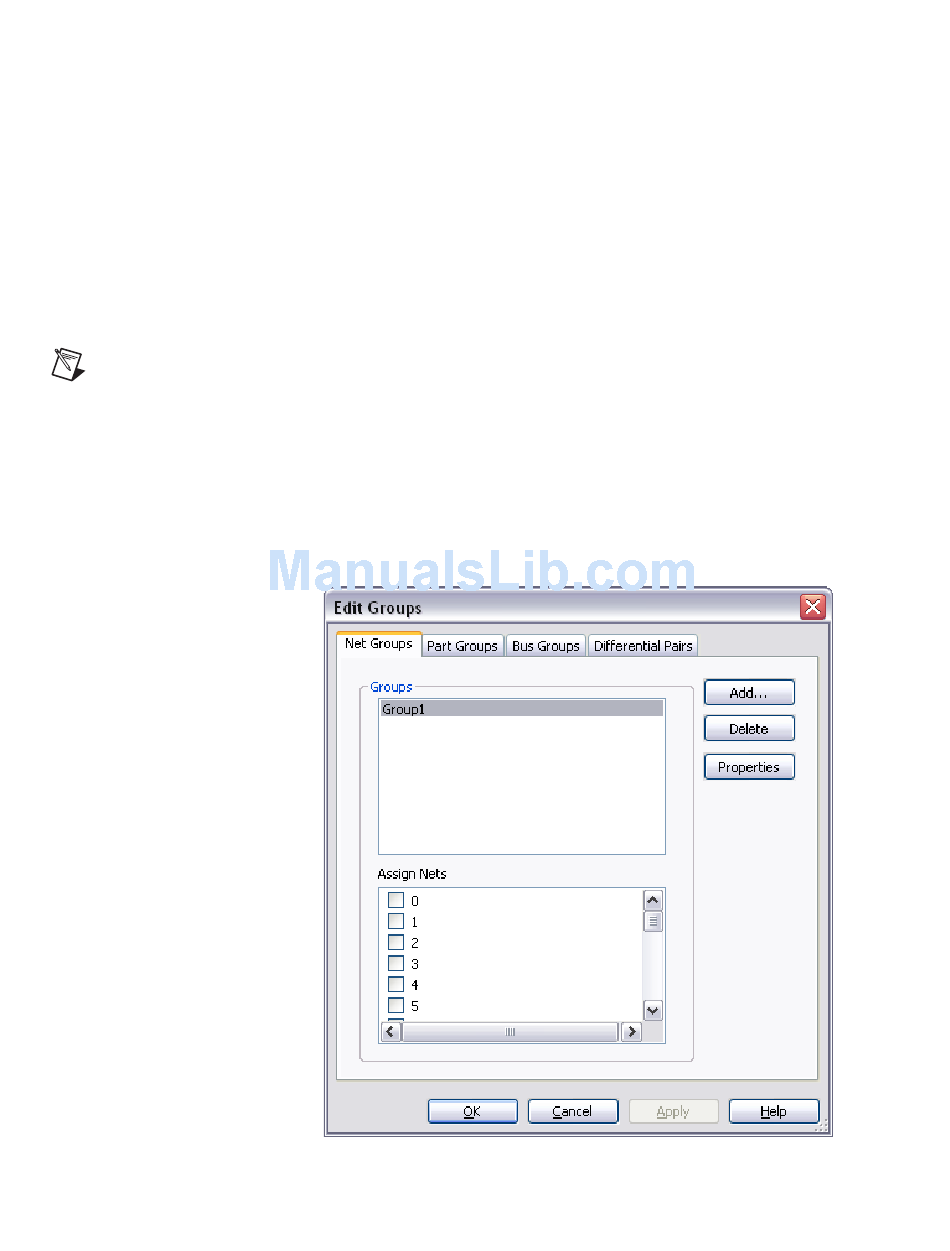

7. Highlight the new group to display a list of nets you can add to the
group in the Assign Nets list, as shown in the example below.
and Net Group Settings
3-12
sections for
