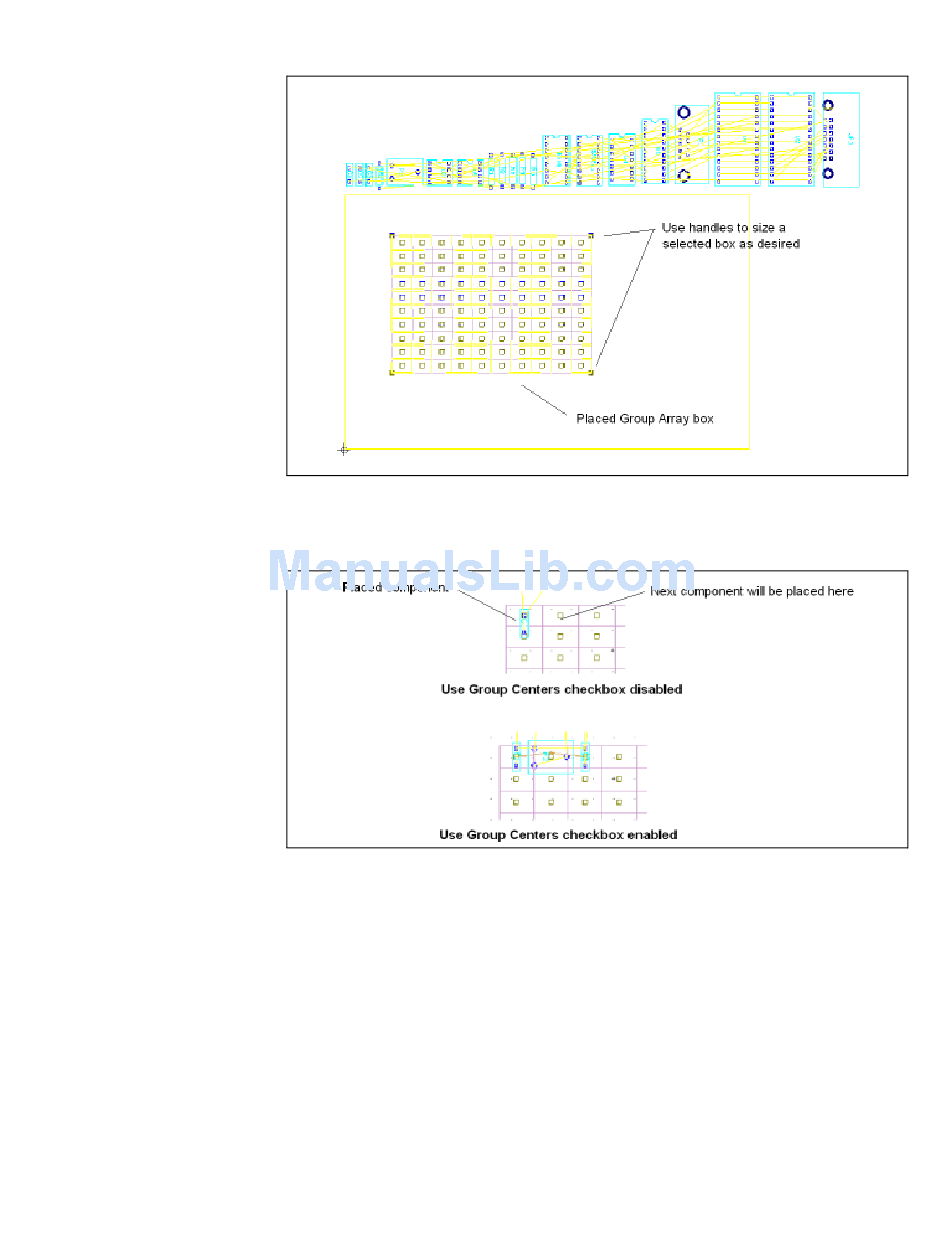

5. Begin selecting and dragging parts. As they are placed, the parts snap
to the array.
Place the part in the top left cell. The other parts will be placed at the
same relative position in the other cells, beginning in the top left row
and working to the right.
6. Continue placing parts.
