© National Instruments Corporation
Or

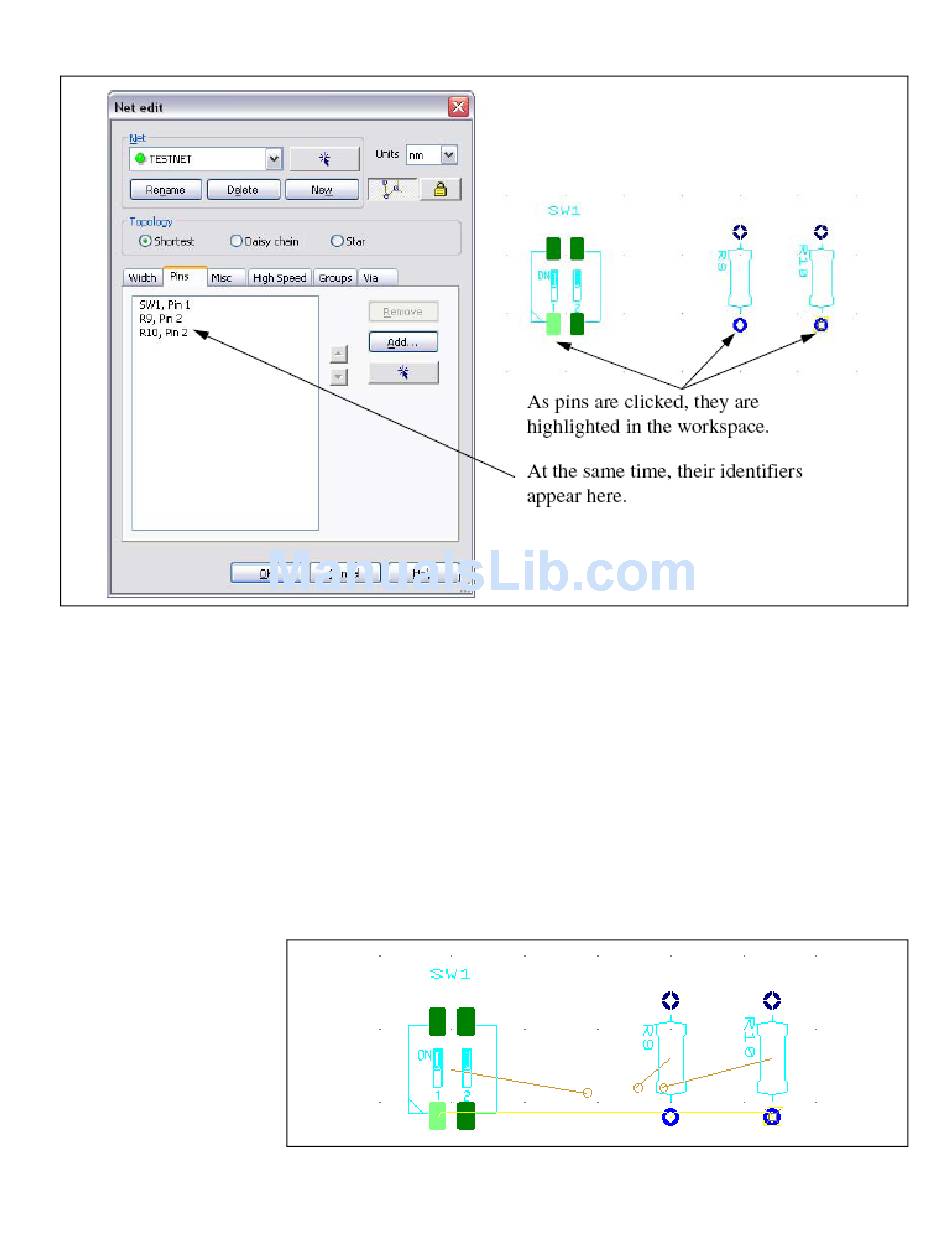

Click Add. The Add Pins to the Net dialog box displays.
Highlight the pins to be added and click Add. The dialog box closes
and the Net edit dialog box shows the added pins in the list of pads for
the displayed net.
4.
Click OK in the Net edit dialog box. The dialog box closes and the net
information is added in the workspace, including its ratsnest and force
vectors. Refer to the
Vectors
sections of Chapter 4,
information.
Chapter 5
Working with Ratsnests
Working with
5-23
Working with Traces and Copper
and
Working with Force
Parts, for more
NI Ultiboard User Manual
