OPERATING INSTRUCTIONS AND SPECIFICATIONS
NI 9265
4-Channel, 0–20 mA, 16-Bit Analog Current Output
Module
Français
Deutsch
ni.com/manuals

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NI 9265 and is the answer not in the manual?

Questions and answers

Summary of Contents for National Instruments NI 9265

  • Page 1 OPERATING INSTRUCTIONS AND SPECIFICATIONS NI 9265 4-Channel, 0–20 mA, 16-Bit Analog Current Output Module Français Deutsch ni.com/manuals...
  • Page 2: Safety Guidelines

    Visit ni.com/info about C Series documentation. Safety Guidelines Operate the NI 9265 only as described in these operating instructions. NI 9265 Operating Instructions and Specifications and enter rdsoftwareversion...
  • Page 3: Safety Guidelines For Hazardous Voltages

    You must use the NI 9932 connector backshell kit to ensure that the terminals are not accessible. © National Instruments Corp. This icon denotes that the component may be /60 VDC), you must ensure that devices NI 9265 Operating Instructions and Specifications...
  • Page 4: Safety Guidelines For Hazardous Locations

    Figure 1. NI 9932 Connector Backshell Safety Guidelines for Hazardous Locations The NI 9265 is suitable for use in Class I, Division 2, Groups A, B, C, D, T4 hazardous locations; Class I, Zone 2, AEx nC IIC T4, and Ex nC IIC T4 hazardous locations;...
  • Page 5 IP 54 as defined by IEC 60529 and EN 60529. For Zone 2 applications, connected signals must Caution be within the following limits: Capacitance ... 80 nF max Inductance ... 0.2 H max © National Instruments Corp. NI 9265 Operating Instructions and Specifications...
  • Page 6 II 3G and is suitable for use in Zone 2 hazardous locations. If you are using the NI 9265 in Gas Group IIC hazardous locations or in ambient temperatures of –40 °C ≤ Ta ≤ 70 °C, you must use the device in an NI chassis that has been evaluated as EEx nC IIC T4, Ex nA IIC T4, or Ex nL IIC T4 equipment.

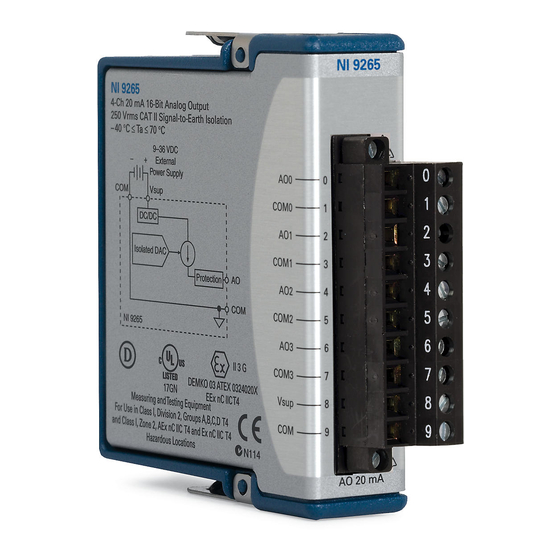

  • Page 7 Connecting the NI 9265 The NI 9265 has a 10-terminal, detachable screw-terminal connector that provides connections for 4 analog output channels. COM0 COM1 COM2 COM3 Vsup Power Supply COM Figure 2. NI 9265 Terminal Assignments © National Instruments Corp. NI 9265 Operating Instructions and Specifications...
  • Page 8 Refer to Figure 3 for an illustration of the output circuitry for one channel of the NI 9265. You can connect a load to each channel of the NI 9265. Connect the positive lead of the load to the AO terminal. Connect the ground of the load to the corresponding COM terminal.
  • Page 9 Supply DC/DC Isolated DAC NI 9265 Figure 3. Connecting a Load to the NI 9265 You must use 2-wire ferrules to create a secure Note connection when connecting more than one wire to a single terminal on the NI 9265.
  • Page 10 You must connect an external power supply to the NI 9265. This power supply provides the current for the devices you connect to the module. Connect the positive lead of the power supply to the supply terminal, V , and the negative lead of the power supply to Power Supply COM.
  • Page 11: Sleep Mode

    Refer to the chassis manual for information about support for sleep mode. If the chassis supports sleep mode, refer to the software help for information about enabling sleep mode. © National Instruments Corp. NI 9265 Operating Instructions and Specifications...
  • Page 12: Specifications

    Output Characteristics Number of channels... 4 analog output channels DAC resolution ... 16 bits Type of DAC ... String Power-on output state ... 0 Startup current ... 0.0 mA Power-down current... 0.0 mA NI 9265 Operating Instructions and Specifications ni.com...
  • Page 13 Uncalibrated, max (–40 to 70 °C) Range equals 0 to 20.6 mA © National Instruments Corp. Percent of Reading (Gain Error) 0.11% 0.25% 0.35% 0.85% NI 9265 Operating Instructions and Specifications Percent of Range (Offset Error) 0.19% 0.4% 1.4% 2.5%...
  • Page 14 Number of Update Time for R Series Channels Three Four Noise ... 600 nA Crosstalk ... –90 dB NI 9265 Operating Instructions and Specifications ) ... 9–36 VDC Expansion Chassis 3.5 μs 6.5 μs 9 μs 12 μs Update Time for Any Other Chassis 3 μs...
  • Page 15: Power Requirements

    Power Requirements Power consumption from chassis Active mode ... 230 mW max Sleep mode ... 25 μW max © National Instruments Corp. Bellcore Issue 6, Method 1, Case 3, Limited Part Stress Method NI 9265 Operating Instructions and Specifications...
  • Page 16: Physical Characteristics

    Screw-terminal wiring ... 12 to 24 AWG copper Ferrules ... 0.25 mm Torque for screw terminals ... 0.5 to 0.6 N · m Weight... 136 g (4.8 oz) NI 9265 Operating Instructions and Specifications conductor wire with 10 mm (0.39 in.) of insulation stripped from the end to 2.5 mm...
  • Page 17: Isolation Voltages

    COM terminal without damaging the module or other devices. © National Instruments Corp. -to-COM ... ±40 V max channels -to-earth ground, Measurement Category II dielectric withstand test NI 9265 Operating Instructions and Specifications , verified by a 5 s terminal...
  • Page 18 115 V for U.S. or 230 V for Europe. Do not connect the NI 9265 to signals or use for Caution measurements within Measurement Categories III or IV. Safety Standards This product is designed to meet the requirements of the following...
  • Page 19 Europe (DEMKO)... EEx nC IIC T4 Environmental National Instruments C Series modules are intended for indoor use only but may be used outdoors if installed in a suitable enclosure. Refer to the manual for the chassis you are using for more information about meeting these specifications.
  • Page 20: Shock And Vibration

    Random (IEC 60068-2-64)... 5 g Sinusoidal (IEC 60068-2-6) ... 5 g, 10 to 500 Hz Operating shock (IEC 60068-2-27)... 30 g, 11 ms half sine, NI 9265 Operating Instructions and Specifications noncondensing , 10 to 500 Hz 50 g, 3 ms half sine, 18 shocks at 6 orientations ni.com...
  • Page 21: Electromagnetic Compatibility

    2004/108/EC; Electromagnetic Compatibility Directive (EMC) Refer to the Declaration of Conformity (DoC) for Note this product for any additional regulatory compliance information. To obtain the DoC for this product, visit © National Instruments Corp. NI 9265 Operating Instructions and Specifications...
  • Page 22: Environmental Management

    Certification column. Environmental Management National Instruments is committed to designing and manufacturing products in an environmentally responsible manner. NI recognizes that eliminating certain hazardous substances from our products is beneficial not only to the environment but also to NI customers.
  • Page 23: For Information

    National Instruments ni.com/environment/rohs_china about China RoHS compliance, go to environment/rohs_china Calibration You can obtain the calibration certificate and information about calibration services for the NI 9265 at Calibration interval ... 1 year © National Instruments Corp. National Instruments RoHS ni.com/calibration...
  • Page 24: Where To Go For Support

    Where to Go for Support The National Instruments Web site is your complete resource for technical support. At you have access to ni.com/support everything from troubleshooting and application development self-help resources to email and phone assistance from NI Application Engineers.
  • Page 25 Sweden 46 (0) 8 587 895 00, Switzerland 41 56 2005151, Taiwan 886 02 2377 2222, Thailand 662 278 6777, Turkey 90 212 279 3031, United Kingdom 44 (0) 1635 523545 © National Instruments Corp. NI 9265 Operating Instructions and Specifications...
  • Page 26 National Instruments, NI, ni.com, and LabVIEW are trademarks of National Instruments Corporation. Refer to the Terms of Use section on ni.com/legal for more information about National Instruments trademarks. Other product and company names mentioned herein are trademarks or trade names of their respective companies.
