Placing a Net Bridge

This example connects two traces - one is on net "DGND" and the other is
on net "GND".
Complete the following steps to place a net bridge:
1. Select Place»Net Bridge. The Place Net Bridge dialog box appears.
2. Click Select Net Bridge From Database. The Get a part from the
database dialog box appears.
3. Select the desired net bridge in the Available Parts area and click OK.
You are returned to the Place Net Bridge dialog box.

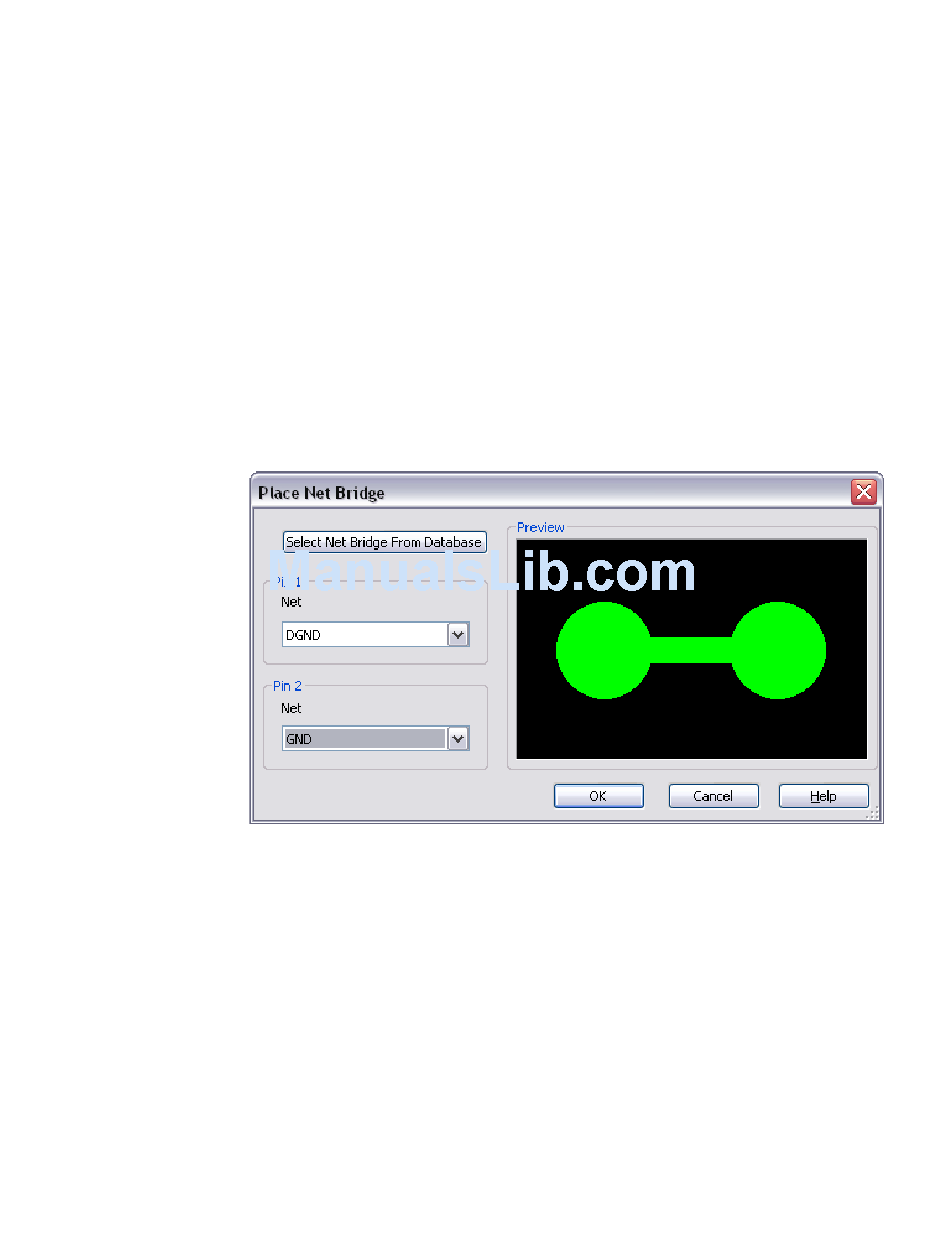

4. Map the pins of the net bridge to the desired nets in the Pin 1 and Pin 2
area. In the example below, digital ground (DGND) and analog ground
(GND) are mapped together.
5. Click OK and place the netbridge across the two nets as in the example
below.
