Placing a Comment
© National Instruments Corporation
3.

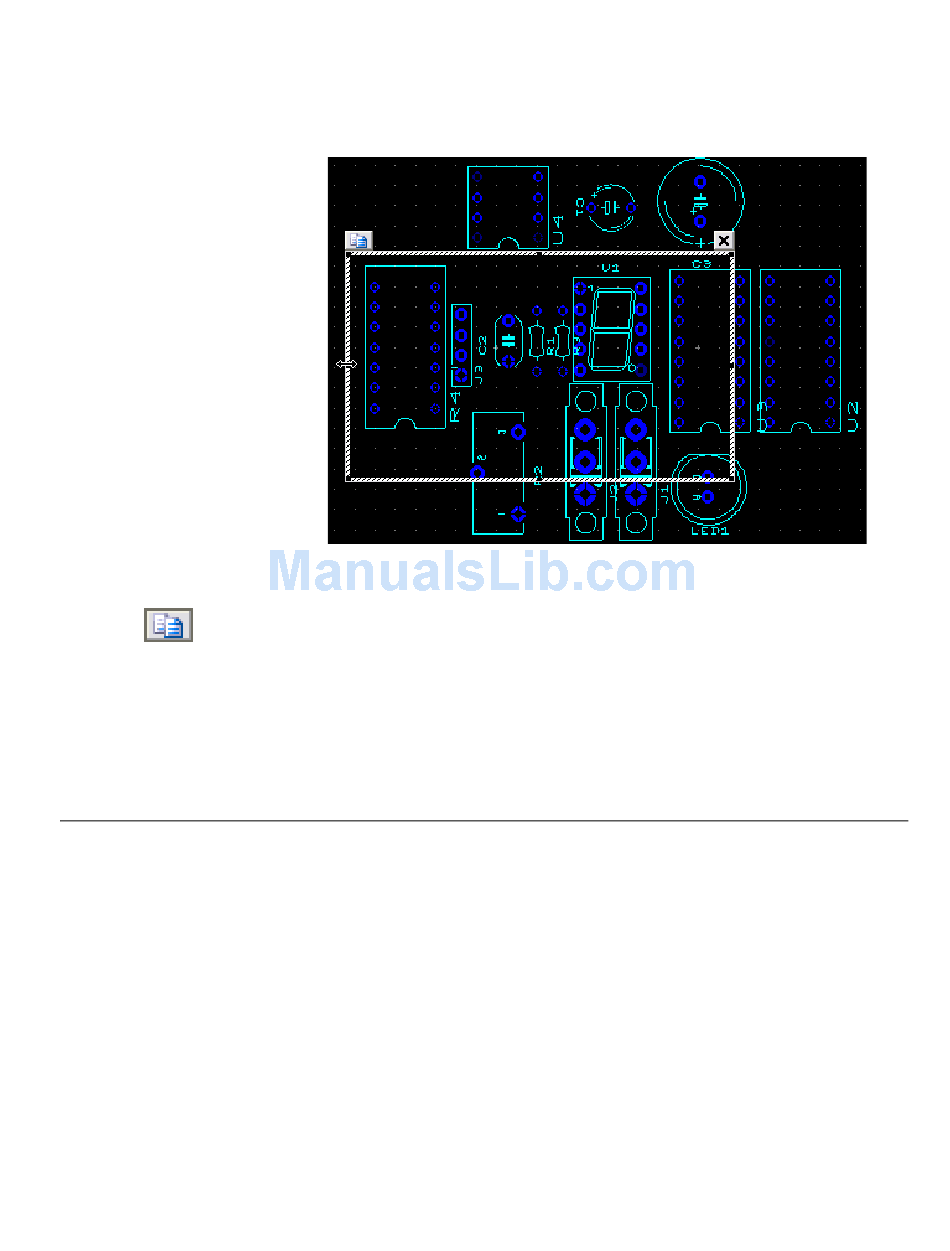

Optionally, to re-size the selection frame:
•
Move the cursor to one of the sizing handles.
•
Drag the cursor to re-size the selection frame.
4.
Click on the copy button at the top left corner of the selection frame.
The image inside the selection frame is copied to the system clipboard.
5.
Click on the x at the top right corner of the selection frame to close it.
6.
Open the desired application, for example, MS Word, and click on
Paste to paste the image.
Adding a comment permits "redlining", which can be used to show
engineering change orders, to facilitate collaborative work among team
members, or to allow background information to be attached to a design.
You can "pin" a comment to the workspace, or directly to a part. When a
part with an attached comment is moved, the comment also moves. The
figure below shows a comment pinned to a part with its contents displayed.
Chapter 8
Preparing for Manufacturing/Assembly
8-3
NI Ultiboard User Manual
