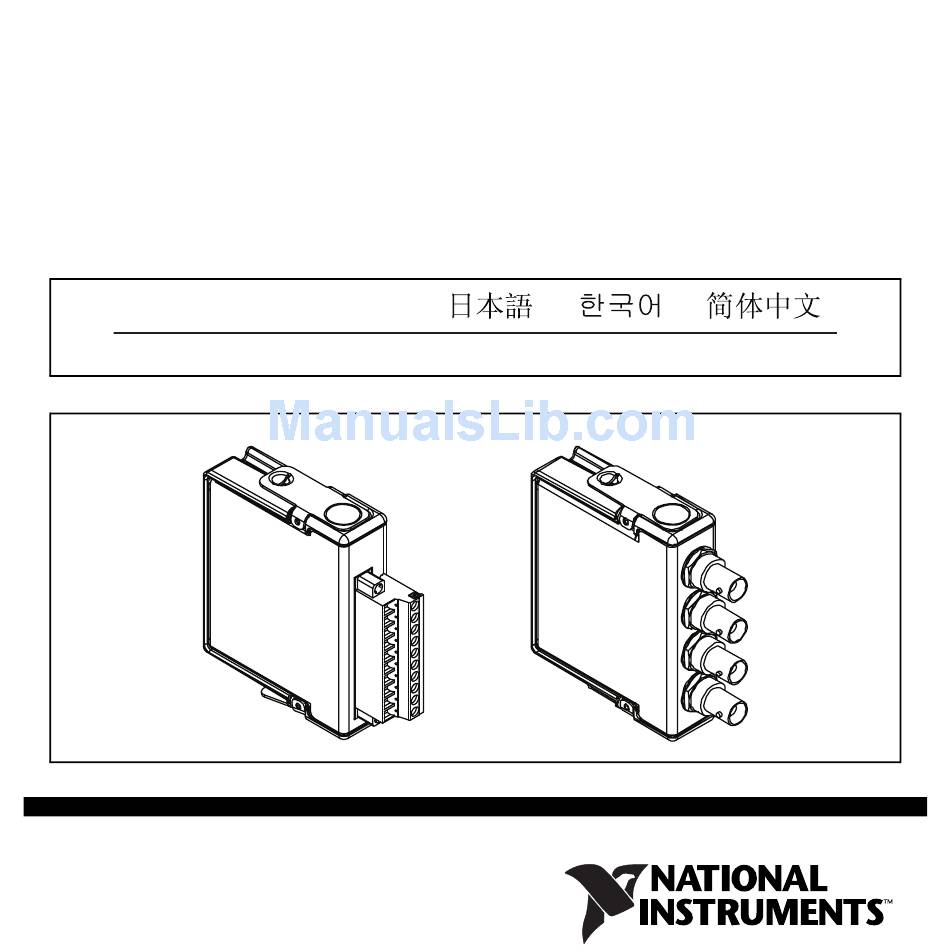

- Page 1 OPERATING INSTRUCTIONS AND SPECIFICATIONS NI 9215 4-Channel, ±10 V, 16-Bit Simultaneous Analog Input Module Français Deutsch ni.com/manuals...
-
Page 2: Safety Guidelines
This document describes how to use the National Instruments 9215 and includes specifications and terminal assignments for the NI 9215. In this document, the NI 9215 with screw terminal and NI 9215 with BNC are referred to inclusively as the NI 9215. Visit and enter ni.com/info which software you need for the modules you are using. -
Page 3: Safety Guidelines For Hazardous Voltages
Hot Surface hot. Touching this component may result in bodily injury. Safety Guidelines for Hazardous Voltages You can connect hazardous voltages only to the NI 9215 with screw terminal. Do not connect hazardous voltages to the NI 9215 with BNC. - Page 4 Figure 1 shows the NI 9932 connector backshell. You can use the NI 9932 connector backshell only Note with the NI 9215 with screw terminal. Figure 1. NI 9932 Connector Backshell NI 9215 Operating Instructions and Specifications ni.com...
-
Page 5: Safety Guidelines For Hazardous Locations
Safety Guidelines for Hazardous Locations The NI 9215 is suitable for use in Class I, Division 2, Groups A, B, C, D, and T4 hazardous locations; Class I, Zone 2, AEx nC IIC T4 and Ex nC IIC T4 hazardous locations; and nonhazardous locations only. - Page 6 II 3G and is suitable for use in Zone 2 hazardous locations. If you are using the NI 9215 in Gas Group IIC hazardous locations or in ambient temperatures of –40 °C ≤ Ta ≤ 70 °C, you must use the device in an NI chassis that has been evaluated as Ex nA IIC T4 equipment.
- Page 7 Power supply and module cables must be separated on opposite sides of the enclosure, and must enter and exit through opposing enclosure walls. © National Instruments Corp. NI 9215 Operating Instructions and Specifications...
-
Page 8: Input Channels
Connecting the NI 9215 The NI 9215 provides connections for four differential analog input channels. Figure 2. Terminal Assignments of the NI 9215 with Screw Terminal NI 9215 Operating Instructions and Specifications AI0+ AI0– AI1+ AI1– AI2+ AI2– AI3+ AI3–... - Page 9 Figure 3. Connector Assignments of the NI 9215 with BNC © National Instruments Corp. AI0+ AI0– AI1+ AI1– AI2+ AI2– AI3+ AI3– NI 9215 Operating Instructions and Specifications...
- Page 10 The NI 9215 with BNC has four BNC connectors. Each channel of the NI 9215 has an AI+ terminal or shield to which you can connect the positive voltage signal, and an AI– terminal or shield to which you can connect the negative voltage signal. The...
- Page 11 NI 9215. Connect the positive voltage signal to AI+ and the negative voltage signal to AI–. To connect grounded differential signals to the NI 9215 with screw terminal, you must also connect the signal reference to the COM terminal, as shown in Figure 4.
- Page 12 Figure 5. If the voltage source is outside of the common-mode range, then the NI 9215 does not read data accurately. The NI 9215 with BNC has internal circuitry that keeps the voltage source within the common-mode range.
- Page 13 Connecting Single-Ended Voltage Signals to the NI 9215 To connect single-ended voltage signals to the NI 9215 with screw terminal, you must also connect the ground signal to the COM terminal to keep the common-mode voltage in the specified range, as shown in Figure 6.
- Page 14 Wiring for High Vibration Applications If an application using the NI 9215 with screw terminal is subject to high vibration, National Instruments recommends that you either use ferrules to terminate wires to the detachable screw-terminal connector or use the NI 9932 backshell kit to protect the connections.
- Page 15 The channels have independent track-and-hold amplifiers that allow you to sample all four channels simultaneously. Refer to Figures 8 and 9 for input circuitry illustrations of the NI 9215 with screw terminal and the NI 9215 with BNC. © National Instruments Corp.
- Page 16 Overvoltage Protection Overvoltage AI– Protection Figure 8. Input Circuitry for One Channel on the NI 9215 with Screw Terminal NI 9215 Operating Instructions and Specifications – Instrumentation Amplifier NI 9215 with Screw Terminal Isolated ni.com...
- Page 17 The NI 9215 with BNC has a resistor that ensures the input voltage does not drift outside of the common-mode range. AI– Figure 9. Input Circuitry for One Channel on the NI 9215 with BNC © National Instruments Corp. Overvoltage...
-
Page 18: Sleep Mode
In sleep mode, the system consumes minimal power and may dissipate less heat than it does in normal mode. Refer to the Specifications section for more information about power consumption and thermal dissipation. NI 9215 Operating Instructions and Specifications ni.com... -
Page 19: Specifications
The following specifications are typical for the range –40 to 70 °C unless otherwise noted. Input Characteristics Number of channels... 4 analog input channels ADC resolution... 16 bits Type of ADC... Successive approximation register (SAR) Input range ... ±10.0 V © National Instruments Corp. NI 9215 Operating Instructions and Specifications... - Page 20 Measurement Voltage, AI+ to AI– Minimum* Typical ±10.2 ±10.4 The minimum measurement voltage range is the largest voltage the NI 9215 is guaranteed to accurately measure. Refer to the Safety Guidelines voltages. NI 9215 Operating Instructions and Specifications (Signal + Common Mode) Maximum ±10.6...
- Page 21 Gain drift ... 10 ppm/ºC Offset drift ... 60 © National Instruments Corp. μ μ μ μ Percent of Reading (Gain Error) 0.2% 0.02% 1.05% 0.6% μ V/ºC NI 9215 Operating Instructions and Specifications Percent of Range* (Offset Error) 0.082% 0.014% 0.82% 0.38%...
- Page 22 RMS ... 1.2 LSB Peak-to-peak... 7 LSB Crosstalk ... –80 dB Settling time (to 2 LSBs) NI 9215 with screw terminal 10 V step ... 10 20 V step ... 15 NI 9215 Operating Instructions and Specifications μ μ ni.com...
-
Page 23: Power Requirements
Power consumption from chassis (full-scale input, 100 kS/s) Active mode ... 560 mW max Sleep mode ... 25 © National Instruments Corp. μ μ Bellcore Issue 6, Method 1, Case 3, Limited Part Stress Method μ W max NI 9215 Operating Instructions and Specifications... -
Page 24: Physical Characteristics
Torque for screw terminals ... 0.5 to 0.6 N · m Ferrules ... 0.25 mm Weight NI 9215 with screw terminal ... 150 g (5.3 oz) NI 9215 with BNC ... 173 g (6.1 oz) NI 9215 Operating Instructions and Specifications μ W max conductor wire with 10 mm (0.39 in.) of insulation... - Page 25 Safety NI 9215 with Screw Terminal Safety Voltages Connect only voltages that are within the following limits. Channel-to-COM ... ±30 V max Isolation Channel-to-channel ... No isolation between Channel-to-earth ground Continuous ... 250 V Withstand ... 2,300 V Measurement Category II is for measurements performed on circuits directly connected to the electrical distribution system.
- Page 26 Do not connect the NI 9215 with screw terminal Caution to signals or use for measurements within Measurement Categories III or IV. NI 9215 with BNC Safety Voltages Connect only voltages that are within the following limits. AI+-to-AI–... ±30 V max Isolation Channel-to-channel ...
- Page 27 Do not connect the NI 9215 with BNC to signals Caution or use for measurements within Measurement Categories II, III, or IV. Safety Standards This product is designed to meet the requirements of the following...
- Page 28 Europe (DEMKO)... EEx nC IIC T4 Environmental National Instruments C Series modules are intended for indoor use only but may be used outdoors if installed in a suitable enclosure. Refer to the manual for the chassis you are using for more information about meeting these specifications.
-
Page 29: Shock And Vibration
Shock and Vibration To meet these specifications, you must panel mount the system. If you are using the NI 9215 with screw terminal, you must also either affix ferrules to the ends of the terminal wires or use the NI 9932 backshell kit to protect the connections. -
Page 30: Electromagnetic Compatibility
2006/95/EC; Low-Voltage Directive (safety) • 2004/108/EC; Electromagnetic Compatibility Directive (EMC) Refer to the Declaration of Conformity (DoC) for Note this product for any additional regulatory compliance information. To obtain the DoC for this product, visit NI 9215 Operating Instructions and Specifications ni.com... -
Page 31: Environmental Management
Certification column. Environmental Management National Instruments is committed to designing and manufacturing products in an environmentally responsible manner. NI recognizes that eliminating certain hazardous substances from our products is beneficial not only to the environment but also to NI customers. -
Page 32: Where To Go For Support
NI 9215 at Calibration interval ... 1 year Where to Go for Support The National Instruments Web site is your complete resource for technical support. At everything from troubleshooting and application development self-help resources to email and phone assistance from NI Application Engineers. - Page 33 National Instruments also has offices located around the world to help address your support needs. For telephone support in the United States, create your service request at ni.com/support and follow the calling instructions or dial 512 795 8248. For telephone support outside the United States, contact your local...
