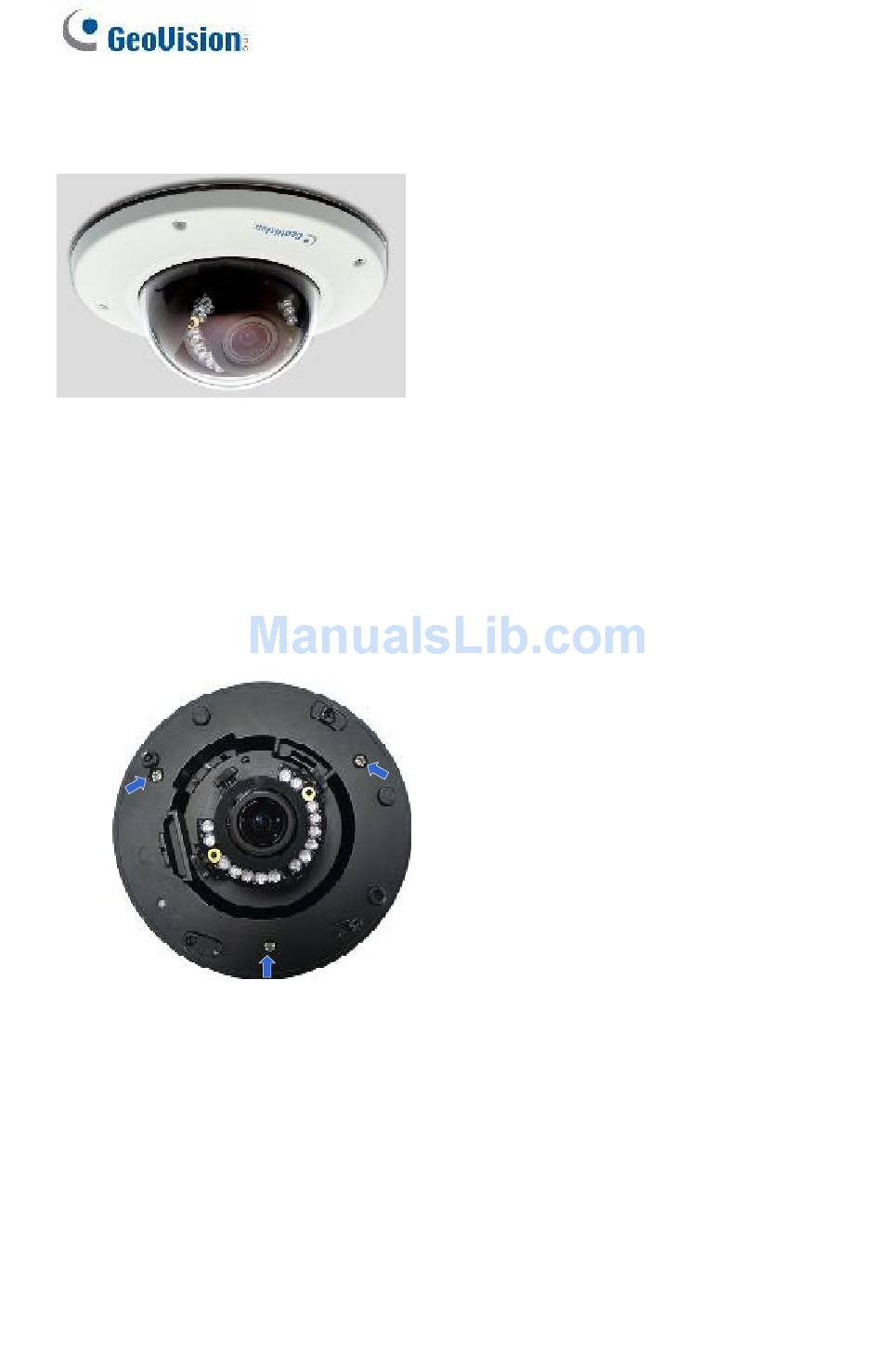

10.4.2 In-Ceiling Mount
Figure 10-8
1.
Follow step 1 in 10.4.1 Hard-Ceiling Mount section to remove the
housing cover, thread lock and back cover, and take out the camera
body.
2.
Cut out a circle with a diameter of 142 mm on the ceiling.
3.
Insert a blue screw to the indicated holes on the camera body.
Figure 10-9
144
