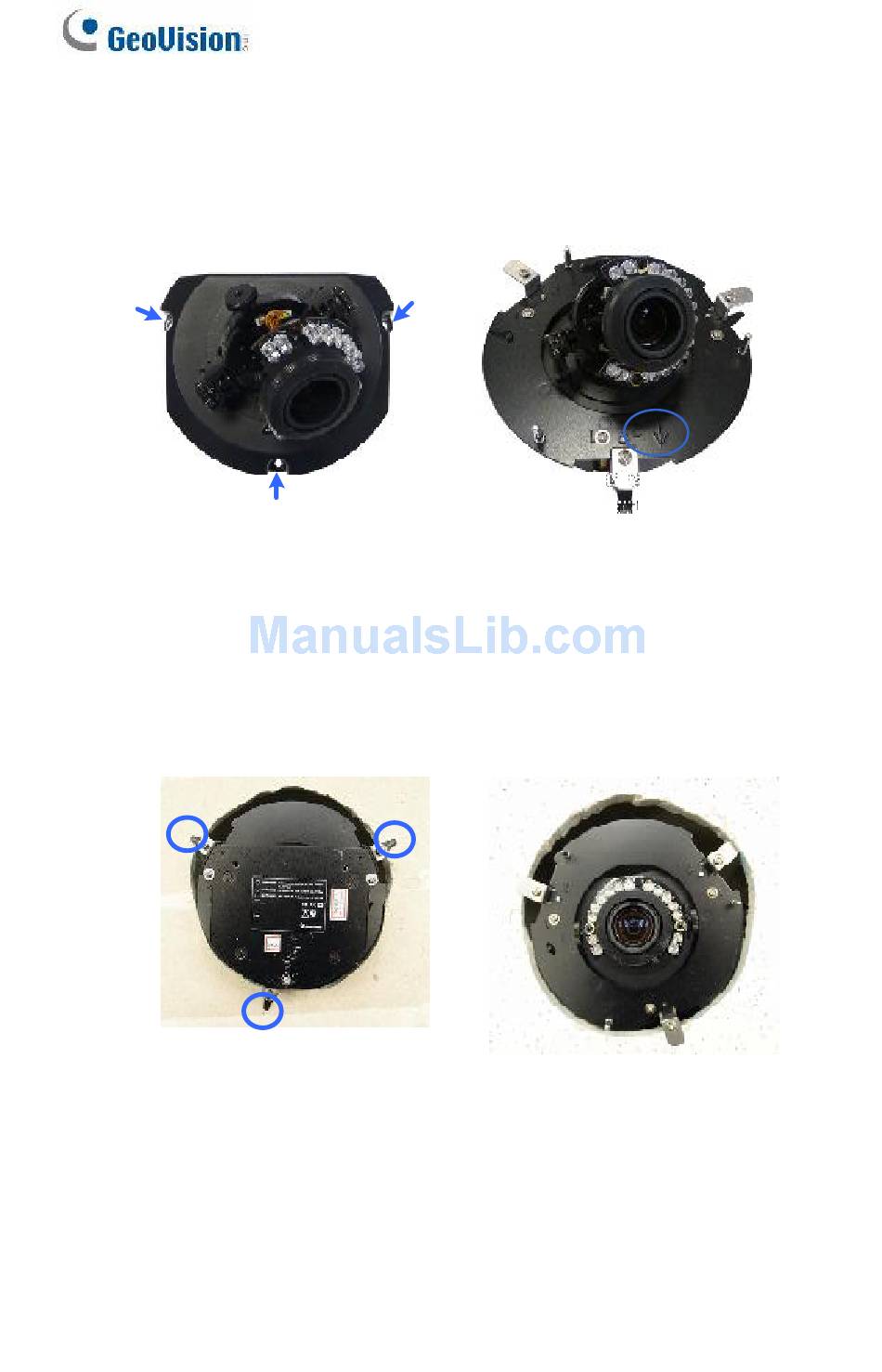

Place the mounting plate on the camera body with the copper pillars
inserted in the locations indicated below. The arrow on the mounting
plate should be pointing toward the front of the camera.
7.
From the bottom of the camera, secure the copper pillars using the 3
copper pillars screws.
8.
Place the camera into the ceiling opening.
9.
On the back side, make sure the black plastic clips are slightly above
the ceiling board and pointing outward.
Back Side
10. Tighten the bracket screws from the front side of the camera.
11. Connect the network, power and other cables to the camera. See
11.5 Connecting the Camera.
