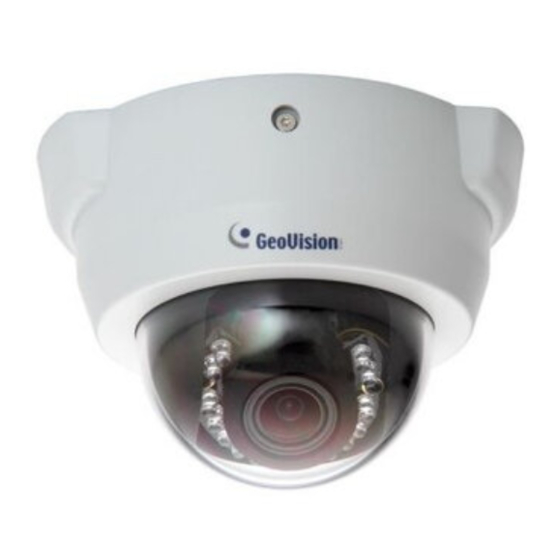

GeoVision GV-FD220D Hardware Manual

Hide thumbs Also See for GV-FD220D:
Table of Contents

Advertisement

Quick Links

See also: User Manual
GV-IPCam H.264
Fixed IP Dome
Target Fixed Dome
Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use.
Hardware Manual
ICH264TG2V10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GV-FD220D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GeoVision GV-FD220D

Summary of Contents for GeoVision GV-FD220D

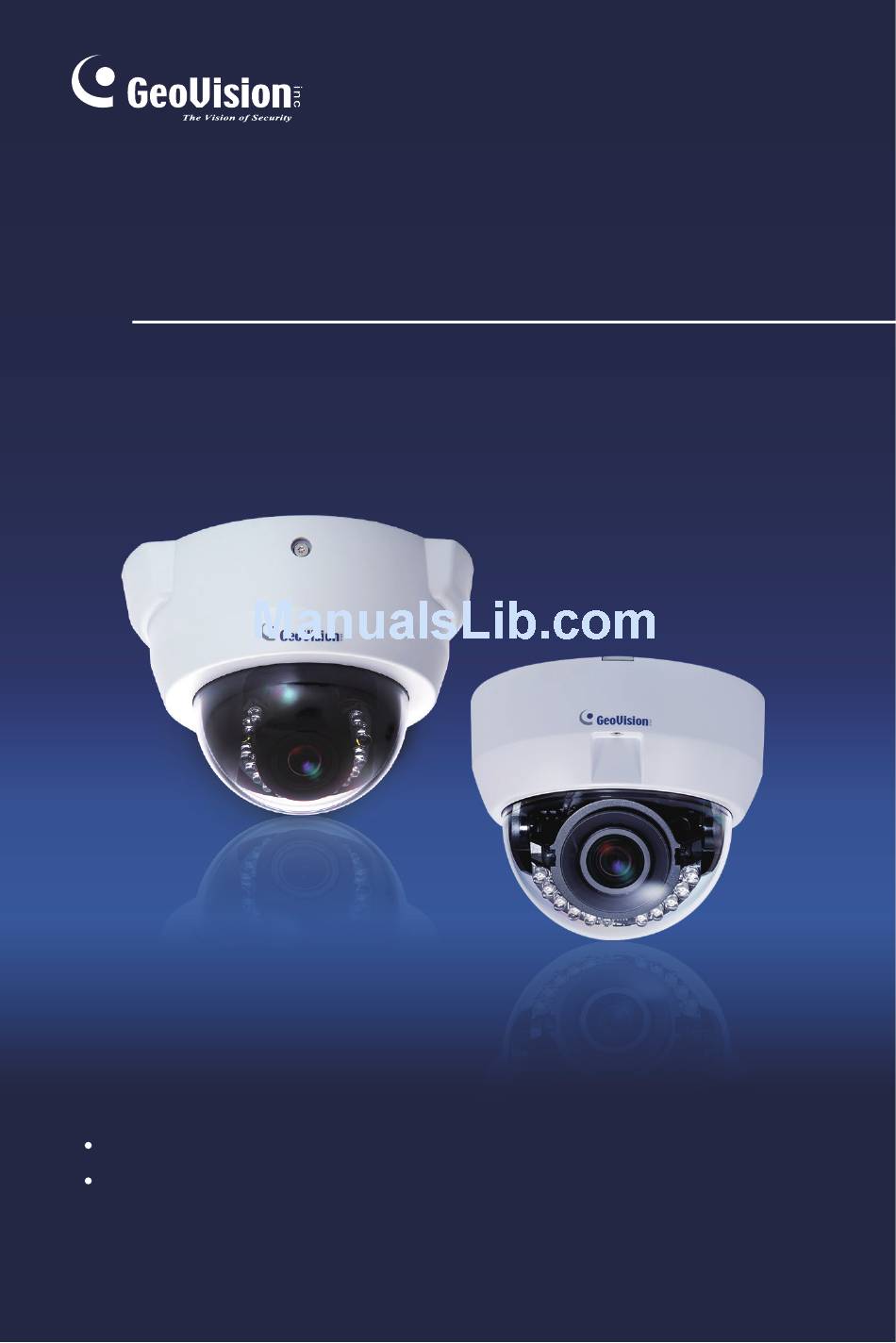

  • Page 1 GV-IPCam H.264 Hardware Manual Fixed IP Dome Target Fixed Dome Before attempting to connect or operate this product, please read these instructions carefully and save this manual for future use. ICH264TG2V10...
  • Page 2 GeoVision. Every effort has been made to ensure that the information in this manual is accurate. GeoVision, Inc. makes no expressed or implied warranty of any kind and assumes no responsibility for errors or omissions. No liability is assumed for incidental or consequential damages arising from the use of the information or products contained herein.

  • Page 3: Table Of Contents

    Contents Contents ................i Options ................iii Note for Adjusting Focus and Zoom......Chapter 1 Fixed IP Dome ..........1 1.1 Packing List ................3 1.1.1 Packing List for Hard-Ceiling Mount ......3 1.1.2 Packing List for In-Ceiling Mount........4 1.2 Features ...................5 1.3 Overview ..................7 1.4 Installation ................9 1.4.1 Hard-Ceiling Mount ............9...
  • Page 4 2.2 Features ................. 25 2.3 Overview ................27 2.4 Installation ................29 2.5 Connecting the Camera............2.6 Loading Factory Default............

  • Page 5: Options

    Options Optional devices can expand your camera’s capabilities and versatility. Contact your dealer for more information. Device Description The power adapter is available for all Fixed IP Dome Camera. Contact your sales representative for the Power Adapter countries and areas supported. The GV-PA191 PoE adapter is designed to provide GV-PA191 PoE power and network connection to the cameras over...

  • Page 6: Note For Adjusting Focus And Zoom

    Note for Adjusting Focus and Zoom When adjusting the Focus and Zoom Screws, do not over tighten the Focus and Zoom screws. The screws only need to be as tight as your finger can do it. It is not necessary to use any tools to get them tighter. Doing so can damage the structure of lens.

  • Page 7: Chapter 1 Fixed Ip Dome

    1.2 Features. The models are detailed below: Model No. Specification Description Auto Iris, f:3 ~ 9 1.3 MP Low Lux / 2 GV-FD220D mm, F/1.3, 1/3” MP / 3 MP, H.264, GV-FD320D D/N, Fixed IP Dome ø 14 mm lens mount 1.3 MP Low Lux,...
  • Page 8 Model No. Specification Description 1.3 MP Low Lux, H.264, D/N, 3x GV-FD1210 Optical Zoom, Fixed IP Dome 1.3 MP / 2 MP Super Motorized Auto Iris, f: 3 ~ 9 Low Lux, H.264, mm, F/1.2, 1/2.7’’ varifocal GV-FD1510 D/N, 3x Optical Lens ø...

  • Page 9: Packing List

    Fixed IP Camera 1.1 Packing List 1.1.1 Packing List for Hard-Ceiling Mount  Fixed IP Dome  Torx Wrench  Mounting Plate  Short Screw Anchor x 3  Ceiling Screw x 3  Plate Screw x 3  TV-out Wire ...

  • Page 10: Packing List For In-Ceiling Mount

    1.1.2 Packing List for In-Ceiling Mount  In-Ceiling Housing Cover  Mounting Plate  Mounting Bracket x 3  Copper Pillar x 3  Copper Pillar Screw x 6  Bracket Screw x 3  Thread Lock Screw  Housing Cover Thread ...

  • Page 11: Features

    1/2.8’’ progressive scan super low lux GV-FD2500 / 2510 CMOS GV-FD2400 / 2410 1/3.2’’ progressive scan CMOS GV-FD3400 / 3410 GV-FD220D 1/2.5’’ progressive scan CMOS GV-FD320D  Dual streams from H.264 or MJPEG  Frame rate Camera Model Frame Rate...
  • Page 12  Micro SD card slot (SD/SDHC) for local storage  NAS recording  Recording assigned by GV-Edge Recording Manager (Windows & Mac)  One sensor input and alarm output  TV-out support  Two-way audio  3D noise reduction (for GV-FD1500 / 1510 / 2500 / 2510) ...

  • Page 13: Overview

    Fixed IP Camera 1.3 Overview 10 11 12 13 14 15 Figure 1-1 Name Description Focus Screw Adjusts the focus of the camera. Zoom Screw Adjusts the zoom of the camera. Rotational Screw Loosens to adjust the camera angle. Tilt Screw Loosens the screw to tilt the camera.
  • Page 14 Name Description Audio In Connects a microphone for audio input. Audio Out Connects a speaker for audio output. LAN / PoE Connects to a 10/100 Ethernet or PoE. Connects to I/O devices. For details, see I/O Terminal Block 1.6 I/O Terminal Block. DC 12V Port Connects to power.

  • Page 15: Installation

    Fixed IP Camera 1.4 Installation The Fixed IP Dome is designed for indoors. With the standard packing, there are three ways to install the Fixed IP Dome: hard-ceiling mount, in- ceiling mount and wall-surface mount. Note: You may also install the camera to ceilings, wall corners (concave or convex), and poles with optional mounting kits.
  • Page 16 Unpack the camera package and take out the camera body. Use the torx wrench to loosen the housing cover at the front and the back. Figure 1-3 Take out the camera body Figure 1-4 Secure the camera body to the mounting plate with three ceiling screws.
  • Page 17 Fixed IP Camera Connect the network, power and other cables to the camera. See 1.5 Connecting the Camera. Access the live view. See 2.1 Accessing the Live View, GV-IPCam H.264 Firmware Manual. Based on the live view, adjust the camera to a desired angle as illustrated below.
  • Page 18 Rotational Adjustment Figure 1-8 Adjust image clarity using the GV-IP Device Utility program. For details, see 2.2 Adjusting Image Clarity, GV-IPCam H.264 Firmware Manual. Secure the housing cover as shown in step 2. Remove the indicated part when necessary. Figure 1-9 Note: Adjust the black mask inside the housing cover to make sure the camera view is not obscured.

  • Page 19: In-Ceiling Mount

    Fixed IP Camera 1.4.2 In-Ceiling Mount Figure 1-10 Follow step 2 in the 1.4.1 Hard-Ceiling Mount to remove the housing cover and take out the camera body. Paste the supplied sticker onto a desired location on the ceiling and cut a circle on the ceiling along the edge of the sticker. On the mounting plate, locate the 3 holes labeled as 1 and insert the 3 copper pillars from the back side.
  • Page 20 From the side with the numbering, secure the copper pillars with 3 copper pillar screws. Figure 1-12 Place the 3 mounting brackets at the indent next to the copper pillars (labeled as 2 on the mounting plate) and secure them using the 3 bracket screws.
  • Page 21 Fixed IP Camera Place the mounting plate on the camera body with the copper pillars inserted in the locations indicated below. The arrow on the mounting plate should be pointing toward the front of the camera. Figure 1-14 From the bottom of the camera, secure the copper pillars using the 3 copper pillars screws.
  • Page 22 14. Use the housing cover thread and the thread lock screw to attach the housing cover to the camera body. Figure 1-16 15. Place the housing cover on the camera body with the GeoVision logo pointing toward the front of the camera. Figure 1-17...

  • Page 23: Wall-Surface Mount

    Fixed IP Camera 1.4.3 Wall-Surface Mount Figure 1-18 Follow step 2 in 1.4.1 Hard-Ceiling Mount section to remove the housing cover and take out the camera body. Paste the supplied sticker onto a desired location on the wall. Drill the three red dots, and the ellipse mark only if you wish to run the wires into the wall.
  • Page 24 Access the live view. See 2.1 Accessing the Live View, GV-IPCam H.264 Firmware Manual. Follow steps 6 and 7 in 1.4.1 Hard-Ceiling Mount section to adjust the angle, focus and zoom of the camera. Follow step 8 in 1.4.1 Hard-Ceiling Mount section to secure the housing cover.

  • Page 25: Connecting The Camera

    Fixed IP Camera 1.5 Connecting the Camera Figure 1-20 Use a standard network cable to connect the camera to your network. Optionally connect a speaker and an external microphone. Optionally connect a monitor using a Video Out wire. Enable this function by selecting your signal format at the TV Out field on the Web interface.

  • Page 26: I/O Terminal Block

    1.6 I/O Terminal Block The terminal block, located on the back panel of the Fixed IP Dome, provides the interface to one input and one output devices. The I/O terminal block can be used for applications such as motion detection, event alerts via E-Mail and FTP, and center monitoring through Center V2 and VSM.

  • Page 27: Voltage Load Expansion (Optional)

    Fixed IP Camera 1.6.2 Voltage Load Expansion (Optional) The camera on its own can only drive a maximum load of 200mA 5V DC. To expand the maximum voltage load to 10A 250V AC / 10A 125V AC / 5A 100V DC), connect the camera to a GV-Relay V2 module (optional product).

  • Page 28: Loading Factory Default

    1.7 Loading Factory Default 1. Keep the power and network cables (or PoE) connected to the camera. 2. Use a pin to press and hold the default button on the panel. Status LED Default button Figure 1-23 3. Release the default button when the status LED blinks. This shall take about 8 seconds.

  • Page 29: Chapter 2 Target Fixed Dome

    Target Fixed Dome Chapter 2 Target Fixed Dome The Target Fixed Dome (GV-EFD) is an indoor, fixed network camera equipped with an automatic IR-cut filter and IR LEDs for day and night surveillance. Adjustable in 3 axis (pan, tilt and rotate), it offers an entry- level surveillance solution with all the essential features and excellent image quality.

  • Page 30: Packing List

    2.1 Packing List  Target Fixed IP Dome  Torx Wrench  Screw x 3  Screw Anchor x 3  TV-Out Wire  Installation sticker  GV-IPCam H.264 Software DVD  Warranty Card  GV-NVR Software DVD Note: Power adapter can be purchased upon request.

  • Page 31: Features

    Target Fixed Dome 2.2 Features  1/2.8” progressive scan super low lux CMOS  Frame rate: Camera Model Frame Rate GV-EFD2101 Up to 30 fps at 1920 x 1080 GV-EFD3101 Up to 30 fps at 2048 x 1536  Dual streams from H.264 or MJPEG ...
  • Page 32  ONVIF (Profile S) conformant Note: For optimal performance and compatibility, it is highly recommended to use a GV-NAS System.

  • Page 33: Overview

    Target Fixed Dome 2.3 Overview Figure 2-2 Name Description Lens Receives image inputs. Focus Screw Adjusts the focus of the camera. Zoom Screw Adjusts the zoom of the camera. Default Resets the camera to factory default. For details, Button see 2.6 Loading Factory Default. TV-Out Provides video inputs (D1 resolution).
  • Page 34 Name Description Link Turns on (green) when the network is connected. Turns on (orange) when data are being transmitted. DC 12V Port Connects to power. LAN / PoE Connects to a 10/100 Ethernet or PoE. Tilt Screw Loosens the screw to adjust tilt angle. Note: The TV-out function can only be used during installation to adjust the focus of the camera.

  • Page 35: Installation

    Target Fixed Dome 2.4 Installation The Target Fixed Dome can be installed on the wall or the ceiling. Before installing the camera, make sure the installing site is shielded from rain and moisture. Use the supplied torx wrench to loosen three screws on the housing cover, and take out the camera body.
  • Page 36 Place the installation sticker where you want to install it, and make 3 marks on the ceiling or the wall for screw anchors. Figure 2-4 Drill the marks and insert the screw anchors. Connect the camera to network and power. For details, see 2.5 Connecting the Camera.
  • Page 37 Target Fixed Dome Loosen the tile screw, pan screw or rotational screw. Adjust the angles based on the live view as needed, and tighten the screws again. Figure 2-6 Place the housing cover back and tighten the three screws to secure it.

  • Page 38: Connecting The Camera

    2.5 Connecting the Camera Figure 2-8 Connect power using one of the following methods:  Plug the power adapter to the 12V terminal block. The power adapter is an optional device. For detail, see Options in the manual.  Use the Power over Ethernet (PoE) function and the power will be provided over the network cable.

  • Page 39: Loading Factory Default

    Target Fixed Dome 2.6 Loading Factory Default Keep the power and network cables (or PoE) connected to the camera. Press and hold the default button for about 8 seconds. Figure 2-9 Release the default button when the status LED blinks. Figure 2-10 When the status LED fades, the process of loading default settings is completed and the camera reboots automatically...
