3.

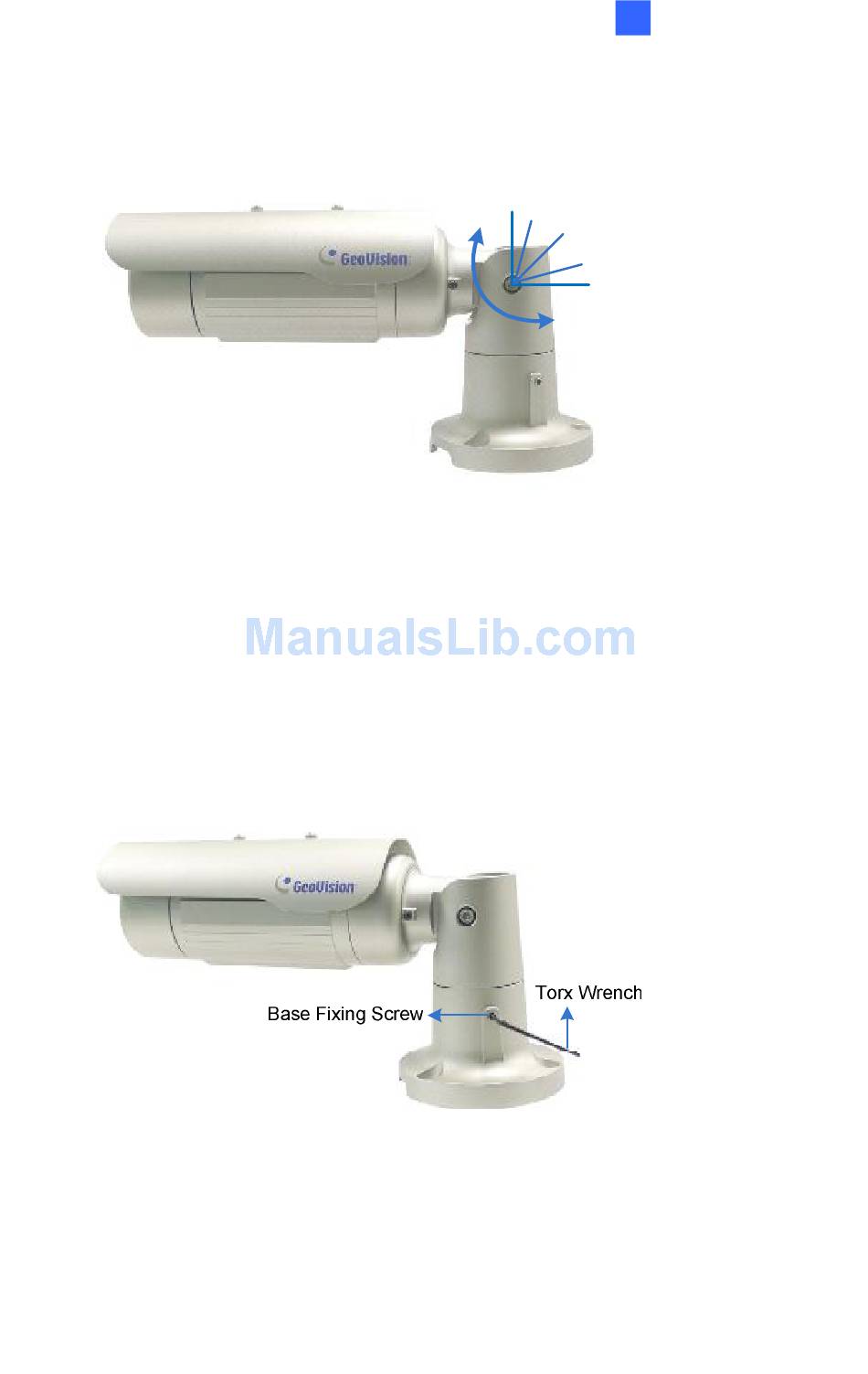

Adjust the angle of camera body to 90°, 112.5°, 135°, 157.5° or 180°.
Then move the camera base to the left to combine the gears.
4.
Fasten the tilting lock screw.
Third Shaft
You can adjust the camera base by 360°.
1.
Unscrew the base fixing screw with the torx wrench.
Figure 6-12
Figure 6-13
6
°
180
157.5°
135°
112.5°
90°
Bullet Camera
77
