8.7 I/O Terminal Block

The 3-pin terminal block, located on the back panel of the PTZ Camera,
provides the interface to one digital input and one digital output. The I/O
terminal block can be used for applications such as motion detection, event
alerts via E-Mail and FTP, and center monitoring through Center V2 and
VSM.

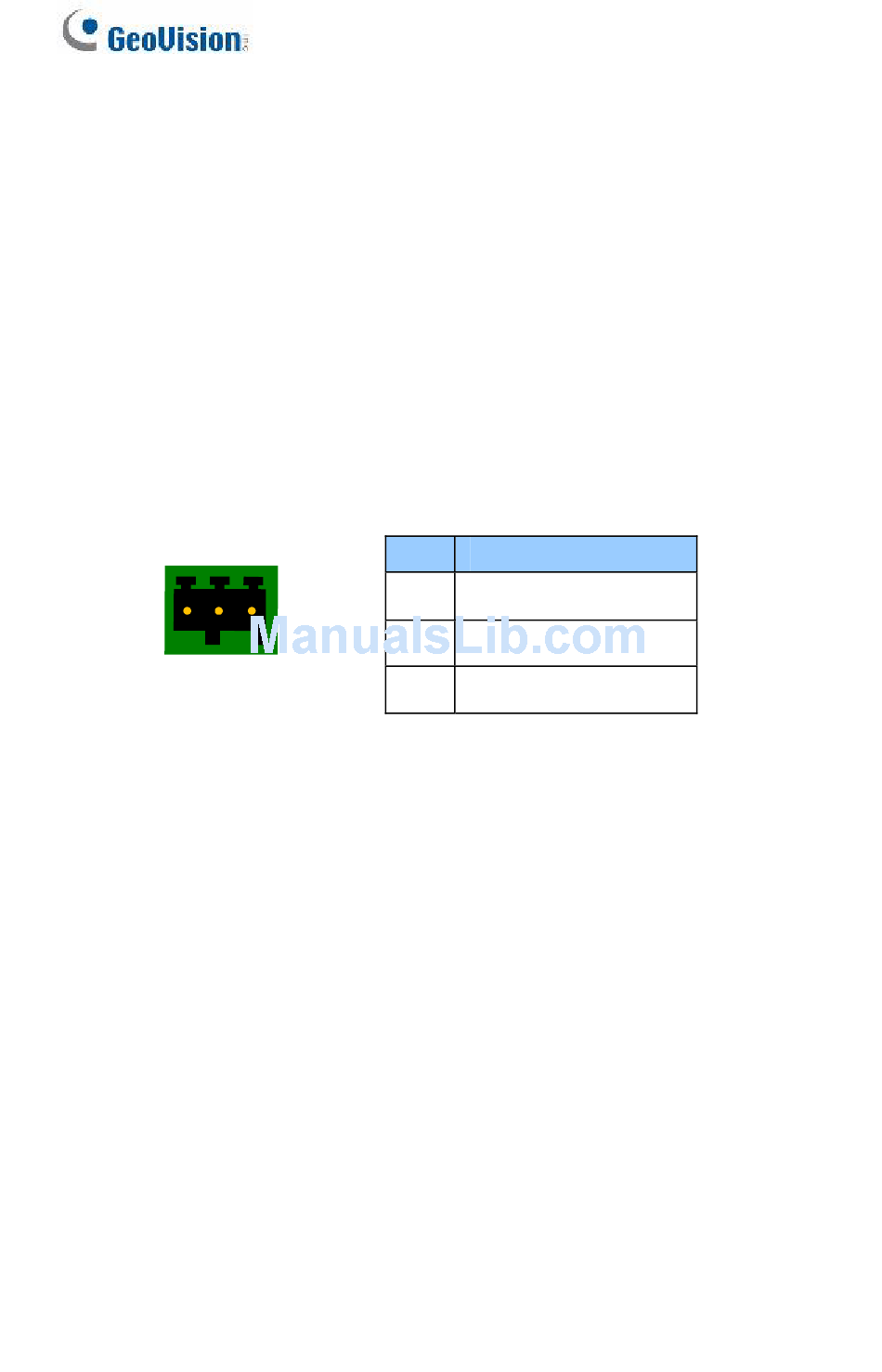

8.7.1 Pin Assignment

The pin assignment for the terminal block:
I/O
1 2
Figure 8-13
For details on how to enable an installed I/O device, see 16.2 I/O Settings.
108
Pin
1
2
3
3
Function
Output
GND
Input
