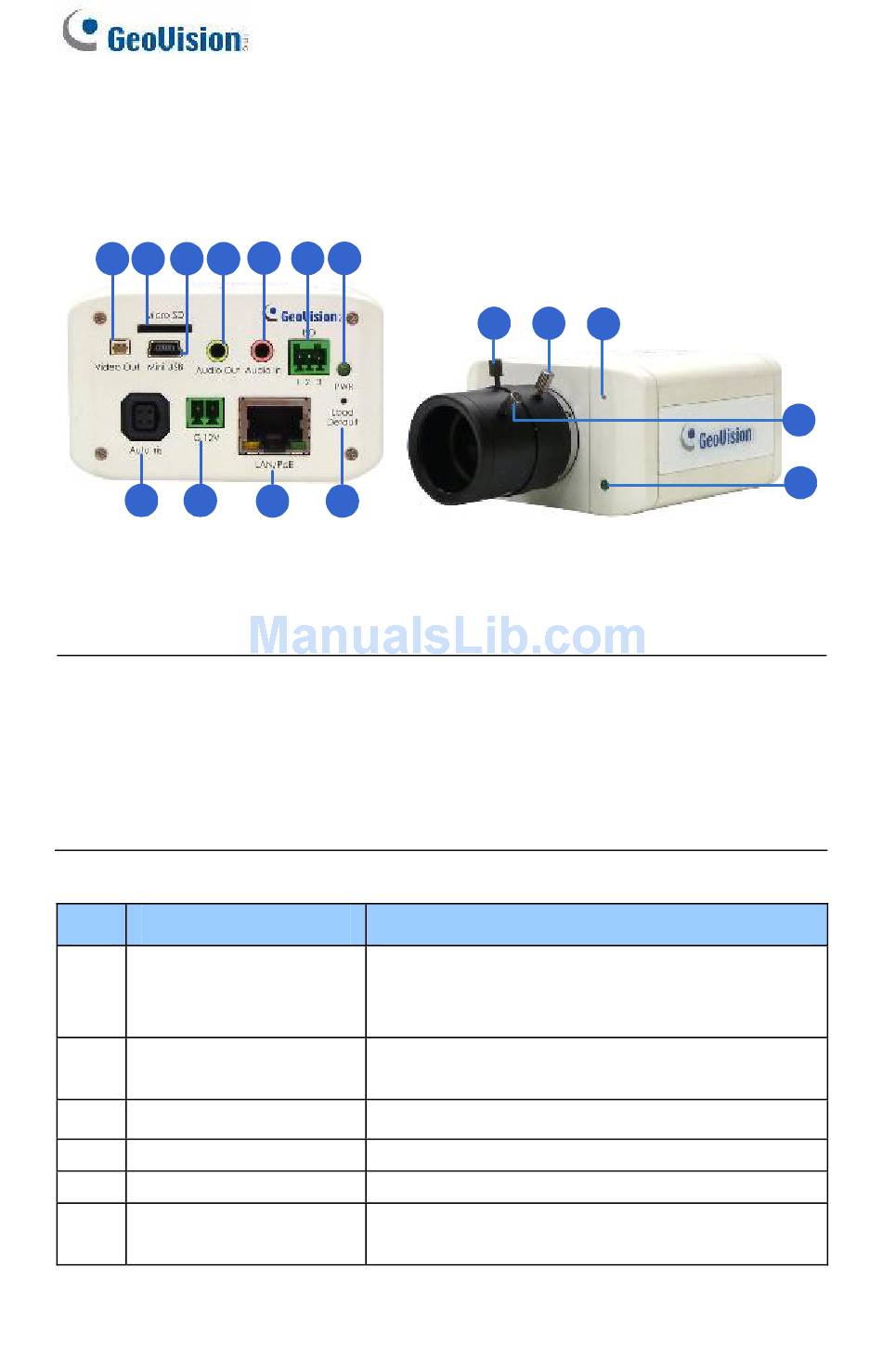

2.3.2 GV-BX1200 Series / 1300 Series / 2400 Series /
3400 Series / 5300
4 5
1 2 3
8 9
Note:
1. The Zoom Screw (No. 13) is not available in GV-BX1200-0F ~ 2F,
GV-BX1300-0F ~ 2F, GV-BX2400-0F ~ 2F and GV-BX3400-0F ~
2F).
2. The Iris Screw (No. 12) is only available in GV-BX5300.
No. Name
1 Video Out
2 Memory Card Slot
3 Mini USB Slot
4 Audio Out
5 Audio In
6 I/O Terminal Block
18
6 7
10 11
Figure 2-2
Description
Connects to a portable monitor for setting
the focus and angle of Box Camera
during initial installation.
Inserts a micro SD / SDHC / SDXC card
to store recording data.
Connects to a GV-WiFi Adapter.
Connects a speaker for audio output.
Connects a microphone for audio input.
Connects to I/O devices. For details, see
2.6 I/O Terminal Block.
12 13
14
15
16
