5.3 Overview

5.3.1 GV-MFD120 / 130 / 220 / 320 / 520

1
No. Name
1 Default Button
2 Lens
3 Tilt Screw
4 Built-In Microphone
5 Pan Screw
6 LED Indicators
7 Memory Card Slot
2 3 4

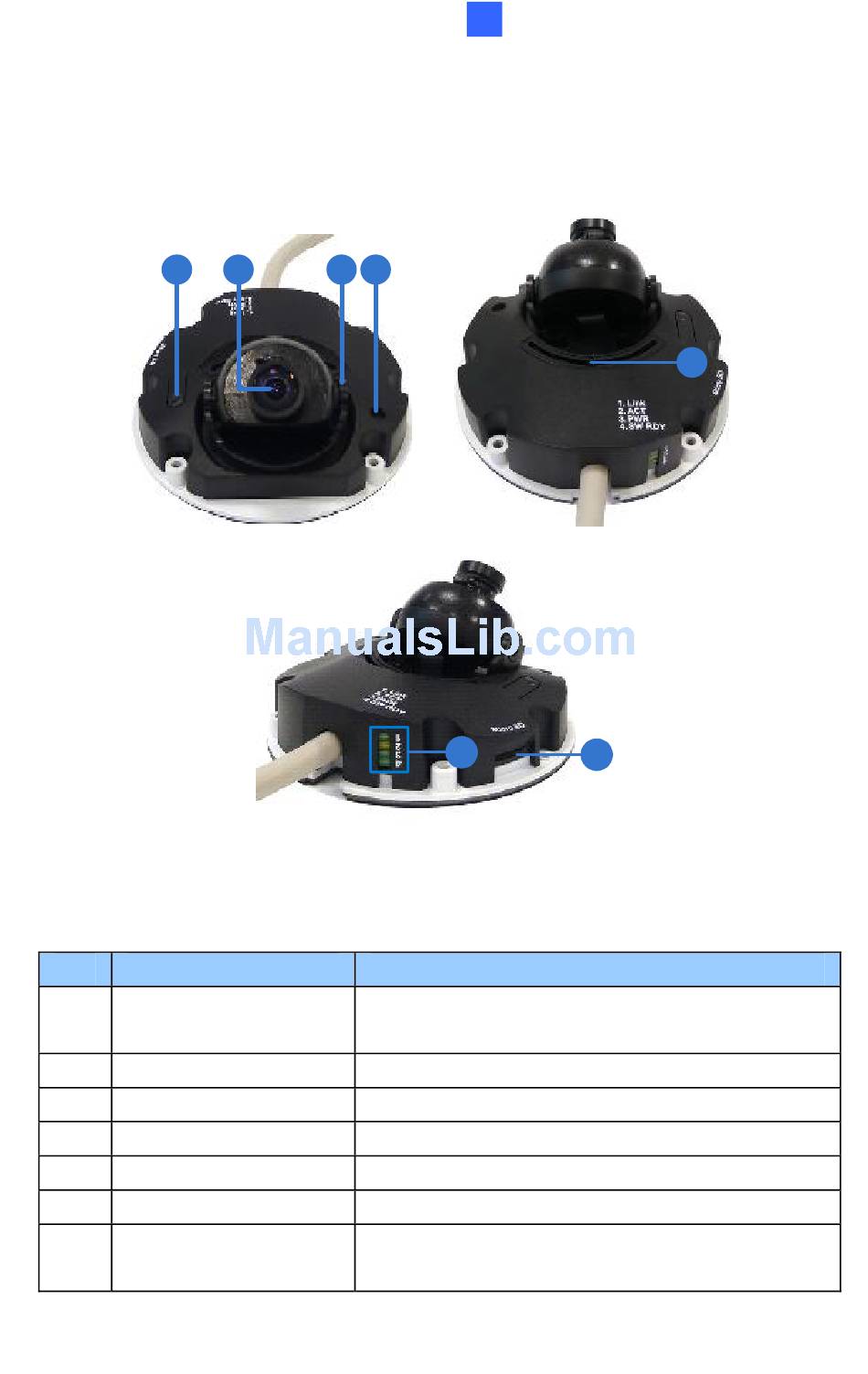

Figure 5-1
Description
Resets the camera to factory default. See
18.3 Restoring to Factory Default Settings.
Receives image inputs.
Loosens the screw to adjust tilt angle.
Provides one-way audio.
Loosens the screw to pan.
See LED Indicators below.
Inserts a micro SD / SDHC / SDXC card to
store recording data.
Mini Fixed & Rugged Dome
