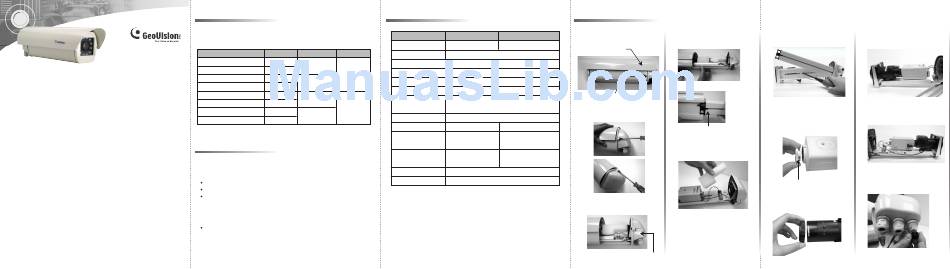

GeoVision GV-IRCAM 10M EIA AC24V Installation Manual

GV-IRCAM
Installation Guide
(10-Meter / 20-Meter Models)
Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use.
© 2008 July GeoVision Inc. All rights reserved. IRCAMV10-B
Models
GV-IRCAM offers a selection of models that support different power supplies, optimal
distances and video formats to meet various needs.
Model Power Supply Optimal Distance Video Format
GV-IRCAM 10M EIA AC24V AC
10 M
GV-IRCAM 10M EIA DC12V DC
NTSC
GV-IRCAM 20M EIA AC24V AC
20 M
GV-IRCAM 20M EIA DC12V DC
GV-IRCAM 10M CCIR AC24V AC
10 M
GV-IRCAM 10M CCIR DC12V DC
PAL
GV-IRCAM 20M CCIR AC24V AC
20 M
GV-IRCAM 20M CCIR DC12V DC
Packing List
GV-IRCAM 10M EIA DC12V / GV-IRCAM 10M CCIR DC12V
GV-IRCAM 20M EIA DC12V / GV-IRCAM 20M CCIR DC12V
AC Power Cable x 1
Power Adapter (100-240V, 12V/3A) x 1
Outdoor Mounting Bracket x 1
GV-IRCAM 10M EIA AC24V / GV-IRCAM 10M CCIR AC24V
GV-IRCAM 20M EIA AC24V / GV-IRCAM 20M CCIR AC24V
Outdoor Mounting Bracket x 1
Specifications
Model GV-IRCAM 10M GV-IRCAM 20M
Distance (optimal) 7~15M 15~25M
Sensor 1/3" B/W EXview CCD
Resolution 600 TVL
Lens Focal Length 5 ~ 50 mm, 10X 10 ~ 120 mm, 12X
Construction Robust aluminum with weatherproof sun-shield
Protection classification IP 66
Environmental Operation: -20˚C ~ 50˚C
Storage: -30˚C ~ 60˚C
Power Supply AC 24V / DC 12V
Power Consumption 15W 20W
LED Quantity 12 high-efficiency 24 high-efficiency
reflex LED reflex LED
Illumination Range 20M (object of view 30M (object of view
reflecting IR light) reflecting IR light)
Illumination View Angle 30˚
Illuminator Life 25,000 hrs
Installing Camera Module
1. Push the sun shield forward to align 4. Slightly lift the camera module and
with the back of camera enclosure. slide it out completely.
Sun Shield
Camera Enclosure Back
2. Loosen the set screws on the back of
the camera enclosure.
Completely slide the camera
module out
5. Remove the foam.
3. Pull out the camera module.
* For the users of all 10-meter models,
skip Steps 6 to 10 and continue to
Step 11.
Camera Module
6. On the back of the pedestal, loosen the 9. Mount the camera onto the pedestal
screw of the camera. and align the lens with LED.
7. A CS mount lens adaptor is attached to 10. Screw the camera on the pedestal.
the camera. Mount it between the lens
and the camera.
CS Mount Lens Adaptor
11. Loosen the screw cap on the right.
8. Remove the lens caps.
Continued on the reverse >>
