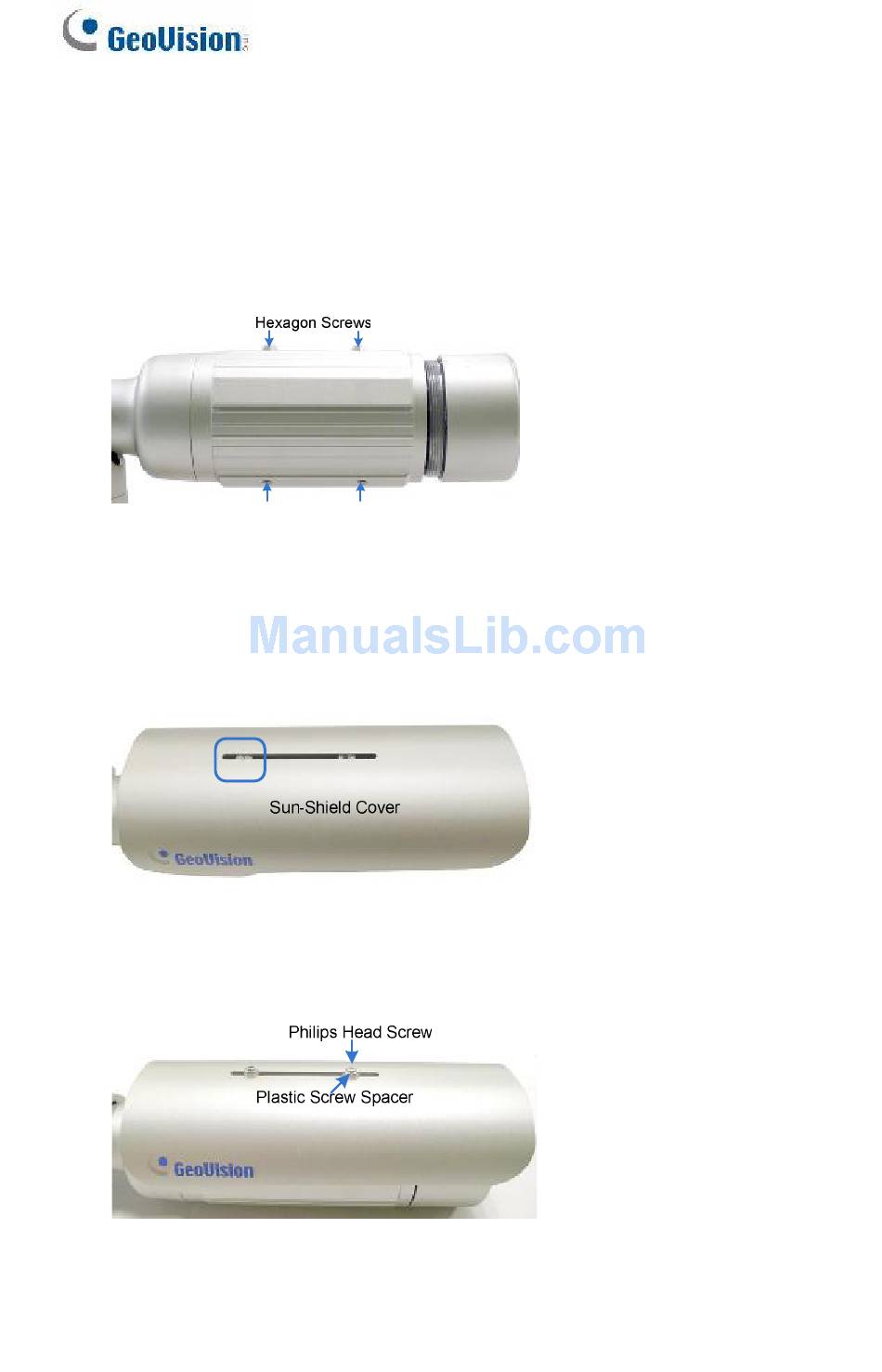

6.4.4 Installing the Sun-Shield Cover

After setting up the Bullet Camera, now you can install the sun-shield cover
to the camera.
1.
Fasten the hexagon screws either on top or below the camera.
2.
Put the sun-shield cover on top of hexagon screws. Make sure to aim
the rear hexagon screw at the edge of the sun-shield cover's aperture
for optimal sun-shield performance.
3.
Fasten the Philips head screws with the plastic screw spacers.
82
Figure 6-19
Figure 6-20
Figure 6-21
