4.

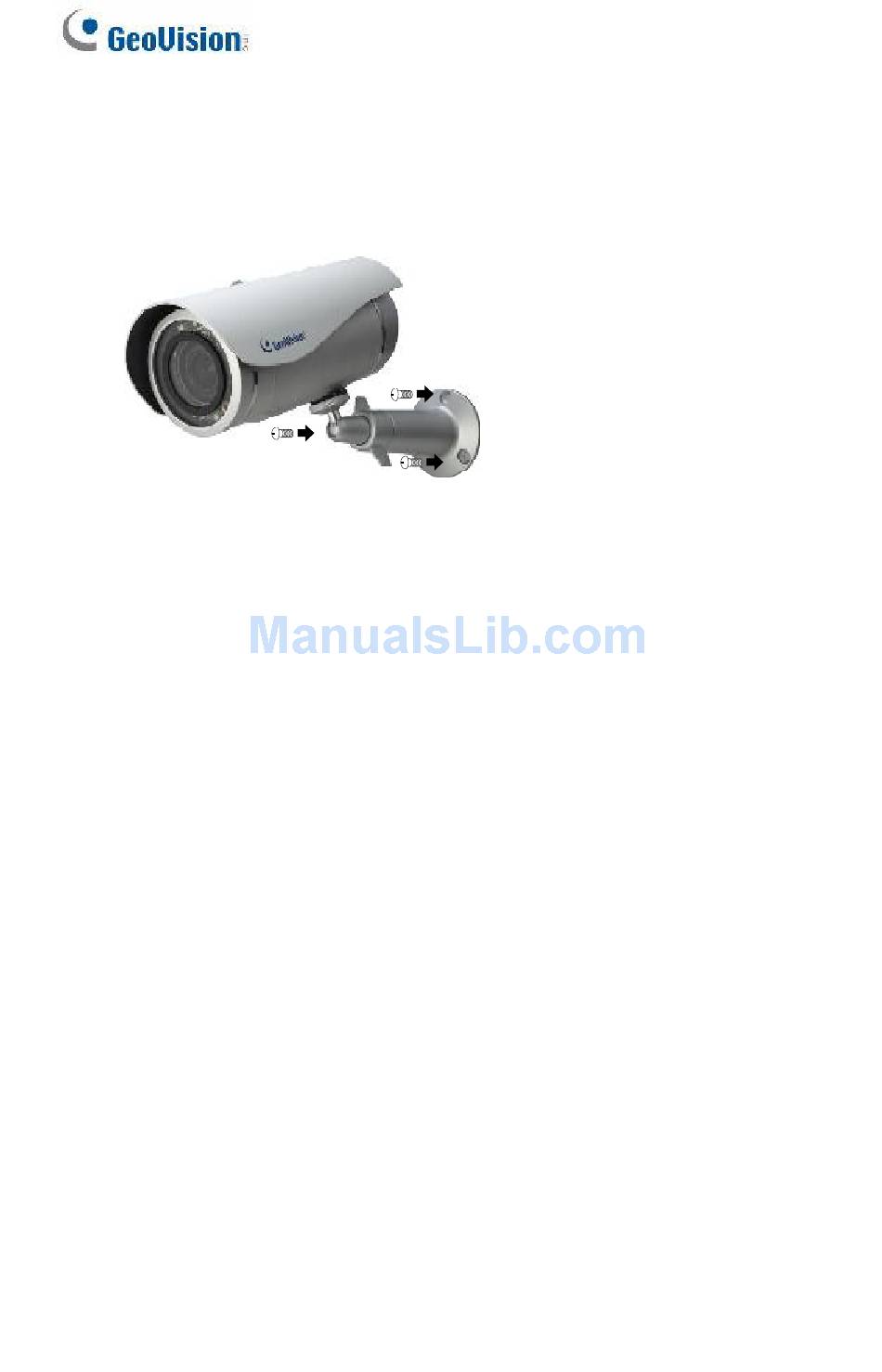

Install the camera to the wall or ceiling using the screw anchors and
self-tapping screws. You can also stand the camera on a plain
surface
5.
Remove the protection sticker from the camera's cover.
6.
Connect the wires and cable connector to the camera. See 7.4.1
Connecting the Camera and 7.4.2 Waterproofing the Cable.
7.
Access the live view. For details, see 14.1. Accessing the Live View.
8.
Adjust angles of the camera body based on the live view.
9.
For varifocal models (GV-UBL1211 / 2411 / 3411), adjust the focus.
For details, see 15.2.2 The Control Panel of the Live View Window.
90
Figure 7-8
