8.7.2 Voltage Load Expansion (Optional)

The camera can only drive a maximum load of 200mA 5V DC. Connect the
camera to a GV-Relay V2 module (optional product) to expand the
maximum voltage load. See a comparison on maximum voltage loads with
and without GV-Relay below:
Model
GV-PTZ010D

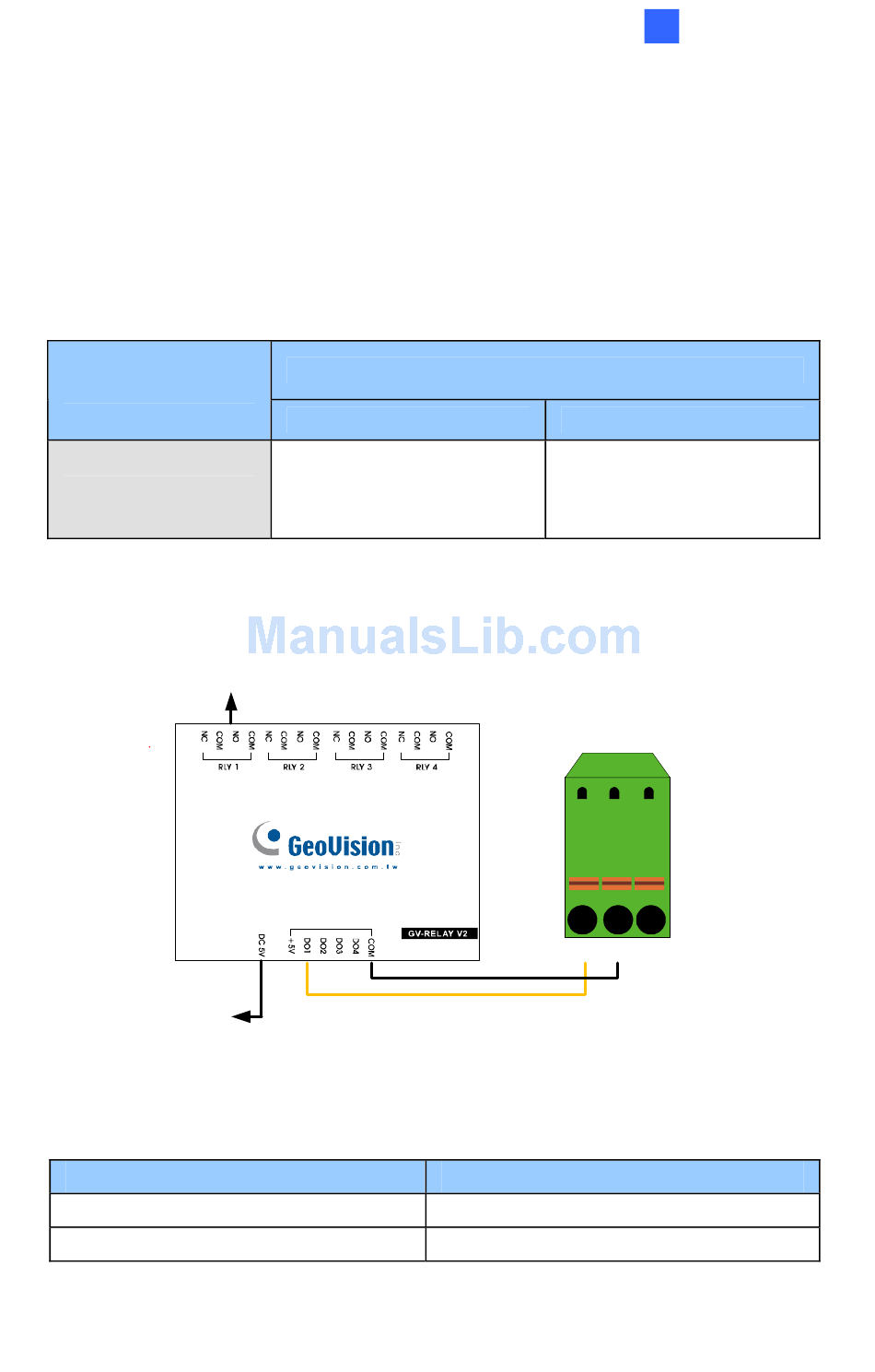

To connect the GV-Relay V2 module to the PTZ Camera, refer to the figure
and table below.
Output Device
Connect to Power
GV-Relay V2
COM
DO1
Maximum Voltage Load
Without GV-Relay V2
200mA 5V DC
Figure 8-14
I/O Wires
Pin 2 (Ground)
Pin 1 (Output)
8
PTZ Camera
With GV-Relay V2
10A 250V AC,
10A 125V AC,
5A 100V DC
I/O
2
1 3
