10.5.2 Power Connection

There are two ways to supply power to the camera:
•
Use a Power over Ethernet (PoE) adapter to connect the camera to the
network, and the power will be provided at the same time.
•
Use the supplied Terminal Block and power adapter. Follow the steps
below to connect the Terminal Block and the power adapter.

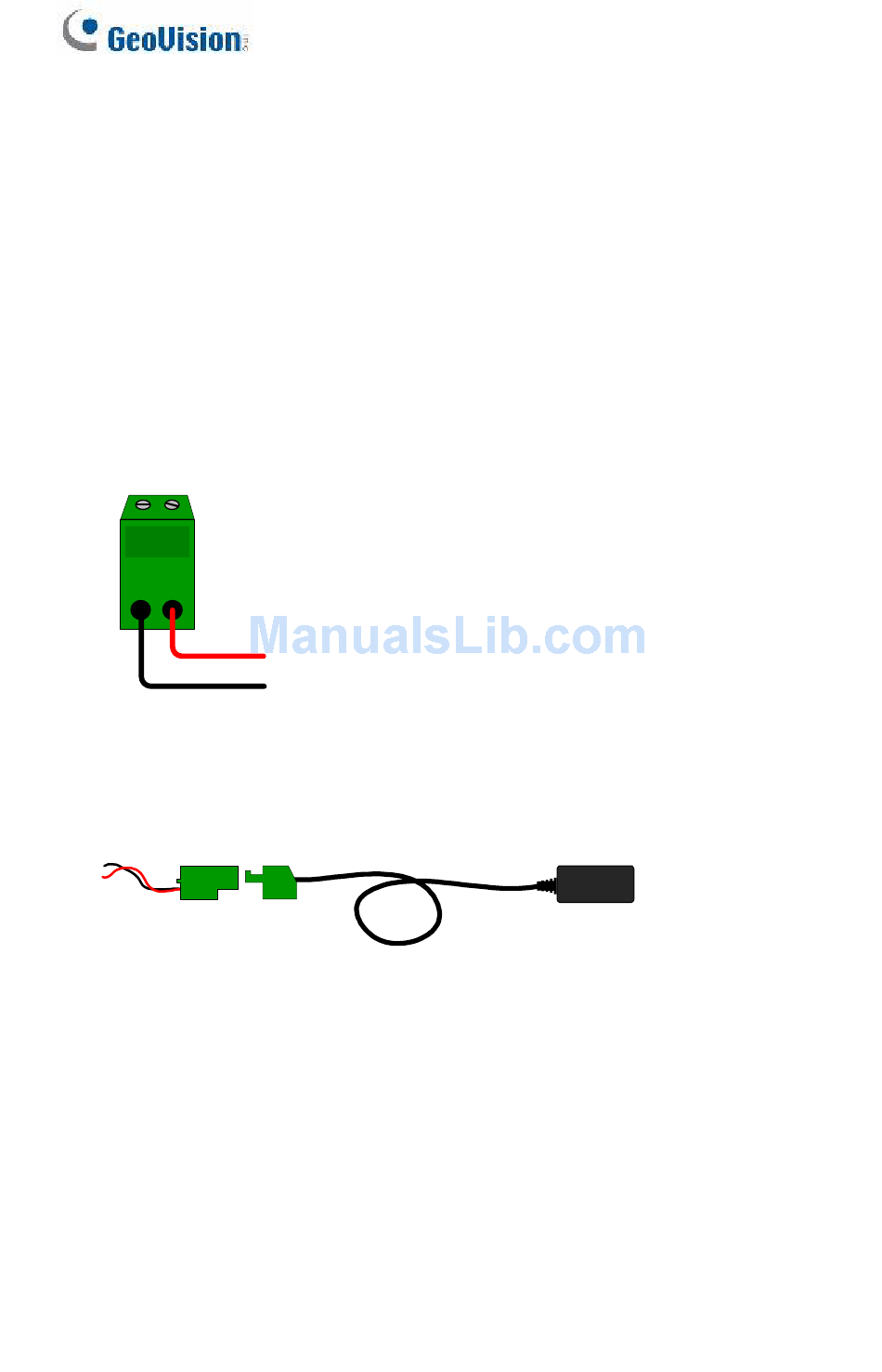

1. Insert the thin black wire of the Vandal Proof IP Dome to the left pin
and the red wire to the right pin.
Figure 10-15
2. Connect the DC 12V Power Adapter to the Terminal Block.
Terminal Block
148
DC 12V Power Adaptor
Figure 10-16
