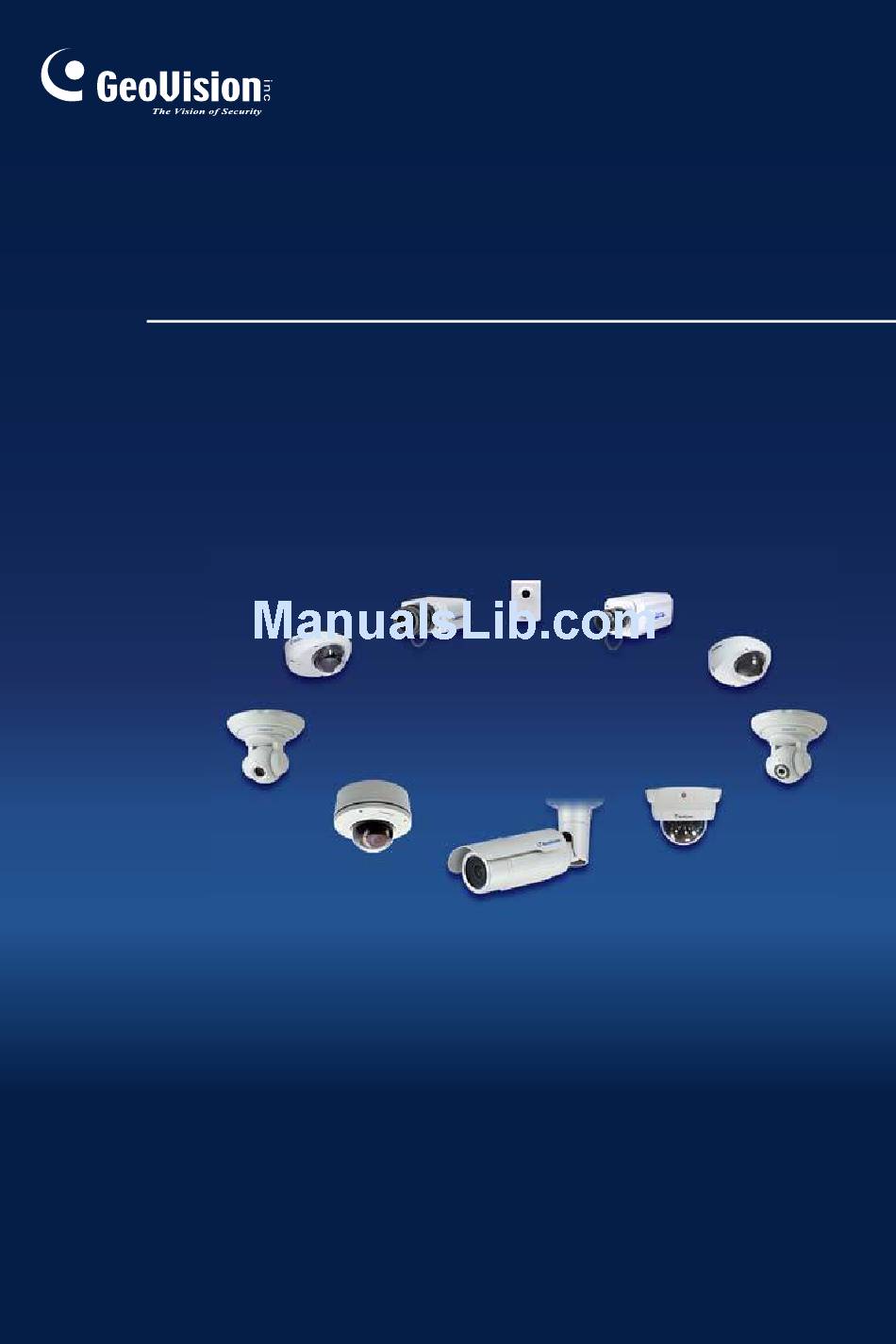

GV-IPCam H.264
User's Manual
Before attempting to connect or operate this product,
ICH264TIV204-A
please read these instructions carefully and save this manual for future use.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GV-IPCAM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GeoVision GV-IPCAM

Summary of Contents for GeoVision GV-IPCAM

  • Page 1 GV-IPCam H.264 User's Manual Before attempting to connect or operate this product, ICH264TIV204-A please read these instructions carefully and save this manual for future use.
  • Page 2 GeoVision. Every effort has been made to ensure that the information in this manual is accurate. GeoVision, Inc. makes no expressed or implied warranty of any kind and assumes no responsibility for errors or omissions. No liability is assumed for incidental or consequential damages arising from the use of the information or products contained herein.
  • Page 3 UL Certification for GV-MFD120/130/220/320/520 The GV-IPCAM H.264 uses a 3.0V CR2032 Lithium battery as the power supply for its internal real-time clock (RTC). The battery should not be replaced unless required! If the battery does need replacing, please observe the following: •...
  • Page 4 Preface Welcome to the GV-IPCAM H.264 User’s Manual. The GV-IPCAM H.264 has a series of models designed to meet different needs. This Manual is designed for the following models and firmware versions: Note: GV-IPCam H.264 with 128 MB flash memory is only supported in V1.09 or later.
  • Page 5 Firmware Model Model Number Version GV-BX1200-0F ~ 2F GV-BX1300-0F ~ 2F Fixed Lens GV-BX2400-0F ~ 2F GV-BX3400-0F ~ 2F GV-BX1200-3V Box Camera V2.01 GV-BX1300-3V GV-BX2400-3V GV-BX2400-4V Varifocal Lens GV-BX3400-4V GV-BX3400-5V GV-BX5300 GV-UBX1301 Series Ultra Box GV-UBX2301 Series Fixed Lens V2.04 Camera GV-UBX3301 Series GV-BX120D-E...
  • Page 6 Firmware Model Model Number Version GV-MDR120 Mini Fixed GV-MDR220 Fixed Lens V2.01 Rugged Dome GV-MDR320 GV-MDR520 GV-BL120D GV-BL130D V2.01 GV-BL220D Varifocal Lens GV-BL320D GV-BL1200 V2.03 Bullet Camera GV-BL1300 GV-BL2400 Varifocal Lens GV-BL3400 GV-BL1210 V2.04 GV-BL2410 Zoom Lens GV-BL3410 GV-BL5310 GV-UBL1211 Zoom Lens GV-UBL2411 Ultra Bullet...
  • Page 7 Firmware Model Model Number Version NTSC PTZ Camera GV-PTZ010D V1.08 PT Camera GV-PT110D V1.08 GV-FD120D Varifocal GV-FD220D Fixed IP Dome V2.01 Lens GV-FD320D GV-CB120 GV-CB220 Cube Camera Fixed Lens V2.01 GV-CBW120 GV-CBW220 GV-CA120 Advanced GV-CA220 Fixed Lens V2.01 Cube Camera GV-CAW120 GV-CAW220...
  • Page 8 Firmware Model Model Number Version GV-VD120D (IK10+, Transparent Cover) GV-VD121D (IK10+, Smoked Cover) GV-VD122D (IK7, Transparent Cover) GV-VD123D (IK7, Smoked Cover) GV-VD220D (IK10+, Transparent Cover) GV-VD221D Vandal Proof (IK10+, Smoked Cover) Varifocal Lens V2.01 IP Dome GV-VD222D (IK7, Transparent Cover) GV-VD223D (IK7, Smoked Cover) GV-VD320D...

  • Page 9: Table Of Contents

    2.1 Packing List................12 2.2 Features..................13 2.2.1 Wide Dynamic Range Pro ........... 15 For GV-IPCam H.264 models that support WDR, the WDR effect is achieved through software programming........15 2.3 Overview..................16 2.3.1 GV-BX120D / 130D Series / 140DW / 220D Series / 320D Series / 520D-0................
  • Page 10 2.5 Accessory Installation ..............24 2.5.1 C-Mount Lenses..............24 2.5.2 Infrared Illuminators (Optional) ..........25 2.6 I/O Terminal Block ..............26 2.6.1 Pin Assignment ..............26 2.6.2 Connecting to GV-Relay V2 (Optional) ........ 27 Chapter 3 Ultra Box Camera ..........28 3.1 Packing List................29 3.2 Features..................30 3.3 Overview..................31 3.4 Installation.................32...
  • Page 11 5.4.1 GV-MFD Series..............55 5.4.2 GV-MDR Series ..............57 5.5 Connecting the Camera.............62 5.5.1 Wire Definition..............62 5.5.2 Power and Network Connection ........... 63 5.5.3 Vehicle Installation ............... 64 Chapter 6 Bullet Camera ..........65 6.1 Packing List................66 6.2 Features..................67 6.3 Overview..................69 6.4 Installation.................70 6.4.1 Connecting the Camera ............
  • Page 12 8.6 Focus Adjustment..............107 8.7 I/O Terminal Block ..............108 8.7.1 Pin Assignment ..............108 8.7.2 Voltage Load Expansion (Optional) ........109 8.8 PTZ Control ................110 8.8.1 The PTZ Control Panel............110 8.8.2 Automatic Focus ..............112 8.8.3 PTZ Camera Settings............112 8.8.4 Image Settings ..............
  • Page 13 10.4.2 In-Ceiling Mount .............. 144 10.5 Connecting the Camera ............147 10.5.1 Wire Definition..............147 10.5.2 Power Connection............148 10.5.3 Voltage Load Expansion (Optional) ......... 149 Chapter 11 Fixed IP Dome ...........150 11.1 Packing List................151 11.1.1 Packing List for Hard-Ceiling Mount......... 151 11.1.2 Packing List for In-Ceiling Mount ........
  • Page 14 13.5 Connecting the Camera ............183 Chapter 14 Getting Started ..........184 14.1 Accessing the Live View............184 14.1.1 Checking the Dynamic IP Address........186 14.1.2 Configuring the IP Address..........188 14.1.3 Configuring the Wireless Connection....... 190 14.2 Adjusting Image Clarity ............193 14.2.1 Using Focus Adjustment Cap .......... 196 14.2.2 Locations of Adjustment Screws ........
  • Page 15 16.1.2 Motion Detection ............. 243 16.1.3 Privacy Mask..............245 16.1.4 Text Overlay..............246 16.1.5 Tampering Alarm............. 248 16.1.6 Visual Automation ............250 16.2 I/O Settings................252 16.2.1 Input Settings ..............253 16.2.2 Output Settings ............... 255 16.2.3 PTZ Settings ..............256 16.3 Events and Alerts..............257 16.3.1 E-mail ................
  • Page 16 16.8.1 Date & Time Settings ............291 16.8.2 GPS Maps Settings ............293 16.8.3 Storage Settings.............. 295 16.8.4 User Account ..............297 16.8.5 Log Information ............... 298 16.8.6 System Log..............299 16.8.7 Tools................301 16.8.8 Language................ 303 Chapter 17 Recording and Playback ......304 17.1 Recording ................304 17.2 Playback ................305 17.2.1 Playback Using the Memory Card........
  • Page 17 19.1.1 Customizing IP Camera Settings ........346 19.2 Remote Monitoring with Multi View ........348 19.2.1 Connecting to the IP Camera .......... 348 19.3 Remote Monitoring with E-Map..........349 19.3.1 Creating an E-Map for the IP Camera......349 19.3.2 Connecting to the IP Camera .......... 351 Chapter 20 CMS Configurations........352 20.1 Center V2 ................352 20.2 VSM..................355...
  • Page 18 Specifications: PT Camera ...........439 Specifications: Vandal Proof IP Dome......444 Specifications: Fixed IP Dome ........452 Specifications: Cube Camera ........459 Specifications: Advanced Cube Camera.....465 Appendix ……….............471 A. Settings for Internet Explorer 8 ..........471 B. Supported Lenses for Box Camera .........472 C. Resolution and Frame Rate .............473 D.

  • Page 19: Naming And Definition

    Naming and Definition GeoVision Analog and Digital Video Recording Software. The GV-System also refers to GV-Multicam GV-System System, GV-NVR System, GV-DVR System and GV- Hybrid DVR System at the same time. XVII...

  • Page 20: Options

    Options Optional devices can expand your camera’s capabilities and versatility. Contact your dealer for more information. Device Description A mountable infrared LED device that improves GV-IR LED T2 image performance of Box Cameras under low light conditions. The GV-Relay V2 is designed to expand the voltage load of GV IP devices.
  • Page 21 Device Description The fixed Lens, with focal length 8 mm, F/1.6, 1/2.5’’ CS Lens, is compatible with GV-BX1200 Fixed Lens 8 mm series / 1300 series / 2400 series / 3400 series. The fixed Lens, with focal length 12 mm, F/1.6, Fixed Lens 12 mm 1/2.5’’...

  • Page 22: Note For Connecting To Gv-System

    Note for Connecting to GV-System The GV-IPCAM H.264 is designed to work with GV-System, a hybrid or digital video management system. Note the following when GV-IPCAM H.264 is connected to GV-System: By default, the images are recorded to the memory card inserted in the GV-IP Camera H.264 (except GV-IR Arctic Box Camera).

  • Page 23: Note For Adjusting Focus And Zoom

    Note for Adjusting Focus and Zoom When adjusting the Focus and Zoom Screws (on Box Camera, IR Arctic Box Camera, Bullet Camera, Vandal Proof IP Dome and Fixed IP Camera), please do not over tighten the Focus and Zoom screws. The screws only need to be as tight as your finger can do it;...

  • Page 24: Note For Installing Camera Outdoor

    Note for Installing Camera Outdoor When installing the IR Arctic Box Camera, Bullet Camera, Ultra Bullet Camera, Vandal Proof IP Dome or Mini Fixed Rugged Dome outdoor, be sure that: The camera is set up above the junction box to prevent water from entering the camera along the cables.
  • Page 25 After opening the camera cover, ensure the screws are tightened and the cover is in place. The silica gel bag loses its effectiveness when the dry camera is opened. To prevent the lens from fogging up, replace the silica gel bag every time you open the camera, and conceal the gel bag in camera within 2 minutes of exposing to open air.
  • Page 26 Note for Sealing the Bullet Camera To ensure that the camera performs its full capacity against water and dust, adhere to the following guidelines when closing the Bullet Camera cover: Line up the dots Tighten the camera cover until the dots on the cover and the body line up as indicated below.

  • Page 27: Chapter 1 Introduction

    Chapter 1 Introduction The GV-IPCAM H.264 series offers a comprehensive range of IP cameras supporting your needs for IP surveillance in various environmental conditions. For detailed features of each model, refer to the corresponding chapter. Model Model No. Description 1.3 MP, H.264, D/N,...
  • Page 28 Model Model No. Description 3 MP, H.264 D/N, GV-BX320D-1 Auto Iris, f: 2.8 ~ 6 mm, F/1.3, 1/3’’ CS Lens Varifocal 5 MP, H.264 D/N, Lens Manual Iris, GV-BX520D-0 f: 4.5 ~ 10 mm, F/1.6, 1/2’’ CS Lens 1.3 MP, H.264, D/N, Low Lux, Fixed Iris, GV-BX1200-0F f: 4 mm, F/1.5,...
  • Page 29 Introduction Model Model No. Description 1.3 MP, H.264 D/N, GV-BX1200-3V Auto Iris, f: 2.8 ~ 12 GV-BX1300-3V mm, F/1.4, 1/3’’ CS Lens 2 MP, H.264 D/N, WDR Pro, Auto Iris, GV-BX2400-3V f: 2.8 ~ 12 mm, F/1.4, 1/3’’ CS Lens 2 / 3 MP, H.264 D/N, Varifocal GV-BX2400-4V...
  • Page 30 Model Model No. Description 1.3 MP, H.264, Low Lux, D/N, Auto Iris, f: GV-BX120D-E 2.8 ~ 12 mm, F/1.4, 1/3’’ CS Lens 2 MP, H.264 D/N, Auto GV-BX220D-E Iris, f: 2.8 ~ 6 mm, F/1.3, 1/3’’ CS Lens Varifocal IR Arctic Box 3 MP, H.264 D/N, Lens Camera...
  • Page 31 Introduction Model Model No. Description 1.3 MP Low Lux H.264, GV-MDR120 Color, Fixed Iris 2 MP H.264, Color, Fixed Mini Fixed GV-MDR220 Iris Fixed Rugged Lens 3 MP H.264, Color, Fixed Dome GV-MDR320 Iris 5 MP H.264, Color, Fixed GV-MDR520 Iris GV-BL120D 1.3 MP, H.264, Low Lux,...
  • Page 32 Model Model No. Description 2 / 3 MP, H.264, D/N, Low Lux, WDR Pro, Zoom GV-UBL2411 Auto Iris, 3X Optical Lens GV-UBL3411 Zoom, f: 3 ~ 9 mm, Ultra Bullet F/1.2, 1/2.7’’ ø 14 Lens Camera 1.3 / 2 / 3 MP, H.264, GV-UBL1301 Series D/N, Fixed Iris, f: 3 / 4 / Fixed...
  • Page 33 Introduction Model Model No. Description GV-VD120D (IK10+, Transparent Cover) GV-VD121D 1.3 MP, H.264, Low (IK10+, Smoked Cover) Lux, GV-VD122D Auto Iris (IK7, Transparent Cover) GV-VD123D (IK7, Smoked Cover) GV-VD220D (IK10+, Transparent Cover) GV-VD221D Vandal (IK10+, Smoked Cover) 2 MP, H.264, Varifocal Proof IP GV-VD222D...

  • Page 34: System Requirement

    1.1 System Requirement To perform the GV-IPCAM H.264 operations through Web browser, ensure your PC is in good network connection, and use one of the following web browsers: • Microsoft Internet Explorer 7.x or later • Google Chrome • Mozilla Firefox •...

  • Page 35: Chapter 2 Box Camera

    Chapter 2 Box Camera The Box Camera series offers fixed focal or varifocal models, ranging from 1.3 to 5 megapixel and is designed with an automatic infrared cut filter for day and night surveillance. Box Camera Model No. Specifications Description Megapixel, Auto Iris, 1.3 MP, H.264, GV-BX120D...

  • Page 36: Specifications

    Model No. Specifications Description Megapixel, Auto Iris, GV-BX320D-0 f:3.1 ~ 8 mm, F/1.2, 1/3” CS Lens 3 MP, H.264, Megapixel, Auto Iris, Varifocal GV-BX320D-1 f: 2.8 ~ 6 mm, F/1.3, Lens 1/3’’ CS Lens Megapixel, Manual 5 MP, H.264, Iris, f: 4.5 ~ 10 mm, GV-BX520D-0 F/1.6, 1/2’’...
  • Page 37 Box Camera Model No. Specifications Description 1.3 MP, H.264, GV-BX1200-2F Low Lux, D/N 1.3 MP, H.264, GV-BX1300-2F Megapixel, Fixed Iris, f: 12 mm, F/1.6, Fixed Lens 2 MP, H.264, 1/2.5’’ CS Lens GV-BX2400-2F D/N, WDR Pro 3 MP, H.264, GV-BX3400-2F D/N, WDR Pro 1.3 MP, H.264, GV-BX1200-3V...

  • Page 38: Packing List

    • One 0.125 mm Lens Ring (for GV-BX140DW only) • Video Out Wire • Camera Holder • GV-IPCAM H.264 Software CD • GV-IPCAM H.264 Quick Start Guide • GV-NVR Software DVD • GV-NVR Quick Start Guide Note: Power adapter can be purchased upon request.

  • Page 39: Features

    Box Camera 2.2 Features • 1.3 / 2 / 3 / 5 megapixel progressive scan CMOS • Dual streams from H.264 or MJPEG • Frame rate: Camera Model Frame Rate GV-BX120D GV-BX130D Series Up to 30 fps at 1280 x 1024 GV-BX1200 Series GV-BX1300 Series GV-BX140DW...
  • Page 40 • Text overlay • IP address filtering • Power supply: DC 12V and PoE • Megapixel lens • Support for iPhone, iPad, Android and 3GPP • 31 languages on Web interface...

  • Page 41: Wide Dynamic Range Pro

    An example of WDR Pro in action is shown below. No WDR: underexposure WDR: perfect exposure For GV-IPCam H.264 models that support WDR, the WDR effect is achieved through software programming.

  • Page 42: Overview

    2.3 Overview 2.3.1 GV-BX120D / 130D Series / 140DW / 220D Series / 320D Series / 520D-0 12 13 Figure 2-1 Note: 1. The Light Sensor (No.11) is only available in GV-BX140DW. Keep the Light Sensor unobscured for accurate light detection. 2.
  • Page 43 DC 12V Port Connects to power. LAN / PoE Connects to a 10/100 Ethernet or PoE. Resets all configurations of the GV-IPCAM Default H.264 to the default factory settings. See 18.3 Restoring to Factory Default Settings. Detects light to switch between day and night Light Sensor mode.

  • Page 44: Gv-Bx1200 Series / 1300 Series / 2400 Series / 3400 Series / 5300

    2.3.2 GV-BX1200 Series / 1300 Series / 2400 Series / 3400 Series / 5300 Figure 2-2 Note: The Zoom Screw (No. 13) is not available in GV-BX1200-0F ~ 2F, GV-BX1300-0F ~ 2F, GV-BX2400-0F ~ 2F and GV-BX3400-0F ~ 2F). The Iris Screw (No. 12) is only available in GV-BX5300. Name Description Connects to a portable monitor for setting...
  • Page 45 GV-BX2400-0F ~ 2F and GV-BX3400-0F ~ 2F. DC 12V Port Connects to power. LAN / PoE Connects to a 10/100 Ethernet or PoE. Resets all configurations of the GV-IPCAM H.264 to the default factory settings. See 18.3 Default Restoring to Factory Default Settings. Iris Screw Adjusts the iris of the camera.

  • Page 46: Connecting The Camera

    2.4 Connecting the Camera The Box Camera is designed for indoor use. Please make sure the installing site is shielded from rain and moisture. 2.4.1 GV-BX120D / 130D Series / 140DW / 220D Series / 320D Series / 520D-0 Figure 2-3 If you are using the auto iris model, plug the iris control cable to the Auto Iris Connector on the camera.
  • Page 47 Box Camera Connect power using one of the following methods: • plugging the supplied power adapter to the power port. • using the Power over Ethernet (PoE) function and the power will be provided over the network cable. The status LED of the camera will be on. You are ready to access the live view, adjust the image clarity and configure the basics.

  • Page 48: Series / 5300

    2.4.2 GV-BX1200 Series / 1300 Series / 2400 Series / 3400 Series / 5300 Figure 2-4 If you are using the auto iris model, plug the iris control cable to the Auto Iris Connector on the camera. Connect to network using one of the following methods: •...
  • Page 49 Box Camera Connect power using one of the following methods: • plugging the supplied power adapter to the power port. • using the Power over Ethernet (PoE) function and the power will be provided over the network cable. The status LED of the camera will be on. You are ready to access the live view, adjust the image clarity and configure the basics.

  • Page 50: Accessory Installation

    2.5 Accessory Installation 2.5.1 C-Mount Lenses If you use a C-mount lens, it requires a certain distance from the camera’s imaging chip to focus the lens. Mount the supplied C-mount lens adapter / lens ring to the camera, and then secure the lens onto the camera body. Three types of C-mount lens rings are provided for Box Camera: •...

  • Page 51: Infrared Illuminators (Optional)

    Box Camera 2.5.2 Infrared Illuminators (Optional) If you use an infrared (IR) illuminator with I/O function, follow the steps below to install it. Connect the infrared illuminator to the terminal block on the camera. See 2.6 The I/O Terminal Block. Access the Web interface of the camera.

  • Page 52: I/O Terminal Block

    2.6 I/O Terminal Block The terminal block, located on the back panel of the Box Camera, provides the interface to one input and one output devices. The I/O terminal block can be used for applications such as motion detection, event alerts via E- Mail and FTP, and center monitoring through Center V2 and VSM.

  • Page 53: Connecting To Gv-Relay V2 (Optional)

    Box Camera 2.6.2 Connecting to GV-Relay V2 (Optional) The Box Camera can only drive a maximum load of 200mA 5V DC. Connect the camera to a GV-Relay V2 module (optional product) to expand the maximum voltage load to 10A 250V AC, 10A 125V AC or 5A 100V DC.

  • Page 54: Chapter 3 Ultra Box Camera

    Chapter 3 Ultra Box Camera The Ultra Box Camera is a series of light-weighted cameras designed for indoor usage. Equipped with IR-cut filter and built-in IR LEDs, the Ultra Box Camera provides excellent image quality. The camera supports PoE and can be installed intuitively.

  • Page 55: Packing List

    • Supporting rack x 1 • Screw x 3 • Screw anchor x 3 • GV-IPCAM H.264 Software CD • GV-IPCAM H.264 Quick Start Guide • GV-NVR Software DVD • GV-NVR Quick Start Guide Note: Power adapter can be purchased upon request.

  • Page 56: Features

    3.2 Features • 1/2.5’’ progressive scan CMOS • Dual streams from H.264 or MJPEG • Up to 30 fps at 1280 x 1024 for GV-UBX1301 Series Up to 30 fps at 1920 x 1080 for GV-UBX2301 Series Up to 20 fps at 2048 x 1536 for GV-UBX3301 Series •...

  • Page 57: Overview

    Ultra Box Camera 3.3 Overview Figure 3-1 Name Description Audio Out Connects a speaker for audio output. Resets the camera to factory defaults. Default See 18.3 Restoring to Factory Default Settings. LAN / PoE Connects to a 10/100 Ethernet or PoE. Microphone Records sounds.

  • Page 58: Installation

    3.4 Installation You can stand the Ultra Box Camera on a plain surface or install it to wall and ceiling. Follow the steps below to install, connect and adjust your Ultra Box Camera. To install the device on the wall/ceiling, put the supporting rack on the desired location and make marks for screw anchors.
  • Page 59 Ultra Box Camera Connect the network and power cables to the camera. See 3.5 Connecting the Camera. Access the live view. See 14.1 Accessing the Live View. Adjust the angle of the camera based on live view and fasten the indicated screw.

  • Page 60: Connecting The Camera

    3.5 Connecting the Camera Figure 3-4 Connect power using one of the following methods: • Plug the power adapter to the 5V terminal block. The power adapter is an optional device. For detail, see Options in the manual. • Use the Power over Ethernet (PoE) function and the power will be provided over the network cable.

  • Page 61: Chapter 4 Ir Arctic Box Camera

    Chapter 4 IR Arctic Box Camera The IR Arctic Box Camera series is a variant of the Box Camera series. They are outdoor cameras with IP66 rating. They are designed for day and night surveillance in environments with extreme temperatures. IR Arctic Box Camera Model No.

  • Page 62: Packing List

    • Big Torx Wrench • Small Torx Wrench • Silica Gel Bag x 2 • GV-PA481 PoE Adapter • GV-PA481 Power Cord • GV-IPCAM H.264 Software CD • GV-IPCAM H.264 Quick Start Guide • GV-NVR Software DVD • GV-NVR Quick Start Guide...

  • Page 63: Features

    IR Arctic Box Camera 4.2 Features • 1.3 / 2 / 3 / 5 megapixel progressive scan CMOS • Dual streams from H.264 or MJPEG • Frame rate: Camera Model Frame Rate GV-BX120D-E Up to 30 fps at 1280 x 1024 GV-BX220D-E Up to 30 fps at 1920 x 1080 GV-BX320D-E...

  • Page 64: Overview

    4.3 Overview Figure 4-1 Note: The Iris Screw (No. 7) is only available in GV-BX520D-E. Name Description Desiccant that keeps the camera housing Silica gel bag dry. IR power plug Supplies power to the built-in IR LEDs. Focus Screw Adjusts the focus of the camera. Module screw Holds the module in place.

  • Page 65: Installation

    IR Arctic Box Camera 4.4 Installation The IR Arctic Box Camera is designed for outdoor use. Mark the installation site and drill four holes for screw anchors. Insert the supplied screw anchors. Secure the camera to the wall using the supplied washers and screws. Figure 4-2 Connect the camera to the network and supply power via the PoE cable.
  • Page 66 Tilt Adjustment Figure 4-4 Pan Adjustment Figure 4-5 Based on the live view, adjust the focus, zoom and iris (in GV- BX520D-E only) of the camera. Unscrew the cover with the supplied small torx wrench. Figure 4-6...
  • Page 67 IR Arctic Box Camera Hold the connectors and unplug them. Figure 4-7 IMPORTANT: Unscrew and remove the cover carefully. Pulling the cover off may cause damages to the inner wiring of the camera. Adjust the focus, zoom and iris screws. Figure 4-8...
  • Page 68 Replace the silica gel bag. Paste the sticker to the front side of the silica gel bag. Press the sticker several times to make sure it adheres properly. Paste the silica gel bag to the indicated place. Figure 4-9 IMPORTANT: The gel bag loses its effectiveness when the dry camera is opened.

  • Page 69: Connecting The Camera

    IR Arctic Box Camera 4.5 Connecting the Camera 4.5.1 Wire Definition Figure4-10 Wire Color Definition Black (thick) Black BNC TV out Green RCA Audio Out Pink RCA Audio In Optionally connect a speaker (green) and an external microphone (pink). Optionally connect a monitor using a Video Out wire. Enable this function by selecting your signal format at the TV Out field on the Web interface.
  • Page 70 Connect the camera’s cable to the GV-PA481 PoE adapter as illustrated below. The power and network will be supplied simultaneously. Figure 4-11 The status LED of the camera will be on. You are ready to access the live view, adjust the image clarity and configure the basics.

  • Page 71: Notice For Using The Ir Arctic Box Camera

    IR Arctic Box Camera 4.6 Notice for Using the IR Arctic Box Camera Ensure that you: • enable IR LED function on the Web interface after loading the default settings. • disable the status LED to reduce reflection when a green light spot appears on the live view.

  • Page 72: Disabling Status Led Under Low Light Conditions

    4.6.2 Disabling Status LED under Low Light Conditions If you have a green light spot on the live view, this is likely due to insufficient light at the installation site, which causes the status LED to reflect on the camera cover. In this case, it is advisable that you disable the status LED.

  • Page 73: Chapter 5 Mini Fixed Dome & Mini Fixed Rugged Dome

    Chapter 5 Mini Fixed Dome & Mini Fixed Rugged Dome The Mini Fixed Dome is a fixed, mini-sized ceiling-mount network camera. Two series are available, the Mini Fixed Dome series, which are designed for indoor surveillance and the Mini Fixed Rugged Dome series for outdoor environments.

  • Page 74: Packing List

    • Ferrite core for vehicle installation • 2-pin terminal block (for GV-MFD series only) • GV-IPCAM H.264 Software CD • GV-IPCAM H.264 Quick Start Guide • GV-NVR Software DVD • GV-NVR Quick Start Guide Note: Power adapter can be purchased for Mini Fixed Dome upon...

  • Page 75: Features

    Mini Fixed & Rugged Dome 5.2 Features • 1/3’’ progressive scan CMOS • Megapixel lens • Dual streams from H.264 or MJPEG • Frame rate: Camera Model Frame Rate GV-MFD120 GV-MFD130 Up to 30 fps at 1280 x 1024 GV-MDR120 GV-MFD220 Up to 30 fps at 1920 x 1080 GV-MDR220...
  • Page 76 • Built-in microphone • Motion detection • Tampering alarm • Privacy mask • Text overlay • IP address filtering • Support for iPhone, iPad, Android and 3GPP • 31 languages on Web interface...

  • Page 77: Overview

    Mini Fixed & Rugged Dome 5.3 Overview 5.3.1 GV-MFD120 / 130 / 220 / 320 / 520 Figure 5-1 Name Description Resets the camera to factory default. See Default Button 18.3 Restoring to Factory Default Settings. Lens Receives image inputs. Tilt Screw Loosens the screw to adjust tilt angle.
  • Page 78 LED Name Description 1. Link Turns on when the network is connected. 2. ACT Turns on when data are being transmitted. 3. PWR Turns on when power is on. 4. SW RDY (Status) Turns on when the system is ready.

  • Page 79: Gv-Mdr120 / 220 / 320 / 520

    Mini Fixed & Rugged Dome 5.3.2 GV-MDR120 / 220 / 320 / 520 Figure 5-2 Name Description Silica gel bag Absorbs the moisture inside the camera. Prevents water or moisture from entering Conceal paper the camera. Lens Receives image inputs. Rotation Disc Rotates the camera lens.
  • Page 80 Name Description Turns red when the power is on. Flashes Power and status orange light twice when the system is ready. LAN LED Turns on when the network is connected. Inserts a micro SD / SDHC / SDXC card Memory Card Slot to store recording data.

  • Page 81: Installation

    Mini Fixed & Rugged Dome 5.4 Installation To install a Mini Fixed Dome, make sure the installing site is shielded from rain and moisture. 5.4.1 GV-MFD Series Unscrew the housing cover using the supplied torx wrench. Put the camera on the desired location and make 2 marks on the ceiling for screw anchors.
  • Page 82 Insert a Micro SD / SDHC / SDXC card into the memory card slot (No. 7, Figure 5-1). Replace the silica gel bag. IMPORTANT: 1. The silica gel bag loses it effectiveness when the dry camera is opened. To prevent the lens from fogging up, replace the silica gel bag every time you open the camera, and conceal the gel bag in camera within 2 minutes of exposing to open air.

  • Page 83: Gv-Mdr Series

    Mini Fixed & Rugged Dome 5.4.2 GV-MDR Series Paste the installation sticker on the desired location. The arrow should point toward the direction that the camera faces. Drill one hole on each of the two curves for screw anchors. Drill the circle (30 mm in diameter) if you want to run the cable into the ceiling.
  • Page 84 Install the cable connector to waterproof the cable. You should have 5 parts: Figure 5-8 Prepare an internet cable with the RJ-45 connector on one end only. Figure 5-9 Connect the internet cable to the camera cable. Paste the sticker to the camera cable and slide in all the components as shown below.
  • Page 85 Mini Fixed & Rugged Dome Move all the components toward the RJ-45 connector, fit item 4 to item 2, secure item 3 to the camera cable and finally secure item 5 to item 2 tightly. Figure 5-11 IMPORTANT: Item 5 must be secured tightly to waterproof the cable.
  • Page 86 Tilt Adjustment Figure 5-13 Rotational Adjustment Figure 5-14 Insert a Micro SD / SDHC / SDXC card into the memory card slot (No. 11, Figure 5-2). 10. Replace the silica gel bag. IMPORTANT: The silica gel bag loses it effectiveness when the dry camera is opened.
  • Page 87 Mini Fixed & Rugged Dome 11. Secure the housing cover using the supplied torx wrench. 12. Optionally conceal the cable opening with the supplied cable stopper. Figure 5-15...

  • Page 88: Connecting The Camera

    5.5 Connecting the Camera Refer to the wire definition and illustrations below to connect the power and network. 5.5.1 Wire Definition GV-MFD Series The data cable provides connections for power and network access. The wires are illustrated and defined below: Figure 5-16 Wire Color Definition...

  • Page 89: Power And Network Connection

    Mini Fixed & Rugged Dome 5.5.2 Power and Network Connection For GV-MFD Series , there are two ways to supply power to the camera: • Use a Power over Ethernet (PoE) adapter to connect the camera to the network, and the power will be provided at the same time. •...

  • Page 90: Vehicle Installation

    5.5.3 Vehicle Installation To install the Mini Fixed Rugged Dome on a vehicle, clip the ferrite core to the camera cable. In accordance to EN 50155, the ferrite core is used for reduction of the cable-based and radiated interferences, ensuring stable image quality.

  • Page 91: Chapter 6 Bullet Camera

    Chapter 6 Bullet Camera The Bullet Cameras are specifically designed for outdoors and are weatherproof (IP66 or IP67). The camera also features IR LEDs for infrared illumination in night vision applications. The zoom lens models (GV-BL1210 / 2410 / 3410 / 5310) take the advantage of its motorized focus/zoom in that the user can remotely adjust the focus and zoom through the Web interface.

  • Page 92: Packing List

    Plastic Screw Spacers and 2 Hexagon Screws included) • Silica Gel Bag x 2 • 2-Pin Terminal Block • GV-IPCAM H.264 Software CD • GV-IPCAM H.264 Quick Start Guide • GV-NVR Software DVD • GV-NVR Quick Start Guide Note: Power adapter can be purchased upon request.

  • Page 93: Features

    Bullet Camera 6.2 Features • Image sensor Camera Model Image Sensor GV-BL120D / 1200 / 1210 1/3’’ progressive scan CMOS GV-BL130D / 1300 / 220D / 1/2.5’’ progressive scan CMOS 320D / 5310 GV-BL2400 / 2410 / 3400 / 1/3.2’’ progressive scan CMOS 3410 •...
  • Page 94 • Visual automation • Text overlay • Privacy mask • IP address filtering • DC 12V / AC 24V / PoE • Megapixel lens • Support for iPhone, iPad, Android and 3GPP • 31 languages on Web interface...

  • Page 95: Overview

    Bullet Camera 6.3 Overview Figure 6-1 Name Description Receives a Micro SD / SDHC / SDXC Memory Card Slot memory card. Zoom Screw Holds the zoom lens in place. Focus Screw Holds the focus lens in place Resets all configurations to factory default. Default Button See 18.3.

  • Page 96: Installation

    6.4 Installation These instructions describe the basic installation of the Bullet Camera. Slide the cable clamp to the camera base. Figure 6-2 Install the Bullet Camera to the wall. Figure 6-3 Remove the protection sticker from the camera’s cover Connect the power, network and other wires to the Bullet Camera. See 6.4.1 Connecting the Camera.
  • Page 97 Bullet Camera Access the live view. For details, see 14.1. Accessing the Live View. Adjust angles of the camera body based on the live view. Three shafts can be adjusted. See 6.4.2 Adjusting the Angles. Loosen the camera’s cover, adjust the focus of the camera and optionally insert a micro SD / SDHC / SDXC card into the SD card slot.

  • Page 98: Connecting The Camera

    6.4.1 Connecting the Camera Wire Definition The 7-Pin Data Cable provides connections for power, ground, 1 sensor input, 1 alarm output, audio input and audio output. The wires are illustrated and defined below: Digital In (Red) DC 12V+ / AC 24V + (Brown) Digital Out (Orange) DC 12V- / AC 24V - (Black) GND (Yellow)
  • Page 99 Bullet Camera Power Connection There are two ways to supply power to the camera: • Use a Power over Ethernet (PoE) adapter to connect the camera to the network, and the power will be provided at the same time. • Use the supplied Terminal Block and power adapter.
  • Page 100 To connect the GV-Relay V2 module to the Bullet Camera, refer to the figure and table below. Output Devices Connect to Power Figure 6-7 GV-Relay V2 Bullet Camera Ground (Yellow) Digital Out (Orange)

  • Page 101: Adjusting The Angles

    Bullet Camera 6.4.2 Adjusting the Angles The Bullet Camera is designed to be adjustable in three shafts for easy and flexible installation. First Shaft You can adjust the camera body by 360 degrees to the right or the left. Unscrew the panning lock screw with the torx wrench. Figure 6-8 Adjust the angle of camera body to the right or the left, and fasten the panning lock screw.
  • Page 102 Second Shaft You can adjust the camera body up and down by 90, 112.5, 135, 157.5 or 180 degrees by using the gears inside the camera body and the camera base. Unscrew the tilting lock screw with the torx wrench. Figure 6-10 Hold the camera body, and move the camera base to the right to separate the camera gears.
  • Page 103 Bullet Camera Adjust the angle of camera body to 90°, 112.5°, 135°, 157.5° or 180°. Then move the camera base to the left to combine the gears. ° 157.5° 135° 112.5° 90° Figure 6-12 Fasten the tilting lock screw. Third Shaft You can adjust the camera base by 360°.
  • Page 104 Adjust the angle of camera base, and fasten the base fixing screw. 0~360° Figure 6-14...

  • Page 105: Adjusting Lens And Inserting A Memory Card

    Bullet Camera 6.4.3 Adjusting Lens and Inserting a Memory Card To adjust the camera’s lens to produce a clear image and insert a micro SD / SDHC / SDXC card into the SD card slot, follow the steps below. Loosen the camera’s cover. Camera’s Cover Figure 6-15 Remove the silica gel bag.
  • Page 106 If you want to insert a micro SD / SDHC / SDXC card, follow the steps below. Loosen the fixing screw. Fixing Screw Figure 6-17 Slightly pull out the camera module. Insert a micro SD / SDHC / SDXC card into the memory card slot.
  • Page 107 Bullet Camera IMPORTANT: 1. The silica gel loses its effectiveness when the dry camera is opened. To prevent the lens from fogging up, replace the silica gel bag every time when you open the camera and conceal the gel bag in the camera within two minutes of exposing to the open air.

  • Page 108: Installing The Sun-Shield Cover

    6.4.4 Installing the Sun-Shield Cover After setting up the Bullet Camera, now you can install the sun-shield cover to the camera. Fasten the hexagon screws either on top or below the camera. Figure 6-19 Put the sun-shield cover on top of hexagon screws. Make sure to aim the rear hexagon screw at the edge of the sun-shield cover’s aperture for optimal sun-shield performance.

  • Page 109: Chapter 7 Ultra Bullet Camera

    Chapter 7 Ultra Bullet Camera The Ultra Bullet Camera is a series of light-weighted cameras designed for outdoor environments. The camera adheres to the IP67 standard and has full protection against dust and jets of water. The Ultra Bullet Cameras are available in zoom lens and fixed lens at 1.3, 2 and 3 megapixels.

  • Page 110: Packing List

    • Silica Gel Bag x 2 • 2-Pin Terminal Block • Data cable • GV-IPCAM H.264 Software CD • GV-IPCAM H.264 Quick Start Guide • GV-NVR Software DVD • GV-NVR Quick Start Guide Note: Power adapter can be purchased upon request.

  • Page 111: Features

    Ultra Bullet Camera 7.2 Features • Image sensor Camera Model Image Sensor GV-UBL1211 1/3’’ progressive scan CMOS GV-UBL1301 Series 1/2.5’’ progressive scan CMOS GV-UBL2411 / 3411 / 2401 1/3.2’’ progressive scan CMOS Series / 3401 Series • Dual streams from H.264 or MJPEG •...

  • Page 112: Overview

    7.3 Overview Figure 7-1 Name Description Power & I/O Connects to the data cable. For details, see Connector 7.4.1 Connecting the Camera. Resets all configurations to factory default. Default Button See 18.3. Restoring to Factory Default Settings. LAN / PoE Cable Connects to a 10/100 Ethernet or PoE.

  • Page 113: Installation

    Ultra Bullet Camera 7.4 Installation You can install the camera to the ceiling or wall. Follow the steps below. Install the sun-shield cover to the camera. Fasten the hexagon screws to the top or bottom of the camera. Hexagon Screws Figure 7-2 IMPORTANT: Do not open the front cover of the camera since this may impair its resistance to water.
  • Page 114 Fasten the Philips head screws with the plastic screw spacers. Figure 7-4 Optionally insert a micro SD / SDHC / SDXC card to the camera. Unscrew and open the back panel with the supplied torx wrench. Figure 7-5 Insert a micro SD / SDHC / SDXC card into the card slot. I/O connector Silica gel bag Memory card slot...
  • Page 115 Ultra Bullet Camera Replace the silica gel bag. IMPORTANT: 1. The silica gel loses its effectiveness when the dry camera is opened. To prevent the interior from moisture, replace the silica gel bag every time when you open the camera and conceal the gel bag in the camera within two minutes of exposing to the open air.
  • Page 116 Install the camera to the wall or ceiling using the screw anchors and self-tapping screws. You can also stand the camera on a plain surface Figure 7-8 Remove the protection sticker from the camera’s cover. Connect the wires and cable connector to the camera. See 7.4.1 Connecting the Camera and 7.4.2 Waterproofing the Cable.

  • Page 117: Connecting The Camera

    Ultra Bullet Camera 7.4.1 Connecting the Camera Wire Definition The supplied 4-pin data cable provides connections for power, ground, 1 sensor input and 1 alarm output. The wires are defined below: Figure 7-9 Wire Color Definition DC 5V Green Digital In Blue Digital Out Black...
  • Page 118 Power Connection There are two ways to supply power to the camera: • Use a Power over Ethernet (PoE) adapter to connect the camera to the network, and the power will be provided at the same time. • Use the supplied Terminal Block and power adapter. Follow the steps below to connect the Terminal Block and the power adapter.

  • Page 119: Waterproofing The Cable

    Ultra Bullet Camera 7.4.2 Waterproofing the Cable Waterproof the LAN / PoE cable using the supplied cable connector. The cable connector can be dissembled into 5 parts: Figure 7-12 Prepare an internet cable with the RJ-45 connector on one end only. Figure 7-13 Connect the internet cable to the LAN / PoE connector (No.
  • Page 120 Move all the components toward the LAN / PoE connector, fit item 4 to item 2, secure item 3 to the camera cable and finally secure item 5 to item 2 tightly. Figure 5-11 IMPORTANT: Item 5 must be secured tightly to waterproof the LAN / PoE connector.
  • Page 121 Ultra Bullet Camera Voltage Load Expansion (Optional) The camera can only drive a maximum load of 200mA 5V DC. Connect the camera to a GV-Relay V2 module (optional product) to expand the maximum voltage load to 10A 250V AC, 10A 125V AC and 5A 100V DC. To connect the GV-Relay V2 module to the Ultra Bullet Camera, refer to the figure and table below.

  • Page 122: Chapter 8 Ptz Camera

    Chapter 8 PTZ Camera The GV-PTZ010D camera is a ceiling-mount device that provides panning, tilting and zooming functions. The camera is designed to monitor a wide area and also to focus on a specific part on the live view when suspicious events occur.

  • Page 123: Packing List

    PTZ Camera 8.1 Packing List • GV-PTZ010D • Mounting Base • Mounting Cover • Wall Mount Bracket • Screw Anchor x 3 • Long Screw x 3 • Short Screw x 3 • Round Screw x 3 • GV-PTZ010D Software •...

  • Page 124: Features

    8.2 Features • 1/4" CCD image sensor • Dual streams from H.264, MPEG4 or MJPEG • Up to 30 fps at 704 x 480 / Up to 25 fps at 704 x 576 • Day and night function (electronic) • 10x optical zoom lens •...

  • Page 125: Overview

    PTZ Camera 8.3 Overview Figure 8-1 Name Description DC 12V / AC 24V Connects to a DV 12V or AC 24V Power Terminal Block Adapter. LAN/PoE Connects to a 10/100 Ethernet or PoE. I/O Terminal Block For details, see 8.7 I/O Terminal Block. Inserts a micro SD / SDHC / SDXC card to Memory Card Slot store recording data.
  • Page 126 Name Description Turns green when the power is on and Power LED turns off when the power is off. Microphone Records the sounds. Resets to system default settings. For Default details, see 18.3 Restoring to Factory Default Settings.

  • Page 127: Installation

    PTZ Camera 8.4 Installation The GV-PTZ010D / GV-PT110D camera is designed for indoor usage. Please make sure that the installing location is shielded from rain and moisture. There are two ways to mount the PTZ / PT Camera: Ceiling Mount and L-Shaped Wall Mount. 8.4.1 Ceiling Mount Use the mounting base to make 3 marks on the wall for screw anchors.
  • Page 128 Fix the mounting base (now with the PTZ / PT Camera attached) to the wall with 3 long screws. Figure 8-4 Put on the mounting cover. To fit the installation environment, you can cut the parts indicated by arrows to make an opening for wires and cables.

  • Page 129: L-Shaped Wall Mount

    PTZ Camera 8.4.2 L-Shaped Wall Mount You may wall-mount the GV-PTZ010D / GV-PT110D camera with or without the mounting cover. Take the wall mount bracket and make 2 marks on the wall for screw anchors. Figure 8-6 Drill the marks and insert 2 screw anchors. Insert the long screws and leave enough distance (approximately 2 mm) to hang the wall mount bracket later.
  • Page 130 Hang the wall mount bracket on the screws and push the wall mount bracket downward. Make sure the long screws are tightened. Figure 8-8 Without Mounting Cover Attach the wall mount bracket with the PTZ / PT Camera using 3 washers and 3 round screws.
  • Page 131 PTZ Camera With Mounting Cover To install the mounting cover, attach the mounting base to the camera and then put on the mounting cover. See steps 3 and 5 in the Ceiling Mount section. Attach the wall mount bracket with the PTZ / PT Camera using 3 round screws.

  • Page 132: Connecting The Camera

    8.5 Connecting the Camera Figure 8-11 Use a standard network cable to connect the camera to your network. Optionally connect a speaker and an external microphone. Connect power using one of the following methods: • plugging the supplied power adapter to the power port. •...

  • Page 133: Focus Adjustment

    PTZ Camera 8.6 Focus Adjustment On initial installation, it is advised that you adjust the focus for image clarity. Print out the diagram of radiating lines included on Software CD and hang up the diagram at the surveillance area. Use the Zoom In / Out and Focus In / Out buttons on the PTZ control panel from the Web interface (No.4 and 5, Figure 8-15) and adjust the PTZ Camera until it displays clear radiating lines as shown in picture on the left.

  • Page 134: I/O Terminal Block

    8.7 I/O Terminal Block The 3-pin terminal block, located on the back panel of the PTZ Camera, provides the interface to one digital input and one digital output. The I/O terminal block can be used for applications such as motion detection, event alerts via E-Mail and FTP, and center monitoring through Center V2 and VSM.

  • Page 135: Voltage Load Expansion (Optional)

    PTZ Camera 8.7.2 Voltage Load Expansion (Optional) The camera can only drive a maximum load of 200mA 5V DC. Connect the camera to a GV-Relay V2 module (optional product) to expand the maximum voltage load. See a comparison on maximum voltage loads with and without GV-Relay below: Maximum Voltage Load Model...

  • Page 136: Ptz Control

    8.8 PTZ Control After you have installed the PTZ Camera on network and accessed the camera’s Web interface you are ready to configure the PTZ Camera. To see how to install the PTZ Camera on network, see Getting Started, Chapter 14. To see how to access to live image, see 15.1 Accessing Your Surveillance Images.
  • Page 137 PTZ Camera Buttons on the PTZ control panel: Name Description Exit Closes the PTZ control panel. Moves the PTZ Camera to 8 directions: Pan / Tilt Control up, down, left, right, left up, left down, right up and right down. Brings the camera view back to the home Home point where the camera faces front at a 90...

  • Page 138: Automatic Focus

    8.8.2 Automatic Focus When the camera view is fuzzy, you may use the auto focus feature to obtain a sharper view. On the PTZ control panel, click the Option button (No. 6, Figure 8-15) and select AF for automatic focus. 8.8.3 PTZ Camera Settings Accessing the PTZ Camera Settings To access PTZ camera settings, click the Option button (No.
  • Page 139 PTZ Camera PT Speed: Determines the panning (horizontal movement) and tilting (vertical movement) speed when using the Pan / Tilt Control buttons on the PTZ control panel. The drop-down list contains 5 speed settings: 1 is the slowest and 5 the fastest. Zoom Speed: Determines the zooming speed.

  • Page 140: Image Settings

    8.8.4 Image Settings Image Setting provides features on iris control, white balance, image orientation and other image processing tools to generate clearer images. To access these features, open the VISCA OSD Configuration dialog box and select Image Setting . [Iris] adjusts the amount of exposure. ALC: Automatic Light Control (ALC) is used to adjust light levels.
  • Page 141 PTZ Camera AWB: Automatic White Balance (AWB) automatically compensates for colors under different light levels. AWB is ideal for scenes with a fixed light source. Use the slider to select from 0 to 8. A higher value produces a brighter image and a lower value produces a dimmer image.
  • Page 142 Freeze: Instantly freezes the live view image when On is selected. AGC: Automatic Gain Control (AGC) utilizes an electronic circuit which amplifies video signal when the signal strength falls below a given value due to lack of the light on the camera. Adjust camera sensitivity to provide clear images.

  • Page 143: Preset Settings

    PTZ Camera 8.8.5 Preset Settings For PTZ Camera to automatically move toward a point in live view, establish a Preset. A Preset is a point in live view that can be configured and saved for future use. The PTZ Camera allows up to 256 Preset points. For details on the maximum number of Preset points, see 8.8.3 PTZ Camera Settings.
  • Page 144 Renaming a Preset Point To rename a Preset point: Click the Option button (No. 6, Figure 8-15), select Preset Set and select Naming . The dialog box appears. Figure 8-18 Click the Preset point you wish to rename and type the new name in the blank at the top.
  • Page 145 PTZ Camera Starting and Stopping a Preset Point To start a Preset movement, click the Option button (No. 6, Figure 8-15), select Preset Go , and select a Preset number which has been set previously. Alternatively, you may use the number pad on the PTZ control panel to enable a Preset movement: Click the Show Preset button (No.

  • Page 146: Sequence Settings

    8.8.6 Sequence Settings For PTZ Camera to automatically perform a series of movements, you can configure a Sequence. A Sequence links up more than two Preset points to form a sequence of movements. Up to 8 Sequences can be created. Configuring a Sequence After you have configured the Preset points you wish the camera to follow (for details, see 8.8.5 Preset Settings), you are ready to...
  • Page 147 PTZ Camera Use the Preset drop-down list to select the Preset points for the Sequence. Use the Dwell Time drop-down list to select the staying time that the camera stays at the Preset point. The dwell time ranges from 0 to 127 seconds at an interval of 0.5 second.

  • Page 148: Auto Pan Settings

    8.8.7 Auto Pan Settings For the PTZ Camera to survey a horizontal view, establish an Auto Pan. Up to 4 sets of Auto Pan can be created. Configuring an Auto Pan To configure a horizontal movement: Adjust the angle of the camera view using the Up and Down Control buttons since any vertical movements of the camera will not be recorded by Auto Pan.
  • Page 149 PTZ Camera Configuring the Speed of Auto Pan You can configure the speed for each set of Auto Pan differently: Open the VISCA OSD Configuration dialog box and select Advance. Figure 8-20 Select the Auto Pan number you wish to configure and select the Speed .

  • Page 150: Rebooting The Camera

    Starting and Stopping Autopan To start an Auto Pan, click the Option button (No. 6, Figure 8-15), select Auto and select a desired Auto Pan number. The PTZ Camera will first return to the starting position of the selected Auto Pan and proceeds with the selected Auto Pan movement.

  • Page 151: System Configuration

    PTZ Camera 8.8.8 System Configuration To configure lens settings, open the VISCA OSD Configuration dialog box and select System Configure . Figure 8-21 Zoom + AF: Automatically focuses after zooming. It is advised to use this feature with a zooming distance of at least 1 meter. Digital Zoom: Allows up to 10x Digital Zoom.

  • Page 152: Chapter 9 Pt Camera

    Chapter 9 PT Camera The GV-PT110D camera is a ceiling-mount device that features panning and tilting functions. The GV-PT110D is designed to monitor a wide area and to focus on a selected point on live view when suspicious events occur. 9.1 Packing List •...
  • Page 153 PT Camera • GV-IPCAM H.264 Software • Washer x 3 • GV-PTZ110D / GV-PTZ010D • GV-NVR Quick Start Guide Quick Start Guide • GV-NVR Software DVD Note: Power adapter can be purchased upon request.

  • Page 154: Features

    9.2 Features • 1.3 megapixel progressive scan CMOS • Dual streams from H.264, MPEG4 or MJPEG • Up to 15 fps at 1280 x 1024 • Day and night function (with removable IR-cut filter) • Pan and tilt (Pan: -175° ~ 175°; Tilt: -45° ~ 90°) •...

  • Page 155: Overview

    PT Camera 9.3 Overview Figure 9-1 Name Description DC 12V / AC 24V Connects to a DV 12V or AC 24V Power Terminal Block Adapter. LAN / PoE Connects to a 10/100 Ethernet or PoE. I/O Terminal Block For details, see 9.7 I/O Terminal Block. Inserts a micro SD / SDHC / SDXC card to Memory Card Slot store recording data.
  • Page 156 Name Description Turns green when the system operates Status LED normally and turns off when system error occurs. Turns green when the power is on and Power LED turns off when the power is off. Manually rotates this ring left or right to Focus Ring adjust focus.

  • Page 157: Installation

    PT Camera 9.4 Installation For installation procedures of the GV-PT110D, see 8.4 Installation. 9.5 Connecting the Camera For procedures of connecting the GV-PT110D, see 8.5 Connecting the Camera. 9.6 Focus Adjustment After you have followed 8.5 Connecting the Camera and connected all the necessary cables and wires, follow the steps below to adjust image clarity.

  • Page 158: I/O Terminal Block

    9.7 I/O Terminal Block The 3-pin terminal block, located on the back panel of the PT Camera, provides the interface to one digital input and one digital output. The I/O terminal block can be used for applications such as motion detection, event alerts via E-Mail and FTP, and center monitoring through Center V2 and VSM.

  • Page 159: Pt Control

    PT Camera 9.8 PT Control The GV-PT110D shares similar user interfaces and features with the GV- PTZ010D camera. The supported functions are listed in the table below. Supported Function Description PT Control Panel The following buttons on the PT control panel are available: Exit, Pan / Tilt Control, Home, Option and Show Preset.
  • Page 160 Supported Function Description Sequence A Sequence consists of a series of Preset points. Configure a Sequence to direct the camera to perform s series of movements. For details, see 8.8.6 Sequence Settings. Auto Pan The camera can be configured to monitor the surveillance area in a horizontal movement.

  • Page 161: Chapter 10 Vandal Proof Ip Dome

    Chapter 10 Vandal Proof IP Dome The Vandal Proof IP Domes are designed for outdoor usage. They are equipped with automatic infrared cut filters for day and night surveillance. Model options range from 1.3. to 3 megapixels: Model No. Specification Description GV-VD120D Megapixel,...

  • Page 162: Packing List

    • Small Screw Cap x 3 • T-Cap x 3 • Plastic Clip x 3 • Focus Adjustment Cap • 2-Pin Terminal Block • GV-IPCAM H.264 Quick • GV-IPCAM H.264 Software Start Guide • GV-NVR Quick Start Guide • GV-NVR Software DVD Note: 1.

  • Page 163: Features

    Vandal Proof IP Dome 10.2 Features • 1/3’’ progressive scan CMOS for GV-VD120D 1/2.5’’ progressive scan CMOS for GV-VD220D / 320D • Dual streams from H.264 or MJPEG • Up to 30 fps at 1280 x 1024 for GV-VD120D Up to 30 fps at 1920 x 1080 for GV-VD220D Up to 20 fps at 2048 x 1536 for GV-VD320D •...

  • Page 164: Overview

    10.3 Overview Figure 10-1 Name Description Turns on (green) when the power is on Power LED and turns off when there is no power supply. Turns on (green) when the system Status LED operates normally and turns off when system error occurs. Resets to factory default.

  • Page 165: Installation

    Vandal Proof IP Dome 10.4 Installation The Vandal Proof IP Dome is designed for outdoors. With the standard packing, there are two ways to install the Vandal Proof IP Dome: hard- ceiling mount and in-ceiling mount. Note: You may also install the camera to ceilings, wall corners (concave or convex), and poles with optional mounting kits.
  • Page 166 Unscrew thread lock Unscrew the inner housing Take out the camera body...
  • Page 167 Vandal Proof IP Dome Mark the position of four screw holes on the desired installation location, and drill holes in the marked locations. Drill the ellipse part if you wish to put the wires through it. Figure 10-3 Insert the screw anchors to the 4 holes on the ceiling. Secure the back cover to the ceiling with 4 ceiling screws.
  • Page 168 Connect the network, power and other cables to the camera. See 10.5 Connecting the Camera. Access the live view. See 14.1 Accessing the Live View. Based on the live view, adjust the camera to a desired angle as illustrated below. Tip: The 3-axis mechanism offers flexible and easy installation.
  • Page 169 Vandal Proof IP Dome Rotational Adjustment Figure 10-7 10. Adjust image clarity using the GV-IP Device Utility program. For details, see 14.2 Adjusting Image Clarity. 11. Screw on the thread lock as shown in step 1. 12. Replace the silica gel bag on the camera body within 2 minutes of opening the silica gel bag package.

  • Page 170: In-Ceiling Mount

    10.4.2 In-Ceiling Mount Figure 10-8 Follow step 1 in 10.4.1 Hard-Ceiling Mount section to remove the housing cover, thread lock and back cover, and take out the camera body. Cut out a circle with a diameter of 142 mm on the ceiling. Insert a blue screw to the indicated holes on the camera body.
  • Page 171 Vandal Proof IP Dome Screw in a plastic clip to the blue screw, hold it with one hand and use a screw driver to rotate the blue screw until the plastic clip moves half way down. Plastic Clip Figure 10-10 Secure a T-cap on top of the blue screw with a small screw cap and a T-cap screw.
  • Page 172 Insert the camera to the ceiling with the plastic screws moved inward. Figure 10-12 Move the blue screws out and rotate the blue screw with a screw driver until the plastic clip and the bottom of the camera body clamps the ceiling tightly.

  • Page 173: Connecting The Camera

    Vandal Proof IP Dome 10.5 Connecting the Camera Connect your Vandal Proof IP Dome to power, network and other cables needed. 10.5.1 Wire Definition The cables of Vandal Proof IP Dome are illustrated and defined below. Shielding ground DC 12V- / AC 24V+ DC 12V+ / AC 24V- Digital in (oragne) Digital out (brown)

  • Page 174: Power Connection

    10.5.2 Power Connection There are two ways to supply power to the camera: • Use a Power over Ethernet (PoE) adapter to connect the camera to the network, and the power will be provided at the same time. • Use the supplied Terminal Block and power adapter. Follow the steps below to connect the Terminal Block and the power adapter.

  • Page 175: Voltage Load Expansion (Optional)

    Vandal Proof IP Dome 10.5.3 Voltage Load Expansion (Optional) The camera can only drive a maximum load of 200mA 5V DC. Connect the camera to a GV-Relay V2 module (optional product) to expand the maximum voltage load. See a comparison on maximum voltage loads with and without GV-Relay: Maximum Voltage Load Models...

  • Page 176: Chapter 11 Fixed Ip Dome

    Chapter 11 Fixed IP Dome The Fixed IP Dome is an indoor device designed with 3-axis mechanism for easy and flexible installation. The Fixed IP Dome also features IR LED for infrared illumination during low light conditions. Three models are available: Model No.

  • Page 177: Packing List

    • Ceiling Screw x 3 • Plate Screw x 3 • TV-out Wire • Sticker • GV-IPCAM H.264 Software • GV-IPCAM H.264 Quick Start Guide • GV-NVR Software DVD • GV-NVR Quick Start Guide Note: Power adapter can be purchased upon request.

  • Page 178: Packing List For In-Ceiling Mount

    11.1.2 Packing List for In-Ceiling Mount • In-Ceiling Housing Cover • Mounting Plate x 1 • Mounting Bracket x 3 • Copper Pillar x 3 • Copper Pillar Screw x 6 • Bracket Screw x 3 • Thread Lock Screw x 1 •...

  • Page 179: Features

    Fixed IP Dome 11.2 Features • 1/3’’ progressive scan CMOS for GV-FD120D 1/2.5” progressive scan CMOS for GV-FD220D / 320D • Dual streams from H.264 or MJPEG • Up to 30 fps at 1280 x 1024 for GV-FD120D Up to 30 fps at 1920 x 1080 for GV-FD220D Up to 20 fps at 2048 x 1536 for GV-FD320D •...

  • Page 180: Overview

    11.3 Overview 10 11 12 13 14 15 Figure 11-1 Name Description Focus Screw Adjusts the focus of the camera. Zoom Screw Adjusts the zoom of the camera. Rotational Screw Loosens to adjust the camera angle. Tilt Screw Loosens the screw to tilt the camera. Pan Disc Loosens to pan the camera.
  • Page 181 Fixed IP Dome Name Description Connects I/O devices. For details, see I/O Terminal Block 11.6 I/O Terminal Block. DC 12V Port Connects to power. Turns on (green) when the system Status LED operates normally and turns off when system error occurs. Turns on (green) when the power is on Power LED and turns off when there is no power...

  • Page 182: Installation

    11.4 Installation The Fixed IP Dome is designed for indoors. With the standard packing, there are three ways to install the Fixed IP Dome: hard-ceiling mount, in- ceiling mount and wall-surface mount. Note: You may also install the camera to ceilings, wall corners (concave or convex), and poles with optional mounting kits.
  • Page 183 Fixed IP Dome Unpack the camera package and take out the camera body. Use the torx wrench to loosen the housing cover at the front and the back Figure 11-3 Take out the camera body Figure 11-4 Secure the camera body to the mounting plate with three ceiling screws.
  • Page 184 Based on the live view, adjust the camera to a desired angle as illustrated below. Tip: The 3-axis mechanism offers flexible and easy ceiling / wall installation. Pan Adjustment Figure 11-6 Tilt Adjustment Figure 11-7...
  • Page 185 Fixed IP Dome Rotational Adjustment Figure 11-8 Adjust image clarity using the GV-IP Device Utility program. For details, see 14.2 Adjusting Image Clarity. Secure the housing cover as shown in step 2. Remove the indicated part when necessary. Figure 11-9 Note: Adjust the black mask inside the housing cover to make sure the camera view is not obscured.

  • Page 186: In-Ceiling Mount

    11.4.2 In-Ceiling Mount Figure 11-10 Follow step 2 in the 11.4.1 Hard-Ceiling Mount to remove the housing cover and take out the camera body. Paste the supplied sticker onto a desired location on the ceiling and cut a circle on the ceiling along the edge of the sticker. On the mounting plate, locate the 3 holes labeled as 1 and insert the 3 copper pillars from the back side.
  • Page 187 Fixed IP Dome From the side with the numbering, secure the copper pillars with 3 copper pillar screws. Figure 11-12 Place the 3 mounting brackets at the indent next to the copper pillars (labeled as 2 on the mounting plate) and secure them using the 3 bracket screws.
  • Page 188 Place the mounting plate on the camera body with the copper pillars inserted in the locations indicated below. The arrow on the mounting plate should be pointing toward the front of the camera. Figure 11-14 From the bottom of the camera, secure the copper pillars using the 3 copper pillars screws.
  • Page 189 14. Use the housing cover thread and the thread lock screw to attach the housing cover to the camera body. Figure 11-16 15. Place the housing cover on the camera body with the GeoVision logo pointing toward the front of the camera. Figure 11-17...

  • Page 190: Wall-Surface Mount

    11.4.3 Wall-Surface Mount Figure 11-18 Follow step 2 in 11.4.1 Hard-Ceiling Mount section to remove the housing cover and take out the camera body. Paste the supplied sticker onto a desired location on the wall. Drill the three red dots, and the ellipse mark only if you wish to run the wires into the wall.
  • Page 191 Fixed IP Dome Access the live view. See 14.1 Accessing the Live View. Follow steps 6 and 7 in 11.4.1 Hard-Ceiling Mount section to adjust the angle, focus and zoom of the camera. Follow step 8 in 11.4.1 Hard-Ceiling Mount section to secure the housing cover.

  • Page 192: Connecting The Camera

    11.5 Connecting the Camera Figure 11-20 Use a standard network cable to connect the camera to your network. Optionally connect a speaker and an external microphone. Optionally connect a monitor using a Video Out wire. Enable this function by selecting your signal format at the TV Out field on the Web interface.

  • Page 193: I/O Terminal Block

    Fixed IP Dome 11.6 I/O Terminal Block The terminal block, located on the back panel of the Fixed IP Dome, provides the interface to one input and one output devices. The I/O terminal block can be used for applications such as motion detection, event alerts via E-Mail and FTP, and center monitoring through Center V2 and VSM.

  • Page 194: Voltage Load Expansion (Optional)

    11.6.2 Voltage Load Expansion (Optional) The camera can only drive a maximum load of 200mA 5V DC. Connect the camera to a GV-Relay V2 module (optional product) to expand the maximum voltage load. See a comparison on maximum voltage loads with and without GV-Relay below: Maximum Voltage Load Models...

  • Page 195: Chapter 12 Cube Camera

    Chapter 12 Cube Camera The Cube Camera is a light weighted wired / wireless network camera designed for indoor usage. Its simple design allows for fast and easy installation and fixed-spot surveillance once installed. Four models are available: Model No. Specification Description 1.3 MP, H.264,...

  • Page 196: Packing List

    12.1 Packing List • Cube Camera • Supporting Rack • Screw x 3 • Screw Anchor x 3 • GV-IPCAM H.264 Quick • GV-IPCAM H.264 Software Start Guide • GV-NVR Quick Start Guide • GV-NVR Software DVD Note: Power adapter can be purchased upon request.

  • Page 197: Features

    Cube Camera 12.2 Features • 1/2.5’’ progressive scan CMOS • Dual streams from H.264 or MJPEG • Up to 30 fps at 1280 x 1024 for GV-CB120 / CBW120 Up to 30 fps at 1920 x 1080 for GV-CB220 / CBW220 •...

  • Page 198: Overview

    12.3 Overview Figure 12-1 Name Description Microphone Receives sounds. Speaker Plays sounds. Connects to a 10/100 Ethernet. Turns red when the system powers on. Status LED Turns orange when the system is ready. Turns green when the camera is connected to the Internet through wires.

  • Page 199: Installation

    Cube Camera 12.4 Installation Follow the steps below to install, connect to and adjust your Cube Camera and Wireless Cube Camera. Put the supporting rack on the desired location and make marks for screw anchors. Figure 12-2 Drill the marks and insert the screw anchors. Secure the supporting rack onto the wall using the supplied screws.
  • Page 200 Connect the network and power cables to the camera. See 12.5 Connecting the Camera. Access the live view. See 14.1 Accessing the Live View. Adjust the angle of the camera based on live view and fasten the indicated screw. Figure 12-4 For GV-CBW120/220, to connect to the Internet through wireless service, follow the steps in 14.1.3 Configuring the Wireless Connection.

  • Page 201: Connecting The Camera

    Cube Camera 12.5 Connecting the Camera Figure 12-5 Use a standard network cable to connect the camera to your network. Power on using the supplied power adapter. The status LED of the camera will be orange. IMPORTANT: Be sure to use the supplied power adapter to power up the camera.

  • Page 202: Chapter 13 Advanced Cube Camera

    Chapter 13 Advanced Cube Camera The Advanced Cube Camera integrates the passive infrared (PIR) sensor and the alarm LED to illuminate the scene automatically when the motion is detected. It also offers wireless connection to the network for flexible installation. It is small, light, and easy-to-use for indoor security. We provide four models: Model No.

  • Page 203: Packing List

    13.1 Packing List • Advanced Cube Camera • Supporting Rack • Screw x 3 • Screw Anchor x 3 • GV-IPCAM H.264 Quick • GV-IPCAM H.264 Software Start Guide • GV-NVR Quick Start Guide • GV-NVR Software DVD Note: Power adapter can be purchased upon request.

  • Page 204: Features

    13.2 Features • 1/2.5’’ progressive scan CMOS • Dual streams from H.264 or MJPEG • Up to 30 fps at 1280 x 1024 for GV-CA120 / CAW120 Up to 30 fps at 1920 x 1080 for GV-CA220 / CAW220 • Memory card slot •...

  • Page 205: Overview

    Advanced Cube Camera 13.3 Overview 2 3 4 5 6 7 Figure 13-1 Name Description Plays sounds for tampering and motion alarm, and listens to the audio around the Speaker camera. To set up alarm sound, see 16.3.9 Speaker. PIR sensor Passive infrared sensor.
  • Page 206 Name Description Reflects system status of the camera. See Ready LED the below table. Reflects LAN status of the camera. See the LAN LED below table. Inserts a micro SD/SDHC/SDXC card to Memory Card Slot store recording data. IMPORTANT: The White Illumination LED can reach high temperatures.

  • Page 207: Installation

    Advanced Cube Camera 13.4 Installation Follow the steps below to install, connect to and adjust your Advanced Cube Camera and Wireless Advanced Cube Camera. Put the supporting rack on the desired location and make marks for screw anchors. Figure 13-2 Drill the marks and insert the screw anchors.
  • Page 208 Connect the network and power cables to the camera. See 13.5 Connecting the Camera. Access the live view. See 14.1 Accessing the Live View. Adjust the angle of the camera based on live view and fasten the indicated screw. Figure 13-4 For GV-CAW120/220, to connect to the Internet through wireless service, follow the steps in 14.1.3 Configuring the Wireless Connection.

  • Page 209: Connecting The Camera

    Advanced Cube Camera 13.5 Connecting the Camera Figure 13-5 Use a standard network cable to connect the camera to your network. Connect power using one of the following methods: • plugging the supplied power adapter to the power port. • using the Power over Ethernet (PoE) function and the power will be provided over the network cable.

  • Page 210: Chapter 14 Getting Started

    Chapter 14 Getting Started This section provides the initial and basic configurations of the GV-IPCAM H.264. 14.1 Accessing the Live View Access or configure your camera according to the camera type and its firmware version: Camera Type & Default Connection Type Firmware Version •...
  • Page 211 • GV-PT110D camera is connected to the network. • GV-PTZ010D To avoid IP conflict with other GeoVision IP devices, it is advisable to re-assign a different IP address. See 14.1.2 Configuring the IP Address for more detail.

  • Page 212: Checking The Dynamic Ip Address

    Follow the steps below to look up the IP address and access the Web interface. Install the GV-IP Device Utility program included on the GV-IPCAM H.264 Software CD. Note: The PC installed with GV-IP Device Utility must be under the same LAN with the GV-IPCAM H.264 you wish to configure.
  • Page 213 Getting Started Find the camera with its Mac Address, click on its IP address and select Web Page. Figure 14-2 The login page appears. Figure 14-3 Type the default ID and password admin and click Apply to log in.

  • Page 214: Configuring The Ip Address

    14.1.2 Configuring the IP Address Follow the steps below to configure the IP address. Open your web browser, and type the default IP address http://192.168.0.10. In both Login and Password fields, type the default value admin. Click Apply. In the left menu, select Network and then LAN to begin the network settings.
  • Page 215 Getting Started IMPORTANT: If Dynamic IP Address or PPPoE is enabled, you need to know which IP address the camera will get from DHCP server or ISP to log in. If your camera is installed in the LAN, use the GV-IP Device Utility to look up its current dynamic IP address.

  • Page 216: Configuring The Wireless Connection

    14.1.3 Configuring the Wireless Connection You may create wireless connection to the Internet for GV-BX1200 series / 1300 series / 2400 series / 3400 series / 5300, GV-CBW120 / 220 and GV-CAW120/220. To set up the wireless LAN for the first time, power on and connect a standard network cable to the camera.
  • Page 217 Getting Started B. Type the Network Name (SSID) or click the Access Point Survey button to search and select for the available Access Points/wireless stations. C. Select Ad-Hoc or Infrastructure for the Network type. D. Select the Authentication Type using the drop-down list. You can also obtain this information by clicking the Access Point Survey button.
  • Page 218 Enable wireless LAN. A. On the Web interface, select Network and LAN. This page appears. Figure 14-6 B. Select Wireless for Optional Network Type C. To use a dynamic IP address assigned by the DHCP server, select Dynamic IP address. To use a fixed IP address, select Static IP address and type the IP address information.

  • Page 219: Adjusting Image Clarity

    Advanced Cube Camera, refer to Camera Adjustment in 15.2.2 The Control Panel on the Live View Window. After you have connected your GV-IPCAM H.264 to the network, follow the steps below to adjust image clarity. Make sure you have installed the GV-IP Device Utility program included on the GV-IPCAM H.264 Software CD.
  • Page 220 On the GV-IP Utility window, click the button to search for the IP devices connected in the same LAN. Click the IP Address of the camera you desire. A drop-down list appears. Figure 14-7 Select Focus Value. The Login dialog box appears. Figure 14-8...
  • Page 221 Getting Started Type the user name and password of the camera selected. The default is admin for both user name and password. This window appears. Figure 14-9 For GV-VD120D / 121D, VD-220D / 221D and VD-320D / 321D, hold the supplied Focus Adjustment Cap over the camera view. For details, see 14.2.1 Using Focus Adjustment Cap for details.

  • Page 222: Using Focus Adjustment Cap

    14.2.1 Using Focus Adjustment Cap There are two types of Focus Adjustment Caps for GV-VD120D / 121D, VD-220D / 221D and VD-320D / 321D. Hold and close the Focus Adjustment Cap to the lens in order to simulate the IK10+ housing cover before installing it.
  • Page 223 Getting Started Do not leave a distance between the Focus Adjustment Cap and the camera.

  • Page 224: Locations Of Adjustment Screws

    14.2.2 Locations of Adjustment Screws Models Adjustment Screws Zoom Screw Focus Screw Box Camera GV-BL120D GV-BL130D Zoom Screw GV-BL220D Focus Screw GV-BL320D GV-BL1200 GV-BL1300 GV-BL2400 GV-BL3400 Focus Ring PT Camera Focus Screw Zoom Screw Vandal Proof IP Dome...
  • Page 225 Getting Started Models Adjustment Screws Focus Screw Zoom Screw Fixed IP Dome Note: The following models do not contain a Zoom Screw: GV-BX130D- 1, GV-BX1200-0F, GV-BX1300-0F, GV-BX2400-0F and GV-BX3400-...

  • Page 226: Configuring The Basics

    14.3 Configuring the Basics Once the camera is properly installed, the following important features can be configured using the browser-based configuration page and are discussed in the following sections in this manual: • Date and time adjustment: see 16.8.1 Date & Time Settings. •...

  • Page 227: Chapter 15 Accessing The Camera

    Chapter 15 Accessing the Camera Two types of users are allowed to log on to the GV-IPCAM H.264: Administrator and Guest. The Administrator has unrestricted access to all system configurations, while the Guest has the access to live view and network status only.
  • Page 228 Click Apply. A video image, similar to the example on Figure 15-2, is now displayed in your browser. Note: To enable the updating of images in Internet Explorer, you must set your browser to allow ActiveX Controls and perform a once-only installation of GeoVision’s ActiveX component onto your computer.

  • Page 229: Functions Featured On The Main Page

    Status Figure 15-2 The GV-IPCAM H.264 can process one video stream in two different codec and image settings. In the Administrator mode, both streams are available. Click Streaming 1 or Streaming 2 in the left menu to access the live view.

  • Page 230: The Live View Window

    15.2.1 The Live View Window Internet Explorer When accessing the live view using Internet Explorer, the following window appears. Figure 15-3A...
  • Page 231 Accessing the Camera Figure 15-3B No. Name Function 1 Play Plays live video. 2 Stop Stops playing video. Talks to the surveillance area from the local 3 Microphone computer. Note this function is not available for Ultra Bullet Camera. Listens to the audio around the camera. Note this 4 Speaker function is not available for Ultra Bullet Camera.
  • Page 232 No. Name Function Takes a snapshot of live video. 5 Snapshot --- See 15.2.3 Snapshot of Live Video. Records live video to the local computer. 6 File Save --- See 15.2.4 Video Recording. Switches to full screen view. Right-click the image to have these options: Snapshot, Full Screen, Resolution, Zoom In, Zoom Out, PIP, 7 Full Screen...
  • Page 233 Accessing the Camera No. Name Function Enables the I/O Control Panel or the Visual Automation. --- See 15.2.12 I/O Control. 10 I/O Control Note this function is not available in Mini Fixed Dome, Mini Fixed Rugged Dome, Cube Camera and Advanced Cube Camera. Click to turn the Alarm LED on and/or adjust the brightness sensitivity.
  • Page 234 Non-IE Browsers When accessing the live view using Google Chrome, Firefox or Safari, this window appears. Note the following functions are not supported on non-IE browsers: Motion Detection, Tampering Alarm, Visual Automation, Text Overlay, Two-Way Audio and GPS Settings. Figure 15-4...

  • Page 235: The Control Panel Of The Live View Window

    Accessing the Camera 15.2.2 The Control Panel of the Live View Window To open the control panel of the Live View window, click the arrow button on top of the window. You can access the following functions by using the right and left arrow buttons on the control panel.
  • Page 236 [Information] Displays the version of the camera, time of the local computer, time of the camera (host time), the number of users logging in the camera and the OCX registration path. [Video] Displays the current video codec, resolution and data rate. [Audio] Displays the audio data rates when the microphone and speaker devices are enabled.
  • Page 237 Accessing the Camera Figure 15-6...
  • Page 238 Image Orientation: Changes the image orientation on the Live View window. Slowest Shutter Speed: Shutter speed controls the amount of the lights enters the image sensor and directly impacts the quality of image presentation. A slow shutter speed allows higher light exposure that creates a brighter overall image by blurring moving objects and bringing out background details, and a faster shutter speed lowers color and image clarity in order to capture motions.
  • Page 239 Accessing the Camera Wide Dynamic Range: adjusts and generates clear live view when the scene contains very bright and very dark areas at the same time. Select Auto (Strong) to bring out details in the darks areas of the scene, select Auto (Weak) to bring out less detail in the dark area and at the same time keep the bright areas from overexposure, or select Auto (Normal) for a balanced effect.
  • Page 240 Slowest Shutter Speed and Defog is not available in GV- BX140DW. D/N, Slowest Shutter Speed and Defog are not available in GV- PTZ010D and GV-PT110D. D/N sensitivity adjustment is not available for GV-BX140DW which automatically detects light with its built-in light sensor. Wide Dynamic Range is not available in GV-BX140DW, GV- PTZ010D, and GV-PT110D.

  • Page 241: Snapshot Of Live Video

    Accessing the Camera 15.2.3 Snapshot of Live Video To take a snapshot of live video, follow these steps: Click the Snapshot button (No. 5, Figure 15-3). The Save As dialog box appears. Specify Save in, type the File name, and select JPEG or BMP as Save as Type.

  • Page 242: Picture-In-Picture And Picture-And-Picture View

    15.2.5 Picture-in-Picture and Picture-and-Picture View The full screen mode provides two types of close-up views: Picture-in- Picture (PIP) and Picture-and Picture (PAP). The two views are useful to provide clear and detailed images of the surveillance area. Picture-in-Picture View With the Picture in Picture (PIP) view, you can crop the video to get a close-up view or zoom in on the video.
  • Page 243 Accessing the Camera Picture-and-Picture View With the Picture and Picture (PAP) view, you can create a split video effect with multiple close-up views on the image. A total of 7 close-up views can be defined. Figure 15-8 Right-click the live view and select PAP. A row of three inset windows appears at the bottom.
  • Page 244 To delete a navigation box, right-click the desired box, select Focus Area of PAP Mode and click Delete. To exit the PAP view, right-click the image and click PAP again.

  • Page 245: Alarm Notification

    Accessing the Camera 15.2.6 Alarm Notification After input triggers and motion detection, you can be alerted by a pop-up live video and view up to four captured images. Pop-up live Captured video images video Figure 15-9 To configure this function, click the Show System Menu button (No. 8, Figure 15-3), and select Alarm Notify.
  • Page 246 I/O Alarm Notify: Once the input device is triggered, the captured images are displayed on the control panel of the Live View window. For this function to work, the Administrator needs to install the input device properly. See 16.2.1 Input Setting. Alert Sound: Activates the computer alarm on motion and input- triggered detection.

  • Page 247: Video And Audio Configuration

    Accessing the Camera 15.2.7 Video and Audio Configuration You can enable the microphone and speaker for two-way audio communication and adjust the audio volume. To change audio configuration, click the Show System Menu button (No. 8, Figure 15-3), and select Video and Audio Configuration. Camera: Sets the number of frames to keep in live view buffer.
  • Page 248 Audio Configure: You can enable the microphone and speaker, and adjust the audio volume Figure 15-12...

  • Page 249: Remote Configuration

    Accessing the Camera 15.2.8 Remote Configuration You can upgrade firmware over the network. Click the Show System Menu button (No. 8, Figure 15-3), and select Remote Config. The Remote Config dialog box will appear. [Firmware Upgrade] In this tab, you can upgrade the firmware over the Internet.

  • Page 250: Visual Ptz

    15.2.11 Visual PTZ Note this feature is only available in PTZ Camera and PT Camera. The Visual PTZ provides two types of PTZ control panels on live images for easy and direct PTZ operation. Activating Visual PTZ Click the PTZ Control button (No.
  • Page 251 Accessing the Camera Figure 15-15 The Visual PTZ Panel provides the following features: Name Description Shortens the apparent distance between the Zoom In camera and the view. Lengthens the apparent distance between the Zoom Out camera and the view. Focus In Adjusts the sharpness of the camera view.
  • Page 252 Setting Visual PTZ Panel Click the .button on the top left corner and select Visual PTZ, the following options will appear. PTZ Control Type: Two types of visual PTZ control panels are available. Type 1: Appears only when a movement of the cursor is detected and disappears when it is static.

  • Page 253: I/O Control

    Accessing the Camera 15.2.12 I/O Control Note this function is only available for Box Camera, Bullet Camera, Ultra Bullet Camera, Vandal Proof IP Dome and Fixed IP Dome. The I/O Control window provides a real-time graphic display of camera status, I/O status, and alarm events. Additionally, you can remotely force output to be triggered.

  • Page 254: Visual Automation

    15.2.13 Visual Automation Note this function is only available for Box Camera, Bullet Camera, Ultra Bullet Camera, Vandal Proof IP Dome and Fixed IP Dome. The Visual Automation allows you to change the current state of the electronic device by simply clicking on its image, e.g. turning the light ON. This feature is only available when the Visual Automation is set ahead by the Administrator.

  • Page 255: Network Status

    Accessing the Camera 15.2.14 Network Status To view the network status, in the left menu, click Network and select Status. Figure 15-18...

  • Page 256: Chapter 16 Administrator Mode

    Chapter 16 Administrator Mode The Administrator can access the system configuration through the network. Eight categories of configurations are involved in the system configuration: Video and Motion, I/O Control or Digital I/O and PTZ, Events and Alerts, Monitoring, Recording Schedule, Remote ViewLog, Network and Management.
  • Page 257 Administrator Mode List of Menu Options Find the topic of interest by referring to the section number prefixed to each option. The available options vary among camera models. 16.1.1 Video Settings 16.1.2 Motion Detection 16.1.3 Privacy Mask 16.1 Video and Motion 16.1.4 Text Overlay 16.1.5 Tampering Alarm 16.1.6 Visual Automation...
  • Page 258 16.8.1 Date and Time Settings 16.8.2 GPS Maps Settings 16.8.3 Storage Settings 16.8.4 User Account 16.8 Management 16.8.5 Log Information 16.8.6 System Log 16.8.7 Tools 16.8.8 Language...

  • Page 259: Video And Motion

    Administrator Mode 16.1 Video and Motion The GV-IPCAM H.264 can simultaneously process one video source in two different codec and resolutions. The dual-stream design benefits for lower bandwidth environment, allowing Streaming 2 set with lower resolution and codec for live streaming, and Streaming 1 set with highest resolution and codec H.264 for best recording quality.

  • Page 260: Video Settings

    This section includes the video image settings and how the images can be managed through Motion Detection, Privacy Mask, Text Overlay, Tampering Alarm, and Visual Automation. 16.1.1 Video Settings Figure 16-2A...
  • Page 261 Administrator Mode Figure 16-2B...
  • Page 262 [Name] Rename the video stream. To display the name of video stream on the Live View window, see 15.2.9 Camera Name Display. [Connection Template] Select the type of your network connection. Unless you select Customized, this option will automatically bring up the recommended video resolution, frame rate, bandwidth and GOP size.
  • Page 263 Administrator Mode CBR (Constant Bitrate): CBR is used to achieve a specific bitrate by varying the quality of the H.264 stream. Select one of the bitrates from the drop-down list. [GOP Structure and Length] Set the maximum number of seconds between every key frame.
  • Page 264 IMPORTANT: To ensure the quality of simultaneous recording and live view access, make sure you connect no more than two connections to the camera using Web interface or any other applications. [Text Overlay Settings] Overlaid with camera name: Includes streaming names on live and recorded videos.
  • Page 265 Administrator Mode [Audio Settings] Note this function is not available for GV-PTZ010D and GV-PT110D. The default settings are audio codec AAC, sample rate 16000 and maximal bit rate 64000. The Sample Rate and Maximal Bit Rate settings are only available with the audio codec AAC. Audio Codec: Select AAC or G.711 using the drop-down list.
  • Page 266 LAN LED, WAN LED, Monitoring LED: Note this option is only available in Advanced Cube Camera. Select Disable if you do not wish to use the LEDs. For details on LED status, see 13.3 Overview. Alarm LED: Sets the white illumination LED (No. 4, Figure 11-1) in Advanced Cube Camera.
  • Page 267 Administrator Mode IR Check Function: Note this option is only available for Box Camera. This function determines whether the surveillance area is illuminated by an externally installed infrared illuminator. Off: The default setting. The infrared illuminator will be constantly off. It is advisable to enable this option when the color temperature of outdoor lighting is 6000 K or above.
  • Page 268 IR Light: Note this function is only available for Ultra Box Camera, Bullet Camera, Ultra Bullet Camera, GV-PT110D, Vandal Proof IP Dome and Fixed IP Dome. Select Auto for automatic switch between day mode and night mode depending on the amount of light detected. Select Off to completely disable IR LEDs.

  • Page 269: Motion Detection

    Administrator Mode 16.1.2 Motion Detection Note for firmware V1.07 or later (except GV-PTZ010D and GV-PT110D), motion detection is disabled by default; for GV-PTZ010D and GV-PT110D, motion detection is enabled by default. Motion detection is used to generate an alarm whenever movement occurs in the video image.
  • Page 270 Select the desired sensitivity by moving the slider. There are ten values. The higher the value, the more sensitive the camera is to motion. Drag an area on the image. Click Add when you are prompted to confirm the setting. To create several areas with different sensitivity values, repeat steps 1 and 2.

  • Page 271: Privacy Mask

    Administrator Mode 16.1.3 Privacy Mask The Privacy Mask can block out sensitive areas from view, covering the areas with dark boxes in both live view and recorded clips. This feature is ideal for locations with displays, keyboard sequences (e.g. passwords), and for anywhere else you don’t want sensitive information visible.

  • Page 272: Text Overlay

    16.1.4 Text Overlay The Text Overlay allows you to overlay any text in any place on the camera view. Up to 16 text messages can be created on one camera view. The overlaid text will be saved in the recordings. Figure 16-5 Select the font, font style and font size in a pop-up window.
  • Page 273 Administrator Mode Click Save to apply the settings, or click Load (Undo) to revert to the last saved setting. Click Preview to see how the text will appear on the image. Click Close to end the preview.

  • Page 274: Tampering Alarm

    16.1.5 Tampering Alarm Note this function is not available for PTZ Camera and PT Camera. The Tampering Alarm is used to detect whether a camera is being physically tampered. An alarm can be generated when the camera is moved, covered up, or out of focus. The alarm approaches include the triggered output device and e-mail alert.
  • Page 275 Administrator Mode To configure the tampering alarm: Select the Enable option. If you want the camera to ignore any movement or scene change in certain areas, click the button to drag areas on the camera view. Select the desired detection sensitivity by moving the slider. The higher the value, the more sensitive the camera is to scene changes.

  • Page 276: Visual Automation

    16.1.6 Visual Automation Note this function is only available for Box Camera, Bullet Camera, Ultra Bullet Camera, Vandal Proof IP Dome and Fixed IP Dome. This intuitive feature helps you automate any electronic device by triggering the connected output device. When you click on the image of the electronic device, you can simply change its current state, e.g.
  • Page 277 Administrator Mode Assign the connected module and output device. In the Note field, type a note to help you manage the device. Click OK to save the settings. To change the frame color of the set area, click the Set Color button. To emboss the set area, select Float Up;...

  • Page 278: I/O Settings

    After installing the I/O device, you need to enable the I/O settings on the camera. For how to install the I/O device on the camera, see the following reference sections: GV-IPCAM H.264 Reference section Box Camera 2.6 I/O Terminal Block Bullet Camera 5.4.1 Connecting the Camera...

  • Page 279: Input Settings

    Administrator Mode 16.2.1 Input Settings To activate the sensor input, select Enable. Figure 16-10 Normal State: You can set the input state to trigger actions by selecting Open Circuit (N/O) or Grounded Circuit (N/C). Latch Mode: Enable this option to have a momentary output alarm. Trigger digital output relay: When this option is enabled, the output will be triggered once the input is activated.
  • Page 280 Input Off: Select a preset point to which the camera returns when the input triggering is off. Duration to set preset after input off: Specify the duration that the camera stays at the Input On point before returning to the Input Off point.

  • Page 281: Output Settings

    Administrator Mode 16.2.2 Output Settings Select Enable to start the output device. Choose the output signal that mostly suits the device you are using: N/O (Open Circuit), N/C (Grounded Circuit), N/O Toggle, N/C Toggle, N/O Pulse or N/C Pulse. For Toggle output type, the output continues to be triggered until a new input trigger ends the output.

  • Page 282: Ptz Settings

    16.2.3 PTZ Settings Note this function is only available in PTZ Camera and PT Camera. You can change the image settings, configure sequences, and access settings including autopan speed, motor reset, digital zoom and system default loading. For details, see Accessing the VISCA OSD Configuration in 8.7.3 PTZ Camera Settings.

  • Page 283: Events And Alerts

    Administrator Mode 16.3 Events and Alerts For the events of motion detection or I/O trigger, the Administrator can set up two trigger actions: 1. Send a captured still image by E-mail or FTP. 2. Notify Center Monitoring Station, Center V2 or VSM, by video or text alerts.

  • Page 284: E-Mail

    16.3.1 E-mail After a trigger event, the camera can send the e-mail to a remote user containing a captured still image. Figure 16-13 [Enable] Select to enable the e-mail function. Sever URL/IP Address: Type the URL address or IP address of the SMTP Server.
  • Page 285 Administrator Mode [Need authentication to login] If the SMTP Server needs authentication, enable this option and type a valid username and password to log in the SMTP server. [E-Mail Alarm Settings] You can choose to automatically send an e-mail alert under these conditions: tampering alarm (not available for PTZ and PT Camera), disk write error (Rec Error), full memory card (HD Full), motion detection and input trigger (not available for Ultra Box Camera, Mini Fixed Dome, Mini Fixed Rugged Dome, Cube Camera and...

  • Page 286: Ftp

    16.3.2 FTP You can also send the captured still image to a remote FTP server for alerts. Figure 16-14 [Upload to an FTP Server] Enable: Select to enable the FTP function. Server URL/IP Address: Type the URL address or IP address of the FTP Server.

  • Page 287: Alarm Settings

    Administrator Mode Alerts Interval time in minute: Specify the interval between FTP alerts. The interval can be between 0 and 60 minutes. The option is useful for the frequent event occurrence by which any event triggers during the interval period will be ignored. [Alarm Settings] Motion Detection: When a motion is detected on the camera, a still image will be sent to the FTP Server.
  • Page 288 To access the internal FTP server through a web browser, enter the IP address or the domain name of the camera in your browser like this: ftp://192.168.0.10 When you are prompted for Username and Password, enter the default value username ftpuser and password 123456. Then you should find the AVI files recorded after trigger events.

  • Page 289: Center V2

    Administrator Mode 16.3.3 Center V2 After a motion or an I/O triggered event, the central monitoring station Center V2 can be notified by live videos and text alerts. For the live monitoring through Center V2, you must already have a subscriber account on Center V2.
  • Page 290 To enable the Center V2 connection: Activate Link: Enable the monitoring through Center V2. Host Name or IP Address: Type the host name or IP address of Center V2. Port Number: match the port to the Port 2 value on Center V2 or keep the default value 5551.

  • Page 291: Vsm

    Administrator Mode 16.3.4 VSM After a motion or an I/O triggered event, the central monitoring station VSM can get notified by text alerts. For the monitoring through VSM, you must already have a subscriber account on VSM. A camera can connect up to 2 VSM simultaneously.
  • Page 292 To enable the VSM connection: Activate Link: Enable the monitoring through VSM. Host Name or IP Address: Type the host name or IP address of VSM. Port Number: Match the port to the Port 2 value on VSM. Or keep the default value 5609.

  • Page 293: Backup Center

    Administrator Mode 16.3.5 Backup Center For the supported version of different models, see Appendix D. The connection to the GV-Backup Center allows you to back up another copy of recordings and system log to the GV-Backup Center on an offsite location while the camera is saving these data to the memory card.
  • Page 294 To enable connection to GV-Backup Center: Activate Link: Enable the connection to the GV-Backup Center. Host Name or IP Address: Type the host name or IP address of the GV-Backup Center. Port Number: Match the communication port on the GV-Backup Center or keep the default value 30000.
  • Page 295 Administrator Mode If you have a failover GV-Backup Center server which provides uninterrupted backup services in case the first GV-Backup Center failed, configure the failover GV-Backup Center as below. Automatic Failover Support: Enable the automatic connection to the failover GV-Backup Center once the connection between camera and the first GV-Backup Center is interrupted.

  • Page 296: Video Gateway / Recording Server

    16.3.6 Video Gateway / Recording Server For the supported version of different models, see Appendix D. The GV-Video Gateway / GV-Recording Server is a video streaming server designed for large-scale video surveillance deployments. The GV-Video Gateway / GV-Recording Server (with recording capability) can receive up to 128 channels from various IP video devices, and distribute up to 300 channels to its clients.
  • Page 297 Administrator Mode The supported GV-IPCAM H.264 can connect up to two GV-Video Gateway / GV-Recording Server. To send the video images to the GV- Video Gateway or GV-Recording Server, follow the steps below. Activate Link: Enable the connection to the GV-Video Gateway / GV- Recording Server.

  • Page 298: Viewlog Server

    16.3.7 ViewLog Server The ViewLog Server is designed for remote playback function. This server allows you to remotely access the recorded files saved at the GV-IPCAM H.264 and play back video with the ViewLog player. Select Enable to activate the built-in server. Keep the default port 5552 or modify it if necessary.

  • Page 299: Rtsp

    The number of ports for use is limited to 20. Max Connection: Set the maximum number of RTSP and 3GPP connections to the GV-IPCAM H.264. The maximum value is 10. Enable Audio: Turns audio streaming on or off. For the supported firmware versions, see Appendix D.

  • Page 300: Speaker

    16.3.9 Speaker Note this function is only available for Advanced Cube Camera. The Advanced Cube camera is equipped with an alarm. With the Speaker settings, your camera can sound the speaker (No. 1, Figure 11-1) when it is being tampered or when motions are detected. This function is disabled by default.

  • Page 301: Monitoring

    Administrator Mode 16.4 Monitoring You can start monitoring manually, by schedule or by input trigger. Note: See Note for Connecting to GV-System at the beginning of the manual. Figure 16-22 [Manual] Manually activates motion detection and I/O monitoring. Select one of the following options and then click the Start button. Select all: Manually starts both motion detection and I/O monitoring.
  • Page 302 [Schedule] The system starts motion detection and I/O monitoring according to the schedule you have set. For schedule settings, see 16.5 Recording Schedule. [Camera Status Icon] : On standby : Enabled for motion detection and input trigger : Recording is on.

  • Page 303: Recording Schedule

    Administrator Mode 16.5 Recording Schedule The schedule is provided to activate recording and I/O monitoring on a specific time each day. 16.5.1 Recording Schedule Settings You can set the schedule for recording. Figure 16-23 Span 1- Span 3: Set a different recording mode for each time frame during the day.

  • Page 304: I/O Monitoring Settings

    16.5.2 I/O Monitoring Settings Note this function is not available for Ultra Box Camera, Mini Fixed Dome, Mini Fixed Rugged Dome, Cube Camera and Advanced Cube Camera. You can set the schedule for I/O monitoring to start. Figure 16-24 Span 1- Span 3: Set different time frames during the day to enable I/O monitoring.

  • Page 305: Remote Viewlog

    16.6 Remote ViewLog With the Remote ViewLog player, you can play back the files recorded at the GV-IPCAM H.264 over TCP/IP network. For the first-time user, you need to install the Remote ViewLog program from the Software CD. To allow remote access to the camera, the ViewLog Server built in the unit must be enabled.

  • Page 306: Network

    16.7 Network The Network section includes some basic but important network configurations that enable the camera to be connected to a TCP/IP network. 16.7.1 LAN Configuration According to your network environment, select among Static IP, DHCP and PPPoE. Figure 16-25...
  • Page 307 Administrator Mode [LAN Configuration] Note the Wireless Settings are only available in GV-CBW120 / 220 and GV-CAW120 / 220. According to the network environment, select Wired or Wireless. Before enabling the Wireless option, follow the steps in 12.1.3 Configuring the Wireless Connection to configure the wireless settings first. [LAN Configuration] Dynamic IP address: The network environment has a DHCP server which will automatically assign a dynamic IP address to the camera.

  • Page 308: Wireless Client Mode

    16.7.2 Wireless Client Mode Note this function is only supported in GV-CBW120 / 220 and GV-CAW120 / 220. Set up the client mode before enabling the wireless function. Figure 16-26 Network type: Select the network mode Ad Hoc or Infrastructure. Infrastructure: Connect to the Internet via the Access Point.
  • Page 309 Administrator Mode Access Point Survey: Click this button to search all the available Access Points (Infrastructure mode) and wireless stations (AD-Hoc mode) within the LAN. Authentication Type: Select one of these network authentication and data encryption: Disable, WEP, WPAPSK-TKIP, WPAPSK-AES, WPA2PSK-TKIP or WPA2PSK-AES.

  • Page 310: Advanced Tcp/Ip

    16.7.3 Advanced TCP/IP This section provides the advanced TCP/IP settings, including DDNS Server, HTTP port, HTTPS, streaming port, UPnP, QoS and network connection check. Figure 16-27A...
  • Page 311 DHCP Server or ISP (in xDSL connection) has changed. Before enabling the following DDNS function, the Administrator should have applied for a Host Name from the DDNS service provider’s website. There are 2 providers listed in the camera: GeoVision DDNS Server and DynDNS.org. To enable the DDNS function: Enable: Enable the DDNS function.
  • Page 312 1024 through 65535. Note: The .pem file format is supported by Certificate and Private Key. [GV-IPCAM Streaming Port Settings] The VSS port enables connecting the camera to the GV-System. The default setting is 10000.
  • Page 313 Administrator Mode To apply QoS to GV-IPCAM H.264, all network routers must support QoS and QoS must be enabled on these devices. To enable the QoS on GV- IPCAM H.264, enter a Differentiated Services Code Point (DSCP) value. This value is a field in an IP packet that enables different levels of services for the network traffic.

  • Page 314: Ip Filter Settings

    16.7.4 IP Filter Settings The Administrator can set IP filtering to restrict access to the camera. Figure 16-28 To enable the IP Filter function: Enable IP Filtering: Enable the IP Filter function. Filtered IP: Type one IP address or a range of IP addresses you want to restrict the access.

  • Page 315: Snmp Settings

    Administrator Mode 16.7.5 SNMP Settings The Simple Network Management Protocol (SNMP) allows you to monitor the status of the camera through SNMP network management software. Figure 16-29...
  • Page 316 Select Enable SNMPv1 SNMPv2c to enable the function. To enable access to Read/Write community, type a community string. This will serve as a password to allow read and write access to the camera from the SNMP software. To enable Read only community, type a community string to allow read-only access to the camera from the SNMP software.

  • Page 317: Management

    Administrator Mode 16.8 Management The Management section includes the settings of data and time and user account. You can also view the firmware version and execute certain system operations. 16.8.1 Date & Time Settings The date and time settings are used for date and time stamps on the image. Figure 16-30...
  • Page 318 [Date & Time on GV-IP Camera] Displays the current date and time on the camera. [Time Zone] Sets the time zone for local settings. Select Enable Daylight Saving Time to automatically adjust the camera for daylight saving time. Type the Start Time and End Time to enable the daylight saving function. To play back, see 17.2.4 Playback of Daylight Saving Time Events.

  • Page 319: Gps Maps Settings

    Administrator Mode 16.8.2 GPS Maps Settings The Maps Settings allows you to see the location of your GV-IPCAM H.264 on Google maps, without a GPS device. To see the location of your camera on maps: It is required to sign up for a Google Maps API key before using the Google Maps.
  • Page 320 Click Open. A warning message appears. Figure 16-33 Right-click the warning message and select Allow Blocked Content. The map will be displayed. The icon indicates the location of your camera. At the upper right corner you have options to view different map formats, such as Satellite and Hybrid.

  • Page 321: Storage Settings

    Administrator Mode 16.8.3 Storage Settings Based on Linux file system, the GV-IPCAM H.264 supports memory cards for video and audio recordings. You need to format the storage device by using the following Storage Settings. After being formatted, the storage device will be ready to use by Linux OS of the camera.
  • Page 322 [Disk Information] This section shows the details of the attached storage device. [Partition Information] This section shows the partition details of the attached storage device. To add a storage device: Insert the storage device to the camera. Click the Format button. After the format is complete, the partition information will display.

  • Page 323: User Account

    Administrator Mode 16.8.4 User Account You can change the login name and password of Administrator and Guest. The default Administrator login name and password are admin; the default Guest login name and password are guest. To allow a Guest user log in without entering name and password, select Disable authentication for guest account.

  • Page 324: Log Information

    16.8.5 Log Information The log information contains dump data that is used by service personnel for analyzing problems. Figure 16-37...

  • Page 325: System Log

    Administrator Mode 16.8.6 System Log For the supported versions, see Appendix F. The System Log records the events in the four types of logs: System Event, Monitoring Event, I/O Event and Login/Logout Event. With the System Log, you can search and obtain the detailed information of an event.
  • Page 326 Click Query. The filtering results may look like the figure below. Figure 16-39...

  • Page 327: Tools

    Administrator Mode 16.8.7 Tools You can execute certain system operations and view the firmware version. Figure 16-40...
  • Page 328 [Host Settings] Enter a descriptive name for the camera. [Auto Reboot Setup] Select Enable to activate automatic reboot and specify the time for reboot in the sub fields. Day Interval: Type the day interval between each reboot. Reboot Time: Use the drop-down lists to specify the time for automatic reboot.

  • Page 329: Language

    Administrator Mode 16.8.8 Language Note this function is not available in GV-PTZ010D and GV-PT110D. You can select the language for the Web interface. Figure 16-41 Use the Language drop-down list to select a language for the Web interface. By default, the language on the Web interface will be the same with the one used for the operating system.

  • Page 330: Chapter 17 Recording And Playback

    Chapter 17 Recording and Playback The GV-IPCAM H.264 can record video and audio directly to the memory card. You can play back the recorded files on the GV-System or over the TCP/IP network. Note: See Note for Recording at the beginning of the manual.

  • Page 331: Playback

    Server 17.2.1 Playback Using the Memory Card You can play back the files recorded at the GV-IPCAM H.264 by connecting the memory card to GV-System through a memory card reader. However, GV-System is run on Windows system while the files recorded at the GV-IPCAM H.264 is of Linux file system.
  • Page 332 Run ViewLog. Click the Advanced button , select Reload Database and click Video Server/Compact DVR. This dialog box appears. Figure 17-2 Click Add to assign the hard drive. Click OK to load the data to the ViewLog for playback. Note: IFS Driver supports Windows NT / 2000 / XP / Windows 7. For Windows 7, refer to ftp://geo-demo- japan.dipmap.com/Technotice/GV_IP_Devices/Run_IFS_Driver_Win7.pdf...

  • Page 333: Playback Over Network

    Recording and Playback 17.2.2 Playback over Network With the Remote ViewLog function, you can play back the files recorded at the GV-IPCAM H.264 over TCP/IP network. The camera needs to allow the remote access with ViewLog Server activated. See 16.3.7 ViewLog Server.

  • Page 334: Access To The Recorded Files Through Ftp Server

    GV-System for playback. The following instructions describe how to retrieve the recorded files from the GV-IPCAM H.264 over network. If you like to use the memory card for playback, first follow the instructions in 17.2.1 Playback Using the Memory Card to load the recorded files to ViewLog, and then follow Steps 4-5 below to play back DST events.
  • Page 335 Recording and Playback To remotely connect to the camera from GV-System, click the Tools button and select Remote ViewLog Service. The Connect to Remote ViewLog Service dialog box appears. Enter the connection information of the camera, and click Connect. Once the connection is established, the video events will be displayed on the Video Event list.

  • Page 336: Chapter 18 Advanced Applications

    This chapter introduces more advanced applications. 18.1 Upgrading System Firmware GeoVision periodically releases updated firmware on the website. Simply download the new firmware into the GV-IPCAM H.264 using the Web interface or IP Device Utility included in the Software CD. Important Notes before You Start...
  • Page 337 Advanced Applications Do not turn the power off within 10 minutes after the firmware is updated. If firmware upgrade fails, you will need to restore the camera to its default settings. For details, see 18.3 Restoring to Factory Default Settings.

  • Page 338: Using The Web Configuration Interface

    18.1.1 Using the Web Configuration Interface In the Live View window, click the Show System Menu button (No. 8, Figure 13-3) and select Remote Config. This dialog box appears. Figure 18-1 Click the Browse button to locate the firmware file (.img) saved at your local computer.

  • Page 339: Using The Ip Device Utility

    18.1.2 Using the IP Device Utility The IP Device Utility provides a direct way to upgrade the firmware to multiple units of GV-IPCAM H.264. Note the computer used to upgrade firmware must be under the same network of the camera.
  • Page 340 Double-click one camera in the list. This dialog box appears. Figure 18-3 Click the Firmware Upgrade tab. This dialog box appears. Figure 18-4 Click the Browse button to locate the firmware file (.img) saved at your local computer. If you like to upgrade all the cameras in the list, select Upgrade all devices.

  • Page 341: Backing Up And Restoring Settings

    18.2 Backing Up and Restoring Settings With the IP Device Utility included in the Software CD, you can back up the configurations in the GV-IPCAM H.264, and restore the backup data to the current camera or import it to another camera.
  • Page 342 To restore the settings: In Figure 18-3, click the Import Settings tab. This dialog box appears. Figure 18-6 Click the Browse button to locate the backup file (.dat). Select Upgrade all devices to import the settings into the same type of device in the same LAN.

  • Page 343: Restoring To Factory Default Settings

    Advanced Applications 18.3 Restoring to Factory Default Settings Please refer to the corresponding section of your camera type and follow the steps to restore factory default settings. Box Camera Keep the power and network cables connected to the camera. Use a pin to press and hold the default button on the back panel of the camera.
  • Page 344 Ultra Box Camera Keep the power and network cables connected to the camera. Use a pin to press and hold the default button on the back panel of the camera. Figure 18-9 Release the default button when the status LED blinks. This shall take about 8 seconds.
  • Page 345 Advanced Applications Mini Fixed Dome Keep the power and network cables (or PoE) connected to the camera. Press and hold the default button. Figure 18-11 Release the default button when the status LED blinks. This shall take about 8 seconds. When the status LED fades, the process of loading default settings is completed and the camera reboots automatically.
  • Page 346 Release the default button when the status LED blinks. This shall take about 8 seconds. When the status LED fades, the process of loading default settings is completed and the camera reboots automatically. Bullet Camera Keep the power and network cables connected to the camera. Loosen the camera’s cover and remove the Silica Gel Bag.
  • Page 347 Advanced Applications Ultra Bullet Camera Keep the power and network cables (or PoE) connected to the camera. Press and hold the default button. Figure 18-14 Release the default button when the status LED blinks. This shall take about 8 seconds. When the status LED fades, the process of loading default settings is completed and the camera reboots automatically.
  • Page 348 Click the Load Camera Default button. Figure 18-15 To load system default settings: Unplug the power cable and the network cable (or the PoE cable). Press and hold the default button (No. 10, Figure 6-1). Power on the camera using the power cable or the PoE cable. Hold the default button until the two network LEDs fade.
  • Page 349 Advanced Applications When default loading is completed, the camera will pan and tilt to its full range and return to the home point. Vandal Proof IP Dome Keep the power and network cables (or PoE) connected to the camera. Use a pin to press and hold the default button on the inner housing. Default button Status LED Figure 18-17...
  • Page 350 Fixed IP Dome Keep the power and network cables (or PoE) connected to the camera. Use a pin to press and hold the default button on the panel. Default button Status LED Figure 18-18 Release the default button when the status LED blinks. This shall take about 8 seconds.
  • Page 351 Advanced Applications Cube Camera Keep the power and network cables connected to the camera. Use a pin to press and hold the default button on the panel. Default button Status LED Figure 18-19 Release the default button when the status LED blinks. This shall take about 8 seconds.
  • Page 352 Release the default button when the status LED blinks. This shall take about 8 seconds. When the status LED turns green, the process of loading default settings is completed and the camera is ready for use.

  • Page 353: Verifying Watermark

    Use the Act as FTP Server function to download AVI files from the GV-IPCAM H.264. See 16.3.2 FTP. Use the files recorded on the memory card. Since the files saved on the memory card are of Linux file system, remember to run IFS Drives from the Software CD to convert the Linux-based files to Windows-based files.

  • Page 354: Running Watermark Proof

    18.4.2 Running Watermark Proof Install Watermark Proof from the Software CD. After installation, a WMProof icon is created on your desktop. Double-click the created icon. The Water Mark Proof window appears. Click File from the menu bar, select Open and locate the recording (.avi).

  • Page 355: The Watermark Proof Window

    Advanced Applications 18.4.3 The Watermark Proof Window Figure 18-21 The controls in the window: No. Name Description Open File Opens the recording. First Frame Goes to the first frame of the file. Play Plays the file. Previous Frame Goes to the previous frame of the file. Next Frame Goes to the next frame of the file.

  • Page 356: Downloading Videos From The Sd Card

    GV-IP Cameras. To automatically synchronize and download recordings from the SD cards to a local folder, install and execute the GV-SDCardSync Utility program. Note: GV-SDSyncCard Utility is only supported in GV-System V8.5.4 or later and in GV-IPCam H.264 V1.11 or later.

  • Page 357: Installing The Gv-Sdcardsync Utility

    Advanced Applications 18.5.1 Installing the GV-SDCardSync Utility Download the GV-SD Card Sync Utility program from http://ftp.geovision.tw/FTP/neo/Utility/GvSDCardSync_Setup.zip Note: The GV-SD Card Sync Utility must be installed on the computer installed with GV-System V8.5.4 or later. Execute the GV-SDCard Sync Utility program. The main window and the Setting window appear.
  • Page 358 To configure synchronization, network and startup settings, see the steps below. Figure 18-23 [Synchronization] Synchronize automatically at an interval: Automatically synchronize videos from SD cards to a local folder at the specified interval. Synchronize automatically at: Automatically synchronize videos from SD cards to a local folder at the specified time. Download Audio Files: You may choose to download audio files along with the video files.
  • Page 359 Advanced Applications [Network] Max. download speed of each device (Kb/sec): To make sure the bandwidth is not completely taken up while downloading files from the memory card, specify a maximum download speed. If you do not want to set a bandwidth limit, type 0. [General] Start up automatically at Windows login: GV-SDSync Utility launches automatically when Windows starts up.
  • Page 360 [Recycle] Recycle when the storage space is less than (GB): Specify a minimum free space of your local storage for file recycling. Keep the downloaded files for (Days): Specify the number of days to keep the download files at the local hard drive. [Storage Location] To configure the storage path, click the button next to the location field and specify a storage location.

  • Page 361: The Gv-Sdcardsync Utility Window

    Advanced Applications 18.5.2 The GV-SDCardSync Utility Window After you have installed the GV-SDCardSync Utility, point to Start, select Programs, select GV-SDCardSync and select to launch the program. This window appears. Figure 18-25 No. Name Description Plays downloaded recordings of the selected GV-IP Cameras using the ViewLog player.
  • Page 362 Note: 1. The synchronization time is recorded according to the system time of the GV-IP Camera. 2. The logs are deleted once the GV-SDCardSync Utility is re- activated.

  • Page 363: Chapter 19 Dvr Configurations

    Chapter 19 DVR Configurations The GV-System provides hybrid solution, integrating the digital videos from IP cameras with other analog videos. For the digital videos, the GV-System provides the complete video management, such as video viewing, recording, playback, alert settings and almost every feature of the system. Following is the integration specifications: TCP/ IP IP Camera...
  • Page 364 • The compatible version of GV-System for each camera model: Compatible version Camera Models of GV-System GV-BX120D GV-BX220D Series V8.4 or later GV-BX320D Series GV-BX130D Series V8.5 or later GV-BX140DW Box Camera GV-BX520D-0 GV-BX1200 Series GV-BX1300 Series GV-BX2400 Series V8.5.5 or later GV-BX3400 Series GV-BX5300 GV-UBX1301 Series...
  • Page 365 DVR Configurations Compatible version Camera Models of GV-System GV-MDR120 Mini Fixed GV-MDR220 V8.5 or later Rugged Dome GV-MDR320 GV-MDR520 GV-BL120D V8.4 (with patch GV-BL220D files) or later GV-BL320D GV-BL130D V8.5 or later GV-BL1200 Bullet Camera GV-BL1300 GV-BL2400 GV-BL3400 V8.5.6 or later GV-BL1210 GV-BL2410 GV-BL3410...
  • Page 366 Compatible version Camera Models of GV-System PTZ and PT GV-PTZ010D V8.4 or later Camera GV-PT110D GV-VD120D Series Vandal Proof IP GV-VD220D Series V8.4 (with patch Dome files) or later GV-VD320D Series GV-FD120D V8.4.3 (with patch Fixed IP Dome GV-FD220D files) or later GV-FD320D V8.4.3 (with patch GV-CB120...
  • Page 367 DVR Configurations • The maximum number of streams which the GV-IPCAM H.264 allows varies according to its resolution: Max. No. of Resolution Camera Models Streams 1.3 M PTZ010D, PT110D 1.3 M BX120D, BX130D Series, BX140DW, BX120D-E, BX1200 Series, BX1300 Series, UBX1301 Series, MFD120,...
  • Page 368 • When a GV-IPCAM H.264 is connected to IE browser or any other applications, it takes up 1 stream; when a GV-IPCAM H.264 is connected to GV-System, it takes up 2 streams. Note: The above maximum numbers of streams are based on the maximum resolution for each camera and the codec H.264.

  • Page 369: Setting Up An Ip Camera

    DVR Configurations 19.1 Setting up an IP Camera To set up the GV-IPCAM H.264 on the GV-System, follow these steps: On the main screen, click the Configure button, select System Configure, select Camera Install and click IP Camera Install. This dialog box appears.
  • Page 370 Click Add Camera. The dialog box appears. Figure 19-3 Type the IP address, username and password of the IP camera. Select the camera brand and device from the drop-down lists. This dialog box appears. Figure 19-4 The GV-System will automatically query for the IP camera, and the status will be indicated as “Standby”.
  • Page 371 DVR Configurations The options in the setup dialog box may vary depending on the camera model. Dual Stream: Click this button to set the codec type to H.264 in the main stream and to MJPEG in the sub stream, and each stream with a different resolution.

  • Page 372: Customizing Ip Camera Settings

    19.1.1 Customizing IP Camera Settings After the IP camera is connected and assigned with a display position, you can configure the camera’s settings such as frame rate, codec type and resolution. Right-click the desired camera to see the following list of options: Figure 19-6 Change Resolution: Changes the display ratio, live view resolution and record resolution...
  • Page 373 Recording Codec Format: Specifies whether to record in standard or GeoVision type of JPEG or H.264 codec. GIS Setting: Records the video with the GPS data. To record the GPS data, remember to also enable the GIS function of the GV- System (Configure button <...

  • Page 374: Remote Monitoring With Multi View

    19.2 Remote Monitoring with Multi View You can use the Multi View to monitor and manage the GV-IPCAM H.264. 19.2.1 Connecting to the IP Camera On the Multi View window, click the Edit Host button. The Edit Host window appears.

  • Page 375: Remote Monitoring With E-Map

    H.264. 19.3.1 Creating an E-Map for the IP Camera With the E-Map Editor, you can create an E-Map for the GV-IPCAM H.264. The E-Map Editor is available in the two applications: Main System and E- Map Server. The following is an example of running the E-Map Editor included in the Main System.
  • Page 376 Click OK to save the settings. Expand the created host folder. Drag and drop the icons of camera and I/O devices onto the imported E-Map. Close the E-Map Editor. Click Yes when you are promoted to save the file. For details on creating an E-Map file on the E-Map Server, see “E-Map Server”, E-Map Application, DVR User’s Manual on the Surveillance System Software DVD.

  • Page 377: Connecting To The Ip Camera

    DVR Configurations 19.3.2 Connecting to the IP Camera Depending on where you save the created E-Map file (DVR, E-Map Server or Control Center), the steps to open the Remote E-Map window for monitoring may vary slightly. The following is the connection example when you store the E-Map file on the DVR.

  • Page 378: Chapter 20 Cms Configurations

    IPCAM H.264 in the central monitoring stations Center V2, VSM and Dispatch Server. 20.1 Center V2 The Center V2 can monitor and manage the camera and I/O devices connected to the GV-IPCAM H.264. TCP/ IP IP Camera Video Data Text Data...
  • Page 379 CMS configurations • To set the appropriate port for IP camera connection, click the Preference Settings button, select System Configure, click the Network tab, and select Accept connections from GV-Compact DVR, Video Server & IP Cam. Keep default port 5551, or modify it to match the Center V2 port on the IP camera.
  • Page 380 Manual close channel: Closes the triggered camera view manually. Close the camera view when motion stopped: Closes the triggered camera view automatically when motion stops. Post Motion: Specify the duration of the camera view remaining on the monitoring window after a motion stops. Camera send by I/O trigger will monitor: Specify the duration of the camera view remaining on the monitoring window when an I/O device is triggered.

  • Page 381: Vsm

    CMS configurations 20.2 VSM The VSM is designed to monitor and manage the camera and I/O devices connected to the GV-IPCAM H.264 under low bandwidth network. TCP/ IP IP Camera Text Data IP Camera Figure 20-4 • To set the appropriate port connecting to the IP camera, click Configure on the window menu, and select System Configure to display this dialog box.

  • Page 382: Dispatch Server

    20.3 Dispatch Server The Dispatch Server minimizes overloading of Center V2 Servers by re- distributing GV-IPCAM H.264 subscribers to the least busy Center V2 Server. TCP/ IP Center V2 IP Camera Video Data Text Data Dispatch Server IP Camera Center V2...
  • Page 383 CMS configurations • To set the appropriate port connecting to the IP camera, click the Server Setting button on the toolbar, and select Allow GV IP devices to login as subscriber from port. Keep the default port as 5551, or modify it to match the Center V2 port on the IP camera. Figure 20-7 For further information on how to mange the video received from the IP camera, see GV-CMS Series User’s manual.

  • Page 384: Chapter 21 Smart Device Connection

    Chapter 21 Smart Device Connection You can receive live video streaming from the GV-IPCAM H.264 through smart devices listed in the below chart. Handheld Video Settings on OS Supported Default Port Device View GV-IPCAM H.264 - Android V2.2 to VSS Port: GV-Eye (HD) 4.0.4...

  • Page 385: Android

    Smart Device Connection 21.1 Android Download GV-Eye from Android Market and install the application. The GV-Eye icon will appear on the desktop. Figure 21-1 21.1.1 Connecting to GV-IP Camera Tap the GV-Eye icon on you device. This page appears. Figure 21-2...
  • Page 386 Type the IP address, port number (default value is 10000), user name and password of the GV-IP devices you want to access. And then tap the Add button to save the connection information in the address book. Tap the created link in the address book. Figure 21-3 Tap the Connection button to access the GV-IP devices.

  • Page 387: Accessing Live View

    Smart Device Connection 21.1.2 Accessing Live View You can press the Menu button on the mobile phone to see or hide the connection information. Figure 21-4 The following function buttons are available: Icon Name Function Switches to a different channel. You can drag Channel across the numbers to see more channels.
  • Page 388 Icon Name Function Enables or disables the audio function. G.711 Audio and G.723 audio codec are supported. Enables the PTZ function. A message will Control appear asking if you want to use Gesture Detector to control PTZ. Tap OK if you want to be able to drag across the live view screen to control the PTZ function in addition to using the PTZ control buttons on the bottom of the...

  • Page 389: Apple

    Smart Device Connection 21.2 Apple Download GV-Eye / HD from App Store and install the application. The GV-Eye / GV-EyeHD icon will appear on the desktop. Figure 21-5...

  • Page 390: Connecting To Gv-Ip Camera

    21.2.1 Connecting to GV-IP Camera To connect your iPhone, iPod Touch or iPad to the GV-IP Speed Dome, follow these steps: Tap the GV-Eye icon on the desktop of your phone. The welcome page appears. Tap the Add button This page appears. Figure 21-6 Enter the Host name, Domain/IP address, port number (default value is 10000), username and password to log in to the GV-IP...
  • Page 391 Smart Device Connection Tap the Save button. The GV-IP Camera is now added to the IPCam list and will be available the next time you access GV-Eye. You can tap the Edit button and then select an IP camera to edit existing device login information.

  • Page 392: Accessing Live View

    21.2.2 Accessing Live View You can tap the information button at the top-right corner to see the connection information. Figure 21-8...
  • Page 393 Smart Device Connection The buttons below are available when the iPhone, iPod Touch or iPad is positioned vertically. Icon Name Function Screen Displays up to four channels on the same page if division the GV-IP device supports multiple channels. • Enables PTZ control.

  • Page 394: Specifications: Box Camera (Part 1)

    Specifications: Box Camera (Part 1) This section provides specifications on GV-BX120D / 130D Series / 140DW / 220D Series / 320D Series / 520D. Camera GV-BX120D 1/3" progressive scan CMOS GV-BX140DW Image GV-BX130D Series Sensor GV-BX220D Series 1/2.5” progressive scan CMOS GV-BX320D Series GV-BX520D-0 GV-BX140DW...
  • Page 395 Specifications: Box Camera (Part 1) Color 0.2 Lux at F/1.4 GV-BX140DW 0.08 Lux at F/1.4 IR On 0 Lux 1 Lux (1/30 sec), 0.5 Lux Color (1/5 sec) GV-BX220D Series Minimum 0.2 Lux (1/30 sec), 0.1 Illumination GV-BX320D Series Lux (1/5 sec) IR On 0 Lux Color 0.5 Lux at F/1.6 GV-BX520D-0...
  • Page 396 GV-BX120D GV-BX130D Series GV-BX220D Series GV-BX320D Series GV-BX520D-0 GV-BX140DW WDR Pro GV-BX140DW Yes (with WDR sensor) Fixed Focal Lens (GV-BX130D-1 only) Megapixel Day/Night Yes (with removable IR-cut filter) Focal Length 4.0 mm Maximum Aperture F/1.5 Mount Image Format 1/3” Focus Manual Zoom Fixed...
  • Page 397 Specifications: Box Camera (Part 1) Varifocal Lens Megapixel Day/Night Yes (with removable IR-cut filter) GV-BX120D GV-BX130D-0 2.8 ~ 12 mm GV-BX140DW GV-BX220D-3 Focal Length GV-BX320D-0 3.1 ~ 8 mm GV-BX220D-2 2.8 ~ 6 mm GV-BX320D-1 GV-BX520D-0 4.5 ~ 10 mm GV-BX120D GV-BX130D-0 F/1.4...
  • Page 398 Focus Manual (w/lock) Zoom Manual (w/lock) GV-BX120D GV-BX130D-0 Operation DC drive GV-BX220D Series Iris GV-BX320D Series GV-BX140DW Fixed GV-BX520D-0 Manual Max. Torque 0.049 N.m (Focus/ Zoom Screws) Operation Video Compression H.264, MJPEG Video Stream Dual streams from H. 264 or MJPEG GV-BX120D 30 fps at 1280 x 1024 GV-BX130D Series...

  • Page 399: Video Resolution

    Specifications: Box Camera (Part 1) Note: The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes). GV-BX140DW does not support D/N sensitivity, backlight compensation, manual shutter speed, WDR and defog adjustment settings. AAC is only supported by GV-System V8.5 or later.
  • Page 400 2048 x 1536, 1600 x 1200, 1280 x 960, 640 x 480, 320 x 240 Main 1920 x 1080, 1280 x 720, 16:9 Stream 640 x 360, 448 x 252 GV-BX320D Series 1280 x 1024, 640 x 512, 320 x 256 640 x 480, 320 x 240 16:9 640 x 360, 448 x 252...
  • Page 401 Specifications: Box Camera (Part 1) Mechanical Temperature Detector Power 2-pin terminal block, PoE Connectors Ethernet RJ-45 1 In (Using the built-in microphone or externally connecting a microphone) Audio 1 Out (Stereo phone jack, 3.5 mm / 0.14 in) GV-BX130D-1 GV-BX140DW Not functional GV-BX520D-0 Auto Iris...

  • Page 402: Power Over Ethernet

    General Environment Temperature 0°C ~ 50°C / 32°F ~ 122°F Humidity 10% to 90% (no condensation) Power Source 12V DC / PoE Max. Power Consumption 7 W 75.5 x75 x 54 mm / 2.97 x 2.95 x 2.13 in Dimensions (L X W X H) (without lens) Weight 321 g / 0.71 lb...
  • Page 403 Specifications: Box Camera (Part 1) Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian / Language Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish...

  • Page 404: Specifications: Box Camera (Part 2)

    Specifications: Box Camera (Part 2) This section provides specifications on GV-BX1200 Series / 1300 Series / 2400 Series / 3400 Series / 5300. Camera GV-BX1200 Series 1/3" progressive scan CMOS GV-BX2400 Series 1/3.2" progressive scan CMOS Image Sensor GV-BX3400 Series GV-BX1300 Series 1/2.5’’...
  • Page 405 Specifications: Box Camera (Part 2) IR On 0 Lux Shutter Speed Automatic, Manual (1/5 ~ 1/8000 sec) White Balance Automatic, Manual (2800K ~ 8500K) Gain Control Automatic GV-BX1200 Series 50 dB GV-BX1300 Series 45 dB S/N Ratio GV-BX5300 GV-BX2400 Series 47 dB GV-BX3400 Series GV-BX2400 Series...
  • Page 406 GV-BX1200-0F GV-BX1300-0F F/1.5 GV-BX2400-0F GV-BX3400-0F GV-BX1200-1F GV-BX1200-2F Maximum Aperture GV-BX1300-1F GV-BX1300-2F F/1.6 GV-BX2400-1F GV-BX2400-2F GV-BX3400-1F GV-BX3400-2F Mount GV-BX1200-0F GV-BX1300-0F 1/3” GV-BX2400-0F GV-BX3400-0F GV-BX1200-1F GV-BX1200-2F Image Format GV-BX1300-1F GV-BX1300-2F 1/2.5” GV-BX2400-1F GV-BX2400-2F GV-BX3400-1F GV-BX3400-2F Focus Manual (w/lock) Zoom Fixed Operation Iris Fixed Torque (Focus Screw) 0.049 N.m...
  • Page 407 Specifications: Box Camera (Part 2) Varifocal Lens (GV-BX1200-3V / BX1300-3V / BX2400-3V / BX2400-4V / BX3400-4V / BX3400-5V / BX5300 only) Megapixel Day/Night Yes (with removable IR-cut filter) GV-BX1200-3V GV-BX1300-3V 2.8 ~ 12 mm GV-BX2400-3V GV-BX2400-4V Focal Length 3 ~ 10.5 mm GV-BX3400-4V GV-BX3400-5V 2.8 ~ 6 mm...
  • Page 408 Focus Manual (w/lock) Zoom Manual (w/lock) GV-BX1200-3V GV-BX1300-3V Operation GV-BX2400-3V DC drive GV-BX2400-4V Iris GV-BX3400-4V GV-BX3400-5V GV-BX5300 Manual (w/lock) Torque 0.049 N.m (Focus / Zoom screws) Operation Video Compression H.264, MJPEG Video Stream Dual streams from H. 264 or MJPEG GV-BX1200 Series 30 fps at 1280 x 1024 GV-BX1300 Series...
  • Page 409 Specifications: Box Camera (Part 2) Alarm Output 1 Digital Output (200mA 5V DC) Note: The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes). AAC is only supported by GV-System V8.5 or later. Video Resolution 1280 x 960, 640 x 480, 320 x 240 Main...
  • Page 410 2048 x 1536, 1600 x 1200, 1280 x 960, 640 x 480, 320 x 240 Main 1920 x 1080, 1280 x 720, Stream 16:9 640 x 360, 448 x 252 GV-BX3400 Series 1280 x 1024, 640 x 512, 320 x 256 640 x 480, 320 x 240 16:9 640 x 360, 448 x 252...
  • Page 411 Specifications: Box Camera (Part 2) Mechanical Temperature Detector Power 2-pin terminal block, PoE Ethernet RJ-45 1 In (Using the built-in microphone or externally connecting a microphone) Audio 1 Out (Stereo phone jack, 3.5 mm / 0.14 in) Auto Iris Micro SD / SDHC / SDXC memory card slot Connectors Local Storage (for Class 6 card or above)
  • Page 412 General Environment Temperature 0°C ~ 50°C / 32°F ~ 122°F Humidity 10% to 90% (no condensation) Power Source 12V DC / PoE Max. Power Consumption 9.5 W Dimensions (Without lens) (L X W X H) 75.5 x75 x 54 mm / 2.97 x 2.95 x 2.13 in Weight 300 g / 0.66 lb Regulatory...
  • Page 413 Specifications: Box Camera (Part 2) Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian / Language Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish...

  • Page 414: Specifications: Ultra Box Camera

    Specifications: Ultra Box Camera Camera Image Sensor 1/2.5’’ progressive scan CMOS GV-UBX1301 Series 1280 (H) x 1024 (V) Picture GV-UBX2301 Series 1920 (H) x 1080 (V) Elements GV-UBX3301 Series 2048 (H) x 1536 (V) Color 0.15 Lux at F/1.6 Minimum Illumination 0 Lux at F/1.6 IR ON...
  • Page 415 Specifications: Ultra Box Camera GV-UBX1301-2F Focal Length GV-UBX2301-2F 8 mm GV-UBX3301-2F Maximum Aperture F/1.6 Mount M12, Pitch 0.5 mm Image Format 1/3” Operation (Focus / Zoom / Iris) Fixed IR LED Quantity 4 IR LEDs IR Distance 10 m / 32.81 ft. (Max.) Operation Video Compression H.264, MJPEG...
  • Page 416 Video Resolution 1280 x 960, 640 x 480, 320 x 240 Main 16:9 1280 x 720, 640 x 360, 448 x 252 Stream 1280 x 1024, 640 x 512, 320 x 256 GV-UBX1301 Series 640 x 480, 320 x 240 16:9 640 x 360, 448 x 252 Stream 640 x 512, 320 x 256...
  • Page 417 Specifications: Ultra Box Camera Network Interface 10/100 Ethernet HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, Protocol NTP, UPnP, DynDNS, 3GPP/ISMA, RTSP, PSIA, SNMP, QoS (DSCP), ONVIF Mechanical Temperature Detector Power 2-pin terminal block, PoE Ethernet RJ-45 1 In (Using the built-in microphone) Connectors Audio 1 Out (Stereo phone jack, 3.5 mm / 0.14 in)
  • Page 418 Power over Ethernet IEEE 802.3af Class 3 Power over Ethernet / PoE Standard End-Span PoE Power Supply Type Per Port 48V DC, 350mA. Max. 15.4 watts PoE Power Output Web Interface Installation Management Web-based configuration Firmware upgrade through Web Browser or Maintenance Utility Camera live view, video recording, change...

  • Page 419: Specifications: Ir Arctic Box Camera

    Specifications: IR Arctic Box Camera Specifications: IR Arctic Box Camera Camera GV-BX120D-E 1/3" progressive scan CMOS Image GV-BX220D-E Sensor GV-BX320D-E 1/2.5” progressive scan CMOS GV-BX520D-E GV-BX120D-E 1280 (H) x 1024 (V) GV-BX220D-E 1920 (H) x 1080 (V) Picture Elements GV-BX320D-E 2048 (H) x 1536 (V) GV-BX520D-E 2560 (H) x 1920 (V)
  • Page 420 GV-BX120D-E 50 dB GV-BX220D-E S/N Ratio GV-BX320D-E 45 dB GV-BX520D-E Lens Megapixel Day/Night Yes (with removable IR-cut filter) Lens Type Varifocal GV-BX120D-E 2.8 ~ 12 mm GV-BX220D-E Focal 2.8 ~ 6 mm Length GV-BX320D-E GV-BX520D-E 4.5 ~ 10 mm GV-BX120D-E F/1.4 Maximum GV-BX220D-E...
  • Page 421 Specifications: IR Arctic Box Camera IR Quantity IR Distance 15 m / 50 ft. (Max.) Max. Torque 0.049 N.m (Focus/Zoom screws) Operation Video Compression H.264, MJPEG Video Stream Dual streams from H. 264 or MJPEG GV-BX120D-E 30 fps at 1280 x 1024 GV-BX220D-E 30 fps at 1920 x 1080 Frame Rate...
  • Page 422 Video Resolution 1280 x 960, 640 x 480, 320 x 240 Main 16:9 1280 x 720, 640 x 360, 448 x 252 Stream 1280 x 1024, 640 x 512, 320 x 256 GV-BX120D-E 640 x 480, 320 x 240 16:9 640 x 360, 448 x 252 Stream 640 x 512, 320 x 256...
  • Page 423 Specifications: IR Arctic Box Camera 2560 x 1920, 2048 x 1536, 4 : 3 1600 x 1200, 1280 x 960, 640 x 480, 320 x 240 Main Stream 1920 x 1080, 1280 x 720, 640 x 16 :9 360, 448 x 252 GV-BX520D-E 5 : 4 1280 x 1024, 640 x 512, 320 x 256...
  • Page 424 LED Indicator 1 LED: Status Note: The TV-Out function only works in 640 x 480 resolution. For TV-Out to work properly, you must set the video resolution to 1280 x 1024 or lower. If both streams are enabled, the Sub Stream must be set to 640 x 480.
  • Page 425 Specifications: IR Arctic Box Camera Web Interface Installation Management Web-based configuration Firmware upgrade through Web Browser or Maintenance Utility Camera live view, video recording, change video quality, bandwidth control, image Access from Web Browser snapshot, digital I/O control, audio, Picture in Picture, Picture and Picture, Privacy Mask, Tampering Alarm, Text Overlay Arabic / Bulgarian / Czech / Danish / Dutch /...
  • Page 426 Specifications: GV-PA481 PoE Standard IEEE 802.3at Power over Ethernet / PD PoE Power Output DC 48V, 1A (48W Max.) (10/100 Out) Max 100 m / 328 ft from GV-PA481 to IP Ethernet Cable Length device, CAT5 Power Input DC 48V, 1A Environment Temperature -0°C ~ 40°C / 32°F ~ 104°F Dimensions (L x W x H) 138 x 104 x 38 mm / 5.43 x 4.09 x 1.5 in...

  • Page 427: Specifications: Mini Fixed & Rugged Dome

    Specifications: Mini Fixed & Rugged Dome Specifications: Mini Fixed & Rugged Dome Camera GV-MFD120 GV-MFD130 1/3" progressive scan CMOS GV-MDR120 GV-MFD220 Image GV-MFD320 Sensor GV-MFD520 1/2.5’’ progressive scan CMOS GV-MDR220 GV-MDR320 GV-MDR520 GV-MFD120 GV-MFD130 1280 (H) x 1024 (V) GV-MDR120 GV-MFD220 1920 (H) x 1080 (V) Picture...
  • Page 428 GV-MFD120 Color 0.08 Lux at F/1.5 GV-MDR120 GV-MFD130 GV-MFD220 Minimum GV-MFD320 Illumination Color GV-MFD520 0.5 Lux at F/2.8 GV-MDR220 GV-MDR320 GV-MDR520 Automatic, Manual (1/5 ~ 1/8000 Shutter Speed sec) White Balance Automatic, Manual (2800K ~ 8500K) Gain Control Automatic GV-MFD120 50 dB GV-MDR120 GV-MFD130...
  • Page 429 Specifications: Mini Fixed & Rugged Dome Lens Megapixel Day/Night Yes (electronic) Iris Fixed GV-MFD120 4.05 mm GV-MDR120 GV-MFD130 GV-MFD220 Focal Length GV-MFD320 GV-MFD520 2.54 mm GV-MDR220 GV-MDR320 GV-MDR520 GV-MFD120 F/1.5 GV-MDR120 GV-MFD130 GV-MFD220 Maximum GV-MFD320 Aperture GV-MFD520 F/2.8 GV-MDR220 GV-MDR320 GV-MDR520 Mount M12, Pitch 0.5 mm...
  • Page 430 GV-MFD120 1/3’’ GV-MDR120 GV-MFD130 GV-MFD220 Image Format GV-MFD320 GV-MFD520 1/2.5’’ GV-MDR220 GV-MDR320 GV-MDR520 Operation (Focus / Zoom / Iris) Fixed Note: For GV-MFD, the day/night function is only supported by V1.07 or later. Operation Video Compression H.264, MJPEG Video Stream Dual streams from H.264 or MJPEG GV-MFD120 30 fps at 1280 x 1024...
  • Page 431 Specifications: Mini Fixed & Rugged Dome Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker-less 50/60 Hz, Image Image Setting Orientation, Shutter Speed, Backlight Compensation, D/N sensitivity, WDR, Defog GV-MFD120 GV-MFD130 G.711, AAC (16 kHz / 16 bit) GV-MFD220 GV-MFD320 Audio GV-MFD520 Compression GV-MDR120...
  • Page 432 1600 x 1200, 1280 x 960, 640 x 480, 320 x 240 Main 1920 x 1080, 1280 x 720, 640 x 360, 16:9 Stream 448 x 252 GV-MFD220 1280 x 1024, 640 x 512, 320 x 256 GV-MDR220 640 x 480, 320 x 240 16:9 640 x 360, 448 x 252 Stream...
  • Page 433 Specifications: Mini Fixed & Rugged Dome Mechanical -45° ~ +45° GV-MFD Tilt 0° ~ 90° Camera Angle -45° ~ +45° Adjustment GV-MDR Tilt 0° ~ 90° Rotate 0° ~ 360° Temperature Detector GV-MDR GV-MFD120 Power GV-MFD130 GV-MFD220 PoE, 2-pin terminal block GV-MFD320 Connectors GV-MFD520...
  • Page 434 GV-MFD120 4.5 W GV-MFD130 GV-MFD220 5.5 W GV-MFD320 Max. Power GV-MFD520 Consumption GV-MDR120 GV-MDR220 3.4 W GV-MDR320 GV-MDR520 3.6 W ø 106 x 55.6 mm Camera Body 4.2 x 2.2 in Cable Length 1 m / 3.28 ft Cable GV-MFD ø...
  • Page 435 Specifications: Mini Fixed & Rugged Dome GV-MFD120 275 g / 0.61 lb GV-MFD130 GV-MFD220 Weight 280 g / 0.62 lb GV-MFD320 GV-MFD520 GV-MDR 568 g / 1.3 lb Ingress GV-MDR IP67 Protection Vandal Resistance IK10 (GV-MDR only) GV-MFD CE, FCC, C-Tick, RoHS compliant Regulatory CE, FCC, C-Tick, EN50155, RoHS GV-MDR...
  • Page 436 Camera live view, video recording, change video quality, zoom in/out, Access from Web Browser bandwidth control, image snapshot, audio, Picture in Picture, Picture and Picture, Privacy Mask, Text Overlay Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Hebrew / Hungarian / Indonesian / Italian /Japanese / Language...

  • Page 437: Specifications: Bullet Camera (Part 1)

    Specifications: Bullet Camera (Part 1) Specifications: Bullet Camera (Part 1) This section provides specifications on GV-BL120D / 130D / 220D / 320D and GV-BL1200 / 1300 / 2400 / 3400. Camera GV-BL120D 1/3" progressive scan CMOS GV-BL1200 GV-BL130D GV-BL220D Image Sensor 1/2.5’’...
  • Page 438 0.15 Lux (1/30 sec), 0.08 Lux GV-BL120D (1/5 sec) GV-BL130D 1 Lux (1/30 sec), 0.5 Lux (1/5 GV-BL220D sec) GV-BL320D Color Minimum GV-BL1200 0.05 Lux at F/1.2 Illumination GV-BL1300 0.15 Lux at F/1.2 GV-BL2400 0.08 Lux at F/1.2 GV-BL3400 0 Lux at F/1.2 IR ON Shutter Speed Automatic, Manual (1/5 ~ 1/8000 sec)
  • Page 439 Specifications: Bullet Camera (Part 1) Focal Length 3 ~ 9 mm Maximum Aperture F/1.2 Mount ø 14 mm Image Format 1/2.7’’ Focus Manual (w/lock) Operation Zoom Manual (w/lock) Iris DC drive IR LED Quantity 16 IR LEDs IR Distance 15 m / 50 ft (Max.) Max.
  • Page 440 GV-BL120D GV-BL130D GV-BL220D G.711, AAC (16 kHz / 16 bit) GV-BL320D Audio GV-BL520D Compression GV-BL1200 GV-BL1300 G.711, AAC (24 kHz / 16 bit) GV-BL2400 GV-BL3400 Two-Way Audio Sensor Input 1 Input (Dry Contact) Alarm Output 1 Output (200mA 5V DC) Note: The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes).
  • Page 441 Specifications: Bullet Camera (Part 1) 1600 x 1200, 1280 x 960, 640 x 480, 320 x 240 Main 1920 x 1080, 1280 x 720, 640 x 360, Stream 16:9 448 x 252 GV-BL220D GV-BL2400 1280 x 1024, 640 x 512, 320 x 256 640 x 480, 320 x 240 16:9 640 x 360, 448 x 252...
  • Page 442 Mechanical 0° ~ 360° Camera Angle Tilt 90° ~ 180° Adjustment Rotate 0° ~ 360° Temperature Detector Power 2-pin terminal block, PoE Ethernet RJ-45 1 In (RCA female for microphone) Audio 1 Out (RCA female for speaker) Digital I/O I/O Wire Connectors DC Drive Auto Iris...
  • Page 443 Specifications: Bullet Camera (Part 1) 277.5 x 87.75 x 148.95 mm Camera Body 10.9 x 3.45 x 5.86 in Cable Length 1 m / 3.28 ft Dimensions Max. Cable ø 7.1 mm / 0.28 in Diameter Max. Connector ø 25.2 mm / 0.99 in Diameter Weight 1.35 kg / 2.98 lb...
  • Page 444 Camera live view, video recording, change video quality, bandwidth control, image snapshot, digital I/O control, audio, Picture Access from Web Browser in Picture, Picture and Picture, Privacy Mask, Visual Automation, Tampering Alarm, Text Overlay Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian /...

  • Page 445: Specifications: Bullet Camera (Part 2)

    Specifications: Bullet Camera (Part 2) This section provides specifications on GV-BL1210 / 2410 / 3410 / 5310. Camera GV-BL1210 1/3" progressive scan CMOS GV-BL2410 Image Sensor 1/3.2" progressive scan CMOS GV-BL3410 GV-BL5310 1/2.5’’ progressive scan CMOS GV-BL1210 1280 (H) x 1024 (V) GV-BL2410 1920 (H) x 1080 (V) Picture Elements...
  • Page 446 GV-BL2410 WDR Pro Yes (with WDR sensor) GV-BL3410 Lens Megapixel Day / Night Yes (with removable IR-cut filter) Lens Type Zoom lens GV-BL1210 GV-BL2410 3 ~ 9 mm Focal GV-BL3410 Length GV-BL5310 4.5 ~ 9 mm Maximum Aperture F/1.2 Mount ø...
  • Page 447 Specifications: Bullet Camera (Part 2) Operation Video Compression H.264, MJPEG Video Stream Dual streams from H.264 or MJPEG GV-BL1210 30 fps at 1280 x 1024 GV-BL2410 30 fps at 1920 x 1080 Frame Rate GV-BL3410 20 fps at 2048 x 1536 GV-BL5310 10 fps at 2560 x 1920 Brightness, Contrast, Saturation,...
  • Page 448 640 x 512, 320 x 256 1600 x 1200, 1280 x 960, 640 x 480, 320 x 240 Main 1920 x 1080, 1280 x 720, 640 x 360, Stream 16:9 448 x 252 1280 x 1024, 640 x 512, 320 x 256 GV-BL2410 640 x 480, 320 x 240 16:9...
  • Page 449 Specifications: Bullet Camera (Part 2) Network Interface 10/100 Ethernet HTTP, HTTPS, TCP, UDP, SMTP, FTP, Protocol DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, RTSP, PSIA, SNMP, QoS (DSCP), ONVIF Mechanical 0° ~ 360° Camera 90° ~ 180° Angle Tilt Adjustment 0° ~ 360° Rotate Temperature Detector 2-pin terminal block, PoE...
  • Page 450 GV-BL1210 11.52 W Max. Power GV-BL2410 Consumption GV-BL3410 12.48 W GV-BL5310 289.02 x 87.75 x 148.95 mm Camera Body 11.4 x 3.45 x 5.86 in Cable Length 1 m / 3.28 ft Dimensions Max. Cable ø 7.1 mm / 0.28 in Diameter Max.
  • Page 451 Specifications: Bullet Camera (Part 2) Alarm, Text Overlay Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian Language / Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese /...

  • Page 452: Specifications: Ultra Bullet Camera

    Specifications: Ultra Bullet Camera Camera GV-UBL1211 1/3" progressive scan CMOS 1/2.5’’ progressive scan GV-UBL1301 Series CMOS Image GV-UBL2411 Sensor GV-UBL2401 Series 1/3.2’’ progressive scan CMOS GV-UBL3411 GV-UBL3401 Series GV-UBL1211 1280 (H) x 1024 (V) GV-UBL1301 Series GV-UBL2411 Picture 1920 (H) x 1080 (V) Elements GV-UBL2401 Series GV-UBL3411...
  • Page 453 Specifications: Ultra Bullet Camera 50 dB GV-UBL1211 45 dB GV-UBL1301 Series GV-UBL2411 S/N Ratio GV-UBL2401 Series 47 dB GV-UBL3411 GV-UBL3401 Series GV-UBL2411 GV-UBL2401 Series WDR Pro Yes (with WDR sensor) GV-UBL3411 GV-UBL3401 Series Lens Megapixel Day / Night Yes (with removable IR-cut filter) GV-UBL1211 Zoom Lens GV-UBL2411...
  • Page 454 GV-UBL1301-3F Focal Length 12 mm GV-UBL2401-3F GV-UBL3401-3F GV-UBL1211 F/1.2 GV-UBL2411 GV-UBL3411 Maximum Aperture GV-UBL1301 Series F/1.6 GV-UBL2401 Series GV-UBL3401 Series GV-UBL1211 ø 14 mm GV-UBL2411 GV-UBL3411 Mount GV-UBL1301 Series GV-UBL2401 Series GV-UBL3401 Series GV-UBL1211 1/2.7’’ GV-UBL2411 GV-UBL3411 Image Format GV-UBL1301 Series 1/3’’...
  • Page 455 Specifications: Ultra Bullet Camera Operation Video Compression H.264, MJPEG Video Stream Dual streams from H.264 or MJPEG GV-UBL1211 30 fps at 1280 x 1024 GV-UBL1301 Series GV-UBL2411 Frame Rate 30 fps at 1920 x 1080 GV-UBL2401 Series GV-UBL3411 20 fps at 2048 x 1536 GV-UBL3401 Series Brightness, Contrast, Sharpness, Gamma, White Balance, Flicker-less,...
  • Page 456 1600 x 1200, 1280 x 960, 640 x 480, 320 x 240 Main 1920 x 1080, 1280 x 720, 640 x 360, Stream 16:9 448 x 252 GV-UBL2411 1280 x 1024, 640 x 512, 320 x 256 GV-UBL2401 Series 640 x 480, 320 x 240 Stream 16:9 640 x 360, 448 x 252 Main...
  • Page 457 Specifications: Ultra Bullet Camera Micro SD / SDHC / SDXC memory Connector Local Storage card slot (for Class 6 card or above) General GV-UBL1211 -10°C ~ 50°C / -14°F ~ 122°F GV-UBL2411 Environment GV-UBL3411 Temperature GV-UBL1301 Series -20°C ~ 50°C / -4°F ~ 122°F GV-UBL2401 Series GV-UBL3401 Series Humidity...
  • Page 458 GV-UBL1211 850 g / 1.9 lb lb GV-UBL2411 GV-UBL3411 Weight GV-UBL1301 Series 730 g / 1.6 lb GV-UBL2401 Series GV-UBL3401 Series Ingress Protection IP67 Regulatory CE, FCC, C-Tick, RoHS compliant Power over Ethernet PoE Standard IEEE 802.3af Power over Ethernet / PD PoE Power Supply Type End-Span PoE Power Output...
  • Page 459 Specifications: Ultra Bullet Camera Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian / Persian Language / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish...

  • Page 460: Specifications: Ptz Camera

    Specifications: PTZ Camera Camera Model Name GV-PTZ010D-N GV-PTZ010D-P Image Sensor 1/4" CCD image sensor Picture Elements 704 (H) x 480 (V) 704 (H) x 576 (V) Color 2.5 Lux at F/1.8 Minimum Illumination 0.07 Lux at F/1.8 Automatic, Automatic, Shutter Speed Manual (1/60 ~ Manual (1/50 ~ 1/120,000 sec)
  • Page 461 Specifications: PTZ Camera Operation Model Name GV-PTZ010D-N GV-PTZ010D-P Video Format NTSC Video Compression H.264, MPEG4, MJPEG Dual Streams from two of H.264, Video Stream MPEG4 or MJPEG 704 x 480 704 x 576 Main Stream 704 x 240 704 x 288 Video 352 x 240 352 x 288...
  • Page 462 Mechanical -175° ~ 175° Camera Angle Adjustment Tilt -45° ~ 90° Temperature Detector Power 2-pin terminal block, PoE Ethernet RJ-45 1 In (Using a built-in or an externally connected microphone) Audio 1 Out (Stereo phone jack, 3.5 mm / Connectors 0.14 in) 3-pin terminal block Digital I/O...
  • Page 463 Specifications: PTZ Camera Power over Ethernet PoE Standard IEEE 802.3af Power over Ethernet / PD PoE Power Supply Type End-Span Per Port 48V DC, 350mA. Max. 15.4 PoE Power Output watts Web Interface Installation Management Web-based configuration Firmware upgrade through Web Maintenance Browser or Utility Camera live view, video recording,...
  • Page 464 Application GV-NVR, GV-System, GV-Backup Network Storage Center, GV-Recording Server GV-Eye for Android smartphone, tablet, Smart Device Access iPhone, and iPod Touch; GV-Eye HD for iPad Live Viewing IE, mobile phone GV-Center V2, GV-VSM, GV-Control CMS Server support Center Note: GV-Backup Center and GV-Recording Server are only supported in V1.08 or later.

  • Page 465: Specifications: Pt Camera

    Specifications: PT Camera Specifications: PT Camera Camera Image Sensor 1/3" progressive scan CMOS Picture Elements 1280 (H) x 1024 (V) 1.5 Lux (1/60 sec) Color 0.2 Lux (1/5 sec) (F1.5, AGC-On, slow Minimum shutter-Off) Illumination 0 Lux (1/60 sec) (F/1.5, AGC-On, slow shutter-Off) IR ON Automatic (Balanced, Speed Priority,...
  • Page 466 Iris Fixed IR LED Quantity 14 IR LEDs IR Distance 15 m / 50 ft (Max.) Operation Video Compression H.264, MPEG4, MJPEG Dual Streams from two of H.264, Video Stream MPEG4 or MJPEG 1280 x 960, 640 x 480, 320x 240 Main Stream 1280 x 1024, 640 x 512, 320 x 256...
  • Page 467 Specifications: PT Camera Network Interface 10/100 Ethernet HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, Protocol 3GPP/ISMA, RTSP, PSIA, SNMP, QoS (DSCP) Note: HTTPS, SNMP and QoS are only suppported in V1.08 or later. Mechanical -175° ~ 175° Camera Angle Adjustment Tilt...
  • Page 468 General Environment Temperature -10°C ~ 50°C / 14°F ~ 122°F Humidity 10% to 90% (no condensation) Power Source 12V DC / 24V AC / PoE Max. Power Consumption 12 W 167.75 x 166.78 x 135.2 mm / With mounting base and cover 6.6 x 6.57 x 5.32 in Dimensions Without...
  • Page 469 Specifications: PT Camera Bulgarian / Czech / Danish / Dutch / English / French / German / Greek / Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Language Norwegian / Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Thai / Traditional Chinese / Turkish...

  • Page 470: Specifications: Vandal Proof Ip Dome

    Specifications: Vandal Proof IP Dome Camera GV-VD120D GV-VD121D 1/3" progressive scan CMOS GV-VD122D GV-VD123D GV-VD220D Image GV-VD221D Sensor GV-VD222D GV-VD223D 1/2.5’’ progressive scan CMOS GV-VD320D GV-VD321D GV-VD322D GV-VD323D GV-VD120D GV-VD121D 1280 (H) x 1024 (V) GV-VD122D GV-VD123D Picture Elements GV-VD220D GV-VD221D 1920 (H) x 1080 (V) GV-VD222D...
  • Page 471 Specifications: Vandal Proof IP Dome GV-VD320D GV-VD321D Picture 2048 (H) x 1536 (V) Elements GV-VD322D GV-VD323D GV-VD120D 0.15 Lux (1/30 sec), Color 0.08 Lux (1/5 sec) GV-VD121D GV-VD122D 0 Lux IR ON GV-VD123D GV-VD220D 1 Lux (1/30 sec), GV-VD221D Minimum Color 0.5 Lux (1/5 sec) Illumination...
  • Page 472 Lens Megapixel Day/Night Yes (with removable IR-cut filter) Lens Type Varifocal Focal Length 3 ~ 9 mm Maximum Aperture F/1.3 Mount ø 14 mm Focus Manual (w/lock) Operation Zoom Manual (w/lock) Iris DC drive IR LED Quantity 10 IR LEDs IR Distance 15 m / 50 ft (Max.) Max.
  • Page 473 Specifications: Vandal Proof IP Dome GV-VD220D GV-VD221D 30 fps at 1920 x 1080 GV-VD222D GV-VD223D Frame Rate GV-VD320D GV-VD321D 20 fps at 2048 x 1536 GV-VD322D GV-VD323D Brightness, Contrast, Saturation, Sharpness, Image Setting Gamma, White Balance, Flicker-less, Image Orientation, Backlight Compensation, D/N Sensitivity, Shutter Speed, WDR, Defog Audio Compression G.711, AAC (16 kHz / 16 bit)
  • Page 474 Video Resolution 1280 x 960, 640 x 480, 320 x 240 Main Stream 16:9 1280 x 720, 640 x 360, 448 x 252 GV-VD120D 1280 x 1024, 640 x 512, 320 x 256 GV-VD121D GV-VD122D 640 x 480, 320 x 240 GV-VD123D Sub Stream 16:9 640 x 360, 448 x 252...
  • Page 475 Specifications: Vandal Proof IP Dome Mechanical 0° ~ 350° Camera Angle Tilt 10° ~ 90° Adjustment Rotate 0° ~ 340° Temperature Detector Power 2-pin terminal block, PoE Ethernet RJ-45 1 In (RCA female for microphone) Audio 1 Out (RCA female for speaker) Connectors Digital I/O I/O Wires...
  • Page 476 Camera Body ø 165 x 125 mm / 6.49 x 4.92 in Cable Length 1 m / 3.28 ft Dimensions Cable Diameter ø 16.7 mm / 0.66 in Max. Connector ø 16.7 mm / 0.66 in Diameter Weight 1.7 kg / 3.75 lb Ingress Protection IP66 GV-VD120D...
  • Page 477 Specifications: Vandal Proof IP Dome Web Interface Installation Management Web-based configuration Firmware upgrade through Web Browser or Maintenance Utility Camera live view, video recording, change video quality, bandwidth control, image snapshot, digital I/O control, audio, Picture Access from Web Browser in Picture, Picture and Picture, Privacy Mask, Visual Automation, Tampering Alarm, Text Overlay...

  • Page 478: Specifications: Fixed Ip Dome

    Specifications: Fixed IP Dome Camera GV-FD120D 1/3" progressive scan CMOS Image GV-FD220D Sensor 1/2.5’’ progressive scan CMOS GV-FD320D GV-FD120D 1280 (H) x 1024 (V) Picture GV-FD220D 1920 (H) x 1080 (V) Elements GV-FD320D 2048 (H) x 1536 (V) 0.15 Lux (1/30 sec), 0.08 Lux (1/5 Color sec) GV-FD120D...
  • Page 479 Specifications: Fixed IP Dome Lens Megapixel Day/Night Yes (with removable IR-cut filter) Lens Type Varifocal Focal Length 3 ~ 9 mm Maximum Aperture F/1.3 ± 5% Mount ø 14 mm Image Format 1/3’’ Focus Manual (w/lock) Zoom Manual (w/lock) Operation Iris DC drive IR LED Quantity...
  • Page 480 Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Image Setting Flicker-less, Image Orientation, Shutter Speed, Backlight Compensation, D/N Sensitivity, WDR, Defog G.711, AAC (16 k / 16 bit) Audio Compression Two-Way Audio 1 Input (Dry Contact) Sensor Input 1 Output (200mA 5V DC) Alarm Output Note: 1.
  • Page 481 Specifications: Fixed IP Dome 640 x 480, 320 x 240 16:9 640 x 360, 448 x 252 Stream 640 x 512, 320 x 256 2048 x 1536, 1600 x 1200, 1280 x 960, 640 x 480, 320 x 240 Main 1920 x 1080, 1280 x 720, 640 x 360, 16:9 Stream...
  • Page 482 Power 2-pin terminal block, PoE Ethernet Ethernet (10/100 Base-T), RJ-45 1 In (microphone phone jack, 3.5 mm / 0.14 Audio 1 Out (Stereo pohone jack, 3.5 mm / 0.14 in) Connectors Digital I/O 3-pin terminal block, pitch 2.5 mm / 0.1 in Auto Iris DC Drive Micro SD / SDHC / SDXC memory card slot...
  • Page 483 Specifications: Fixed IP Dome Power over Ethernet PoE Standard IEEE 802.3af Power over Ethernet / PD PoE Power Supply Type End-Span PoE Power Output Per Port 48V DC, 350mA. Max. 15.4 watts Web Interface Installation Management Web-based configuration Firmware upgrade through Web Browser Maintenance or Utility Camera live view, video recording, change...
  • Page 484 Application GV-NVR, GV-System, GV-Backup Center, Network Storage GV-Recording Server GV-Eye for Android smartphone, tablet, Smart Device Access iPhone, and iPod Touch; GV-Eye HD for iPad Live Viewing IE, mobile phone GV-Control Center, GV-Center V2, CMS Server support GV-VSM Note: For the GV-Backup Center and GV-Recording Server supported firmware versions, please see Appendix D.

  • Page 485: Specifications: Cube Camera

    Specifications: Cube Camera Specifications: Cube Camera Camera Image Sensor 1/2.5’’ progressive scan CMOS GV-CB120 1280 (H) x 1024 (V) GV-CBW120 Picture Elements GV-CB220 1920 (H) x 1080 (V) GV-CBW220 Minimum Color 1 Lux (1/30 sec), 0.5 Lux (1/5 sec) Illumination Automatic, Manual (1/5 ~ 1/8000 sec) Shutter Speed White Balance...
  • Page 486 Image Format 1/3’’ Operation Fixed (Focus / Zoom / Iris) Operation H.264, MJPEG Video Compression Dual streams from H.264 or MJPEG Video Stream GV-CB120 30 fps at 1280 x 1024 GV-CBW120 Frame Rate GV-CB220 30 fps at 1920 x 1080 GV-CBW220 Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance,...
  • Page 487 Specifications: Cube Camera Video Resolution 1280 x 960, 640 x 480, 320 x 240 Main Stream 16:9 1280 x 720, 640 x 360, 448 x 252 1280 x 1024, 640 x 512, 320 x 256 GV-CB120 GV-CBW120 640 x 480, 320 x 240 Sub Stream 16:9 640 x 360, 448 x 252...
  • Page 488 Mechanical Temperature Detector Power DC Jack Ethernet Ethernet (10/100 Base-T), RJ-45 Connectors Audio Built-in speaker & microphone Micro SD / SDHC / SDXC memory card slot Local Storage (for Class 6 card or above) LED Indicator 2 LEDs: Status, LAN General GV-CB120 0°C ~ 50°C / 32°F ~ 122°F...
  • Page 489 Specifications: Cube Camera IMPORTANT: Be sure to use the supplied power adapter to power up the camera. To use your own power cable, make sure you look up the power source value indicated at the camera’s back panel. Web Interface Installation Management Web-based configuration Firmware upgrade through Web Browser or...
  • Page 490 Note: GV-Backup Center, GV-Video Gateway and GV-Recording Server are only supported for V1.03 or later. All specifications are subject to change without prior notice.

  • Page 491: Specifications: Advanced Cube Camera

    Specifications: Advanced Cube Camera Specifications: Advanced Cube Camera Camera Image Sensor 1/2.5’’ progressive scan CMOS GV-CA120 1280 (H) x 1024 (V) GV-CAW120 Picture Elements GV-CA220 1920 (H) x 1080 (V) GV-CAW220 Color 1 Lux at F/2.4 Minimum 0.5 Lux at F/2.4 Illumination LED on 0.1 Lux at F/2.4...
  • Page 492 Operation Fixed (Focus / Zoom / Iris) Operation H.264, MJPEG Video Compression Dual streams from H.264 or MJPEG Video Stream GV-CA120 30 fps at 1280 x 1024 GV-CAW120 Frame Rate GV-CA220 30 fps at 1920 x 1080 GV-CAW220 Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Image Setting Flicker-less, Image Orientation, Shutter...
  • Page 493 Specifications: Advanced Cube Camera Video Resolution 1280 x 960, 640 x 480, 320 x 240 Main Stream 16:9 1280 x 720, 640 x 360, 448 x 252 1280 x 1024, 640 x 512, 320 x 256 GV-CA120 GV-CAW120 640 x 480, 320 x 240 Sub Stream 16:9 640 x 360, 448 x 252...
  • Page 494 Mechanical Temperature Detector Power DC Jack / PoE (only for CA120/CA220) Ethernet RJ-45 Connectors Audio Built-in speaker & microphone Micro SD / SDHC / SDXC memory card slot Local Storage (for Class 6 card or above) LED Indicator 4 LEDs: Status x 3, LAN / Wi-Fi PIR Sensor Built-in White Illumination LED...
  • Page 495 Specifications: Advanced Cube Camera Power over Ethernet IEEE 802.3af Class 3 Power over Ethernet PoE Standard / PD PoE Power Supply Type End-Span PoE Power Output Per Port 48V DC, 350mA. Max. 15.4 watts Web Interface Installation Management Web-based configuration Firmware upgrade through Web Browser or Maintenance Utility...
  • Page 496 Application GV-NVR, GV-System, GV-Backup Center, Network Storage GV-Recording Server GV-Eye for Android smartphone, tablet, Smart Device Access iPhone, and iPod Touch; GV-Eye HD for iPad Live Viewing IE, mobile phone GV-Control Center, GV-Center V2, CMS Server Support GV-VSM All specifications are subject to change without prior notice.

  • Page 497: Appendix

    Appendix Appendix A. Settings for Internet Explorer 8 If you use Internet Explorer 8, it is required to complete the following setting. Set the Security to Medium-high (default). Enable Allow previously unused ActiveX controls to run without prompt. Disable Only allow approved domains to use ActiveX without prompt.

  • Page 498: Supported Lenses For Box Camera

    B. Supported Lenses for Box Camera Provider Model No. RV0409D.IR Fujian Forecam Optics RV0515D.IR RV0820D.IR EVD03618F-IR EVD04218F-IR EVD06018F-IR EVETAR EVD08018F-IR EVD12018F-IR EVD16018F-IR Pentax TS3VP213ED-M...

  • Page 499: Resolution And Frame Rate

    Appendix C. Resolution and Frame Rate Note that the frame rate and the performance may vary depending on the number of connections and data bitrates (different scenes). Max. Frame GV-IP Camera Stream Ratio Resolution Rate GV-BX120D 1280 x 960 GV-BX130D Series 640 x 480 GV-BX1200 Series 320 x 240...
  • Page 500 Max. Frame GV-IP Camera Stream Ratio Resolution Rate 1280 x 720 Main 16:9 640 x 360 GV-BX140DW 30 fps 448 x 252 640 x 360 16:9 448 x 252 GV-BX220D Series 1600 x 1200 GV-BX2400 Series 1280 x 960 GV-BX220D-E 640 x 480 GV-UBX2301 Series 320 x 240...
  • Page 501 Appendix Max. Frame GV-IP Camera Stream Ratio Resolution Rate 2048 x 1536 20 fps 1600 x 1200 GV-BX320D Series 1280 x 960 GV-BX3400 Series 640 x 480 GV-BX320D-E 320 x 240 GV-UBX3301 Series 1920 x 1080 GV-MFD320 Main 1280 x 720 GV-MDR320 16:9 640 x 360...
  • Page 502 Max. Frame GV-IP Camera Stream Ratio Resolution Rate 2560 x 1920 10 fps 2048 x 1536 20 fps 1600 x 1200 1280 x 960 640 x 480 320 x 240 Main 1920 x 1080 GV-BX520D-0 1280 x 720 16:9 GV-BX5300 640 x 360 GV-BX520D-E 448 x 252...
  • Page 503 Appendix Max. Frame GV-IP Camera Stream Ratio Resolution Rate 704 x 480 NTSC 30 fps 704 x 240 352 x 240 Main 704 x 576 704 x 288 25 fps 352 x 288 GV-PTZ010D 704 x 480 NTSC 704 x 240 30 fps 352 x 240 704 x 576...

  • Page 504: Support Lists

    D. Support Lists • Support List for GV-Backup Center, GV-Video Gateway and GV- Recording Server GV-IP Camera Model Supported Version GV-BX120D V1.03 or later GV-BX220D Series GV-BX320D Series GV-BX130D Series V1.04 or later GV-BX520D-0 V1.05 or later Box Camera GV-BX1200 Series GV-BX1300 Series V1.15 or later GV-BX2400 Series...
  • Page 505 Appendix GV-IP Camera Model Supported Version GV-BL120D V1.03 or later GV-BL220D Bullet Camera GV-BL320D GV-BL130D V1.04 or later GV-PTZ010D PT and PTZ Camera V1.08 or later GV-PT110D GV-VD120D Series GV-VD220D Series Vandal Proof IP Dome V1.03 or later GV-VD320D Series GV-FD120D GV-FD220D Fixed IP Dome...
  • Page 506 • Support List for Transmit Audio GV-IP Camera Model Supported Version GV-BX120D GV-BX220D Series V1.05 or later GV-BX320D Series GV-BX130D Series V1.04 or later GV-BX520D-0 V1.05 or later Box Camera GV-BX1200 Series GV-BX1300 Series V1.15 or later GV-BX2400 Series GV-BX3400 Series GV-BX5300 GV-BX120D-E GV-BX220D-E...
  • Page 507 Appendix GV-IP Camera Model Supported Version GV-BL120D GV-BL220D V1.05 or later Bullet Camera GV-BL320D GV-BL130D V1.04 or later PTZ Camera GV-PTZ010D V1.08 or later PT Camera GV-PT110D V1.08 or later GV-VD120D Series Vandal Proof IP Dome GV-VD220D Series V1.05 or later GV-VD320D Series GV-FD120D GV-FD220D...
  • Page 508 • Support List for System Log GV-IP Camera Model Supported Version GV-BX120D GV-BX220D Series GV-BX320D Series V1.11 or later GV-BX130D Series GV-BX520D-0 Box Camera GV-BX1200 Series GV-BX1300 Series GV-BX2400 Series V1.15 or later GV-BX3400 Series GV-BX5300 GV-BX120D-E GV-BX220D-E V1.11 or later IR Arctic Box Camera GV-BX320D-E GV-BX520D-E...
  • Page 509 Appendix GV-IP Camera Model Supported Version GV-BL120D GV-BL130D Bullet Camera V1.11 or later GV-BL220D GV-BL320D GV-PTZ010D PT and PTZ Camera V1.08 or later GV-PT110D GV-VD120D Series Vandal Proof IP Dome GV-VD220D Series V1.11 or later GV-VD320D Series GV-FD120D GV-FD220D V1.11 or later Fixed IP Dome GV-FD320D GV-CB120...

  • Page 510: Rtsp Protocol Command

    E. RTSP Protocol Command The GV-IPCAM H.264 can support RTSP protocol for both audio and video streaming. If you use the QuickTime player, enter: rtsp://<IP of the GV-IPCAM H.264:8554/<CH No.>.sdp For example, rtsp://192.168.3.111:8554/CH001.sdp If you use the VLC, and if authentication is required, enter: rtsp://username:password@<IP of the GV-IPCAM H.264:8554/<CH...

  • Page 511: The Cgi Command

    Appendix F. The CGI Command Please note the supported version of the CGI command in different models: GV-IP Camera Supported Version GV-PT110D V1.07 or later GV-PTZ010D GV-BX120D V1.00 or later GV-BX220D-2 / 223D-3 GV-BX320D-0 / 320D-1 GV-BL120D / 220D / 320D GV-VD120D / 121D / 122D / 123D V1.02 or later GV-VD220D / 221D / 222D / 223D...
  • Page 512 GV-CA120 / 220 GV-CAW120 / 220 You can use the CGI command to obtain a snapshot of the live view or access the User Account Web interface. For a GV-IPCAM H.264 with the following details: IP address: 192.168.2.11 Username: admin...

  • Page 513: Dual Stream Support List

    Appendix G. Dual Stream Support List The table lists the firmware versions of GV-IP Cameras that support dual stream and the default resolutions after the camera is added to GV-System. Resolution Supported GV-IP Camera Firmware Main Stream Sub Stream Version (H.264) (MJPEG) GV-BX120D...
  • Page 514 Resolution Supported Firmware GV-IP Camera Main Stream Sub Stream Version (H.264) (MJPEG) GV-BX130D Series V1.04 or later GV-MFD130 1280 x 1024 320 x 256 GV-BL130D GV-BX1300 Series V1.15 or later GV-BX140DW V1.10 or later 1280 x 720 640 x 360 GV-BX220D Series V1.00 or later GV-BX2400 Series...
  • Page 515 Appendix Resolution Supported Firmware GV-IP Camera Main Stream Sub Stream Version (H.264) (MJPEG) GV-BX320D Series V1.00 or later GV-BX3400 Series V1.15 or later GV-MFD320 V1.05 or later GV-BX320D-E V1.07 or later GV-MDR320 2048 x 1536 320 x 240 GV-BL320D GV-VD320D V1.02 or later GV-VD321D GV-VD322D...

  • Page 516: Power Supply Support List

    H. Power Supply Support List The supported power type is indicated with a tick ( ) and the unsupported power type with a cross ( ). GV-IP Camera DC Power AC Power Box Camera Ultra Box Camera IR Arctic Box Camera Mini Fixed Dome Mini Fixed Rugged Dome Bullet Camera...

  • Page 517: Supported Firmware For Flash Memory

    I. Supported Firmware for Flash Memory The 128 MB flash memory is supported in V1.09 or later in all models of GV-IPCam H.264 Series except GV-PTZ010D, GV-PT110D, To look up if the camera contains a 128 MB type flash memory, access the...

Table of Contents
