I/O Control - GeoVision GV-IPCAM User Manual

15.2.12 I/O Control

Note this function is only available for Box Camera, Bullet Camera, Ultra
Bullet Camera, Vandal Proof IP Dome and Fixed IP Dome.
The I/O Control window provides a real-time graphic display of camera
status, I/O status, and alarm events. Additionally, you can remotely force
output to be triggered.
• To display the I/O control window, click the I/O Control button (No. 10,
Figure 15-3) and select I/O Control.
• The Alarm List is displayed in three levels. The first level indicates date,
the second indicates time, and the third indicates alarm ID. Clicking the
Reset button will clear the list.
• To trigger an output device, highlight an output and then click the
Output button.

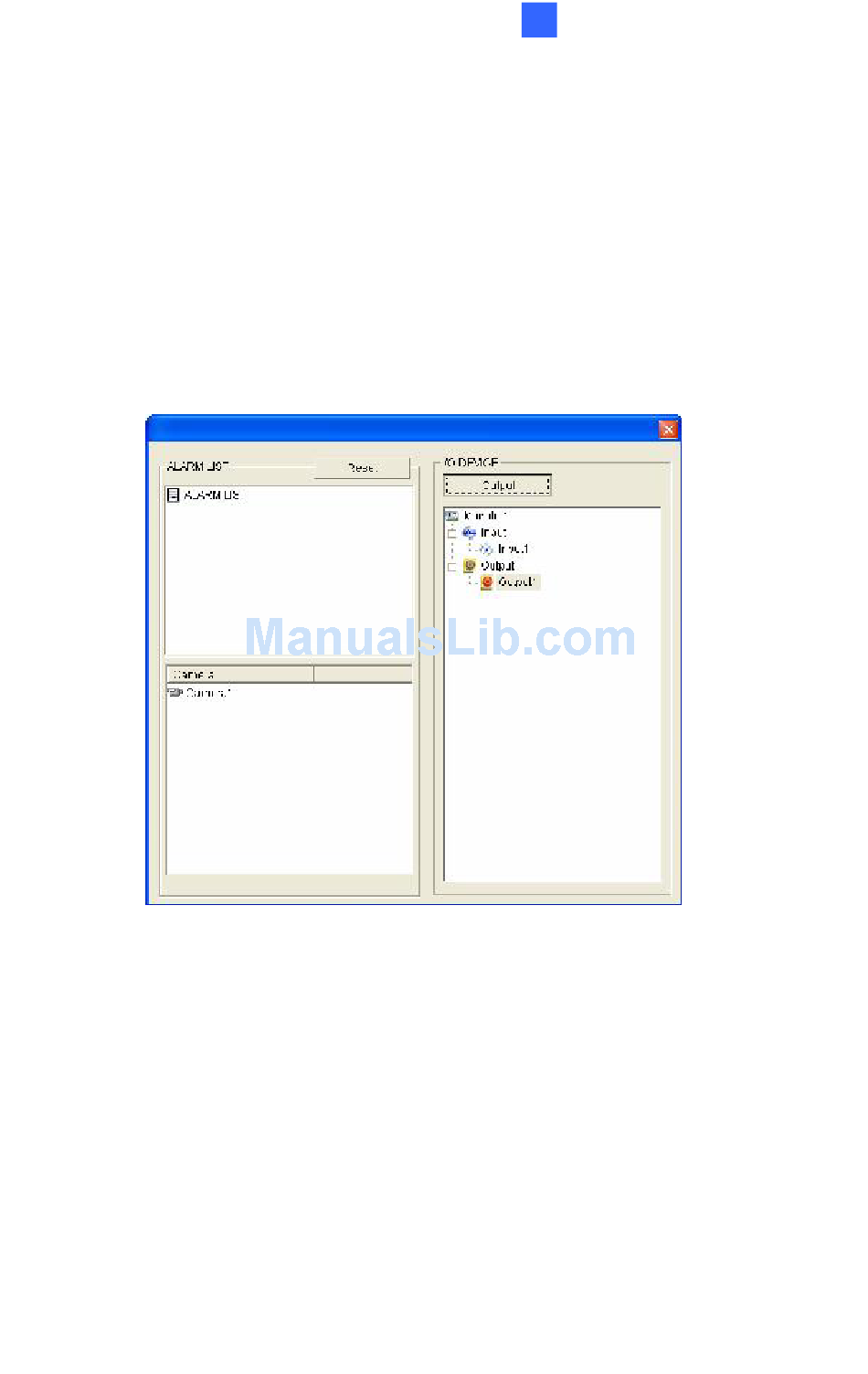

Figure 15-16
15
Accessing the Camera
227
