2.6.2 Connecting to GV-Relay V2 (Optional)

The Box Camera can only drive a maximum load of 200mA 5V DC.
Connect the camera to a GV-Relay V2 module (optional product) to
expand the maximum voltage load to 10A 250V AC, 10A 125V AC or 5A
100V DC.

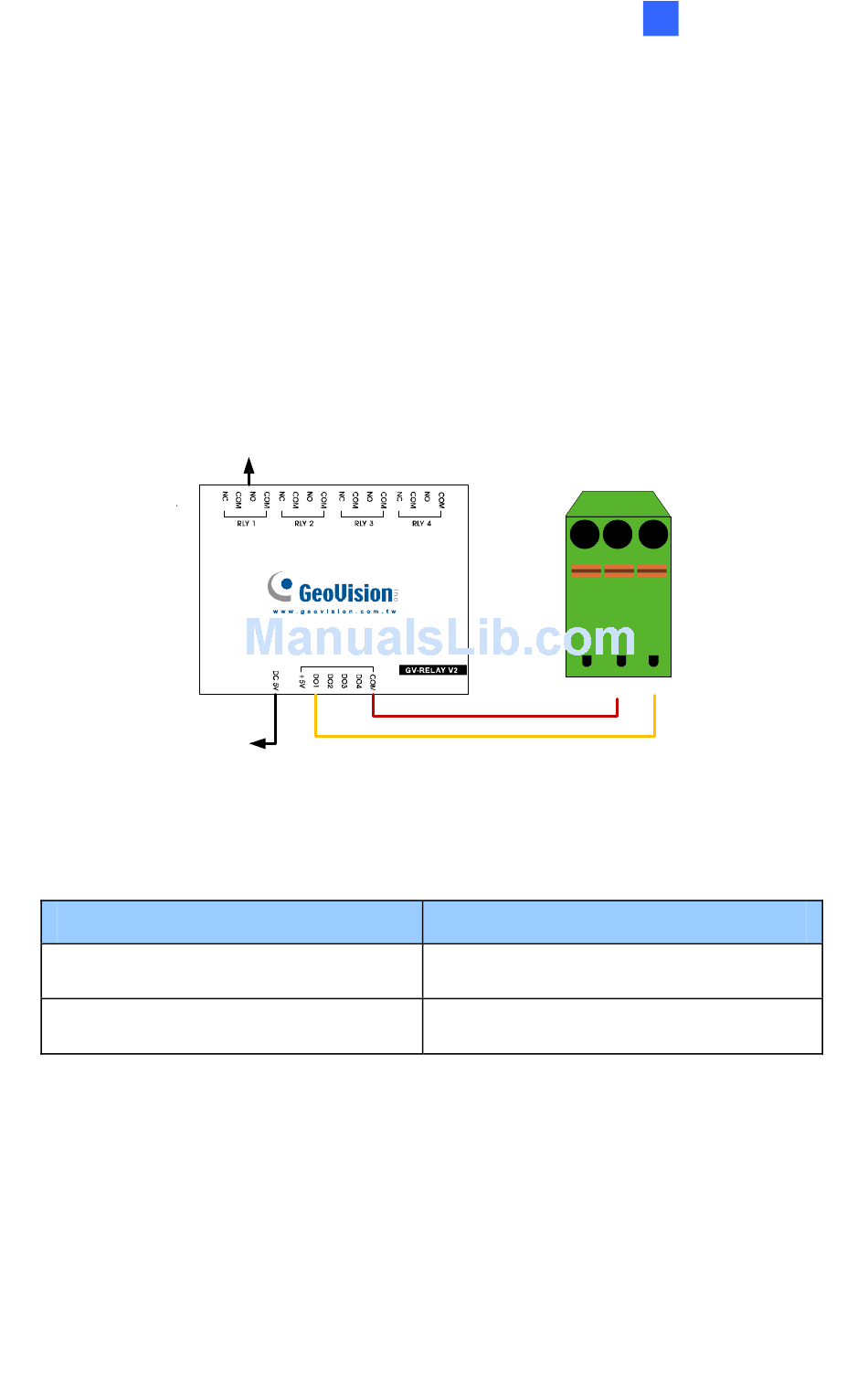

To connect the Box Camera to GV-Relay V2, refer to the figure and table
below.
Connect to Power
GV-Relay V2
COM
DO1
Output Device
Figure 2-7
1
I/O Terminal Block
Pin 2 (GND)
Pin 3 (Digital Output)
2 Box Camera
I/O
2 3
