Overview - GeoVision GV-IPCAM User Manual

12.3 Overview

1
No. Name
1 Microphone
2 Speaker
3 LAN
4 Status LED
5 LAN LED
6 Stand screw
7 Default Button
8 Power port
9 Memory Card Slot
Wireless LAN
10.
Receiver
172
3 4
2

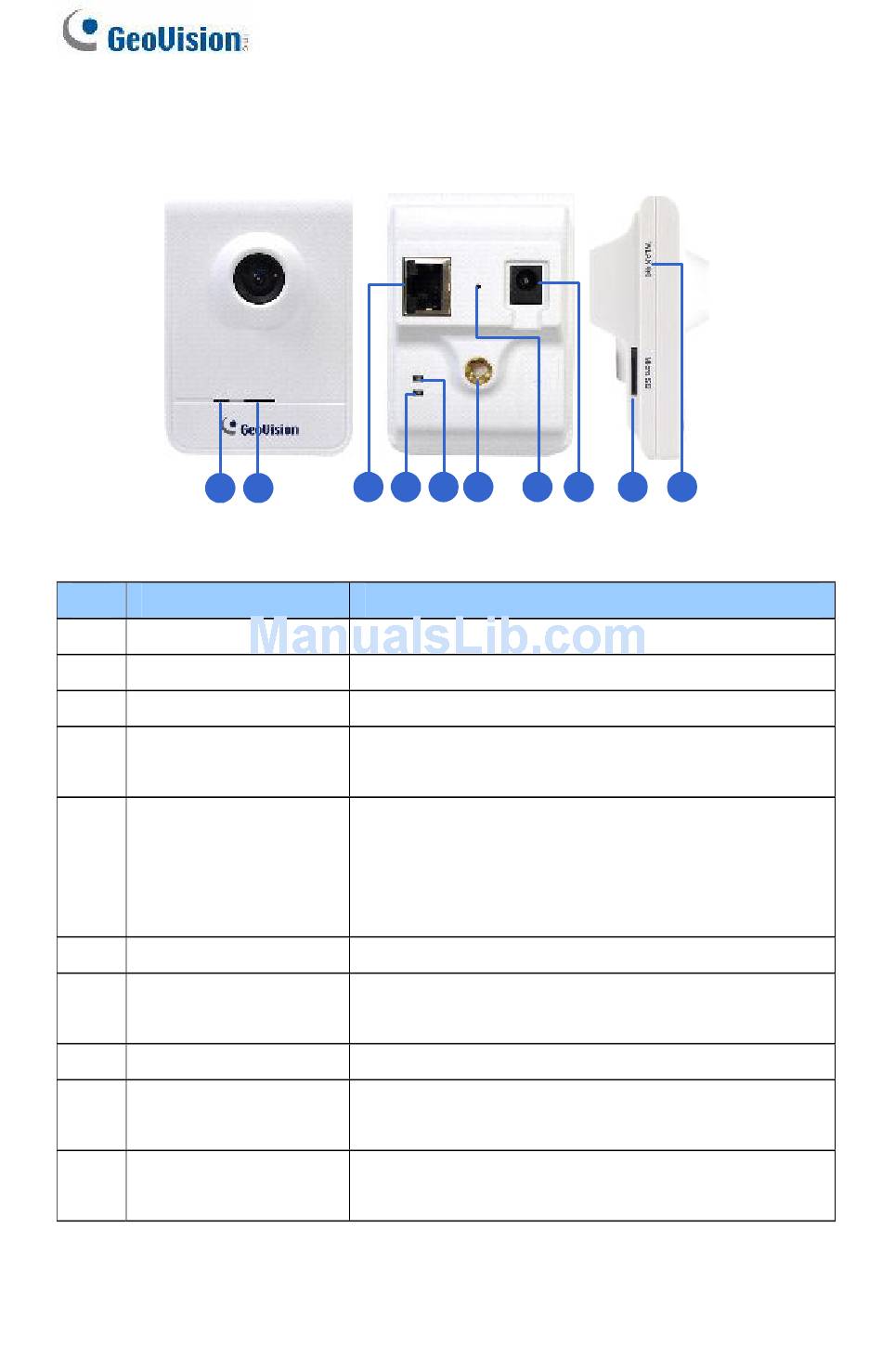

Figure 12-1
Description
Receives sounds.
Plays sounds.
Connects to a 10/100 Ethernet.
Turns red when the system powers on.
Turns orange when the system is ready.
Turns green when the camera is connected
to the Internet through wires. Turns blue
when wireless service is enabled (for GV-
CBW120 / 220 only).
Connects to the Supporting Rack.
Resets to factory default. For details, see
18.3. Restoring to Factory Default Settings.
Connects to the supplied power adapter.
Inserts a micro SD / SDHC / SDXC card to
store recording data.
Indicates that the camera supports wireless
connection (for GV-CBW120/220 only).
5 6 7 8 9 10
