5.14 Rotating the Coordinate Axes

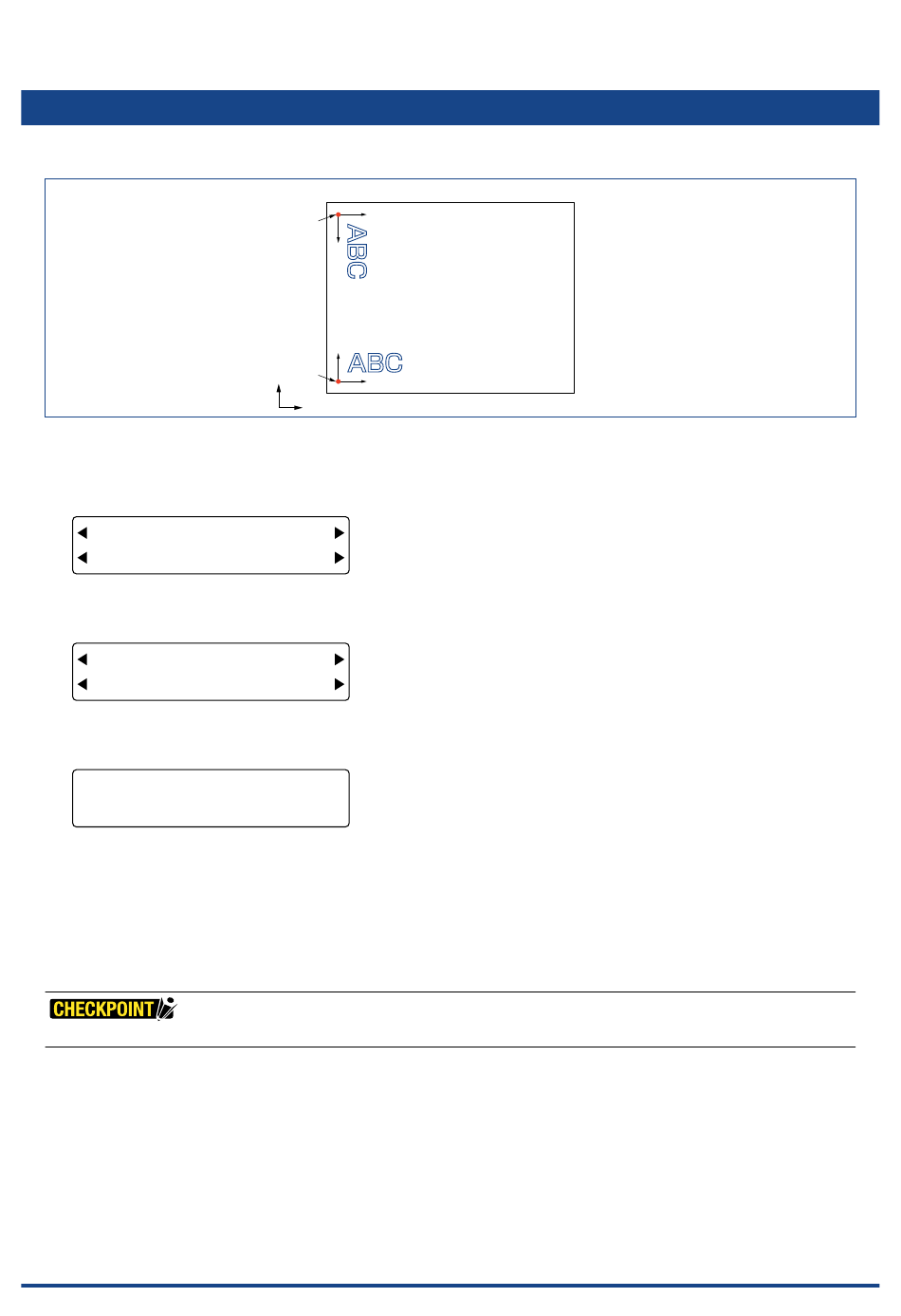

This function is used to move the origin and rotate the coordinate axes by 90° as shown in the figure below.
(1) Press the [PAUSE] key to select PAUSE mode.
(2) Press the [NEXT] key repeatedly until the following menu is displayed.
FORCE
I/F
TOOL COND AREA OPT
SPEED
(3) Press the [F4] key (AREA OPT) to display the menu shown below.
FORCE
ROTATE
L.L. U.R.
SPEED
(4) Press the [F1] key (ROTATE) to display the coordinate rotation setting screen.
FORCE
ROTATE
ON
SPEED
The current setting is indicated by a black dot [
To select ROTATE mode, press the [F2] key (ON).
To cancel ROTATE mode, press the [F4] key (OFF).
After you have selected the desired parameter, press the [ENTER] key to confirm your selection.
(5) Press the [PAUSE] key to cancel PAUSE mode.
This setting is retained in the plotter's internal memory even while the plotter is turned off.
Y
Origin in ROTATE mode
X
Coordinates when
ROTATE mode is selected (ON)
Y
Origin
Y
X
X
OFFSET
FUNCTION
QUALITY
OFFSET
MIRROR
SCALE
QUALITY
OFFSET
OFF•
QUALITY
Coordinates when
ROTATE mode is not selected (OFF)
•
].
Chapter 5 FUNCTION SETTINGS AND OPERATIONS
5-15
