5.14 Rotating the Coordinate Axes

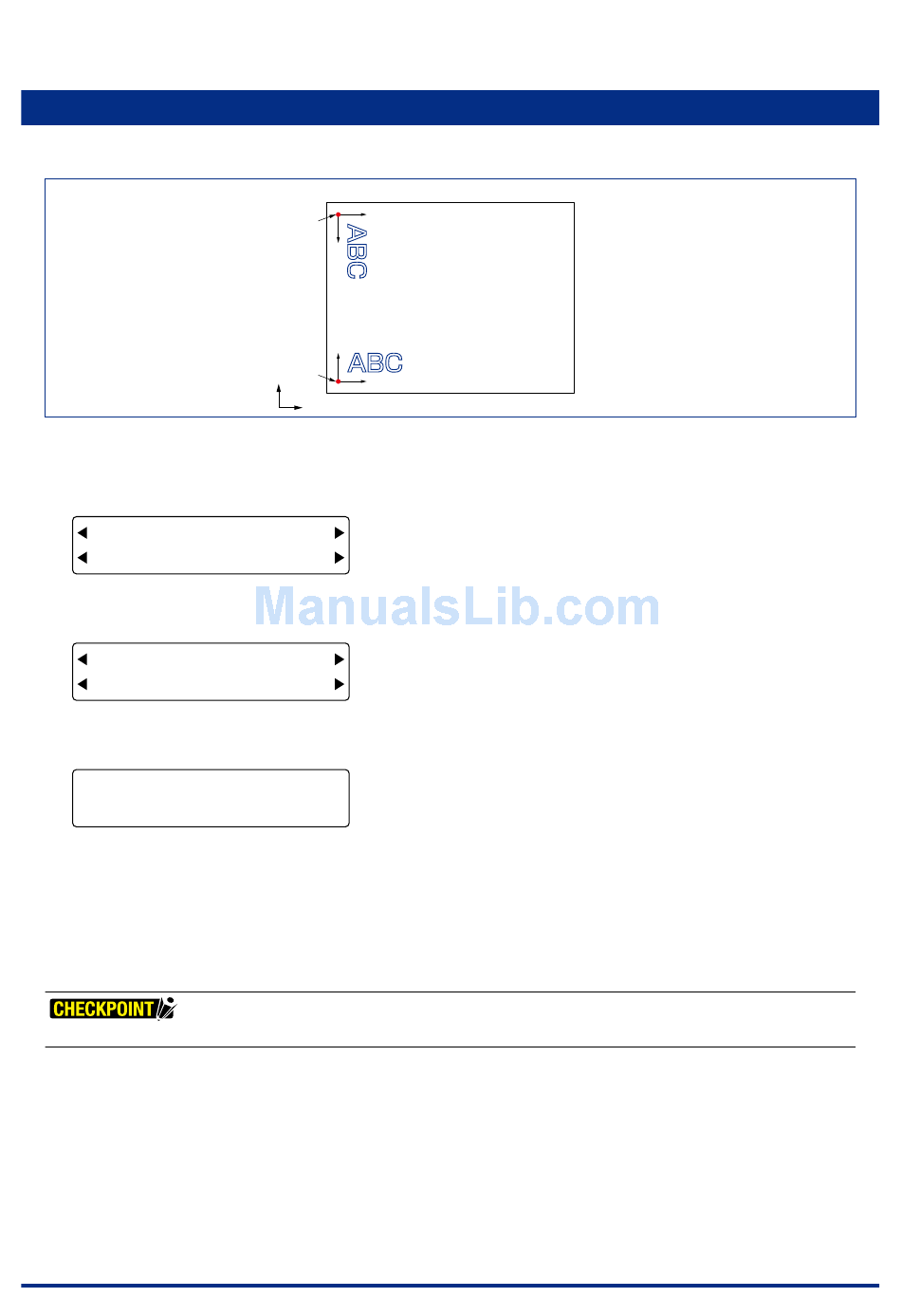

This function is used to move the origin and rotate the coordinate axes by 90° as shown in the figure below.
(1) Press the [PAUSE] key to select PAUSE mode.
(2) Press the [NEXT] key repeatedly untl the followng menu s dsplayed.
FORCE
I/F
TOOL COND AREA OPT
SPEED
(3) Press the [F4] key (AREA OPT) to dsplay the menu shown below.
FORCE
ROTATE
L.L. U.R.
SPEED
(4) Press the [F1] key (ROTATE) to dsplay the coordnate rotaton settng screen.
FORCE
ROTATE
ON
SPEED
The current settng s ndcated by a black dot [
To select ROTATE mode, press the [F2] key (ON).
To cancel ROTATE mode, press the [F4] key (OFF).
After you have selected the desred parameter, press the [ENTER] key to confirm your selection.
(5) Press the [PAUSE] key to cancel PAUSE mode.
This setting is retained in the plotter's internal memory even while the plotter is turned off.
