Chapter 6 Building the First Row Table Assembly
Parts List
Step 13 Attach one microphone to each table segment. There are three microphones for the first row table.
The center microphone cable for the first row table must be seated in the cable channel on the underside
of the center table segment in order to properly install the projector mounting bracket. You can use tape
to secure it in place.

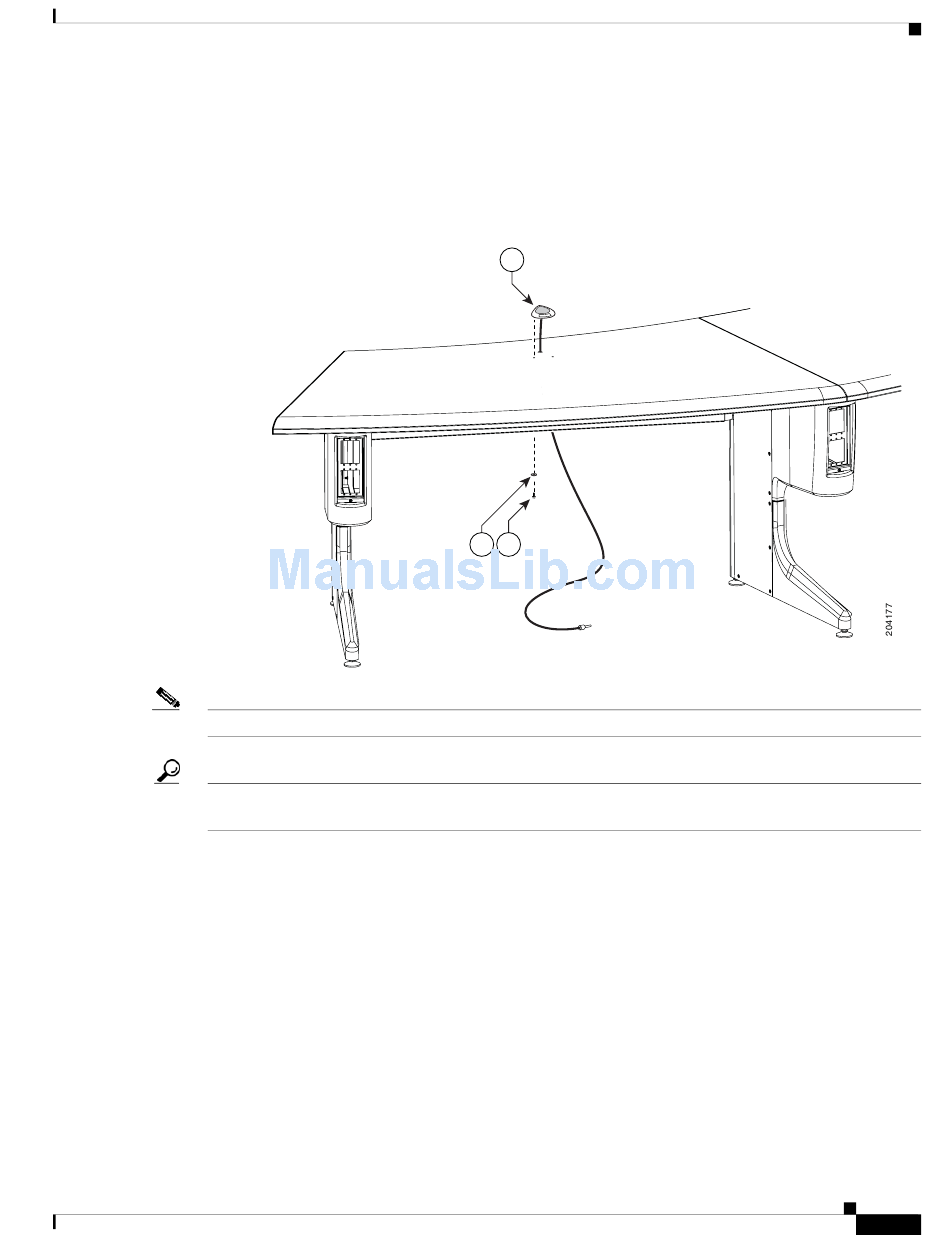

Figure 6-13 Microphone Assembly
26
28 27
Steps for routing the microphone cables are in Chapter 9, "Routing Power and Signal Cables."
Note
Label each microphone cable where it exits from the table. You attach the microphones to the
Tip
Audio/Video Expansion Unit in Chapter 9, "Routing Power and Signal Cables."
